5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
GV-HD700/HD700E_L2
Ref. No. Part No. Description Ref. No. Part No. Description
751 2-342-759-01 SPRING, RVS BRAKE
752 A-1083-005-A BRAKE BLOCK ASSY, RVS
753 2-342-731-01 POSITIONING (S)
754 A-1083-006-A BRAKE BLOCK ASSY, S
755 3-075-097-11 SCREW (M1.4X1.4), SPECIAL HEAD
756 X-2067-290-1 TABLE ASSY, S REEL
757 A-1132-279-A REGULATOR BLOCK ASSY, TENSION
758 2-342-705-01 GEAR (T), GL
759 2-342-902-01 SPRING, TENSION REGULATOR
760 X-2067-291-1 TABLE ASSY, T REEL
761 X-2067-295-4 ARM ASSY, PINCH
762 2-342-906-01 SPRING (PINCH RETURN), TORSION
763 2-342-626-01 SPRING (TG6 RETURN), EXTENSION
764 A-1083-002-A TG6 BLOCK ASSY
765 X-2024-468-1 ARM (S) ASSY, GL
766 X-2024-465-1 COASTER (S) ASSY
767 2-342-612-01 RAIL
768 3-703-816-13 SCREW (M1.4X2.0), SPECIAL HEAD
769 X-2024-466-1 COASTER (T) ASSY
770 X-2024-469-1 ARM (T) ASSY, GL
771 2-342-716-01 SPRING (T), GL TORSION COIL
772 3-703-816-08 SCREW (M1.4X1.4), SPECIAL HEAD
(for adjustment)

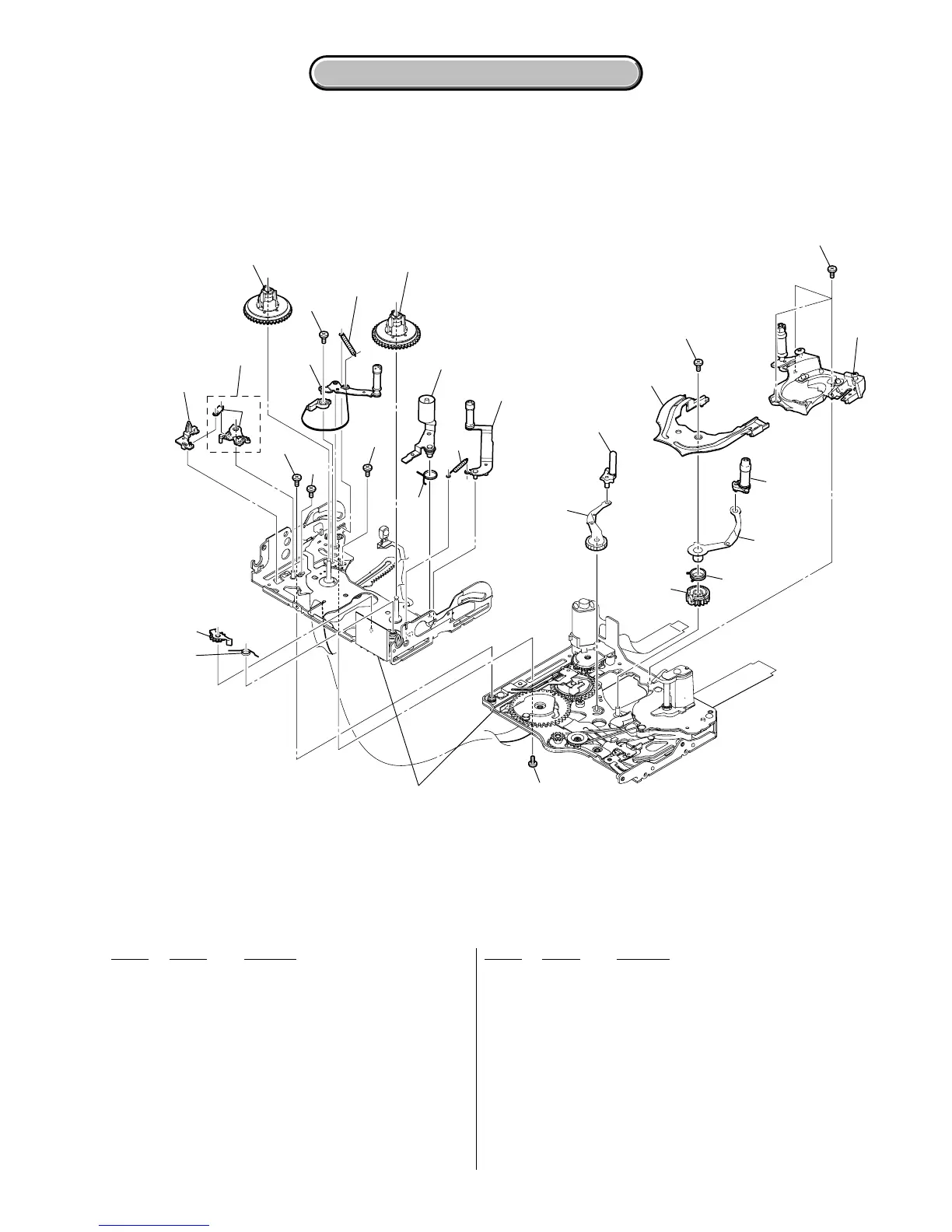

5-1-7. LS/MECHANICAL CHASSIS BLOCK ASSEMBLY-1
ns: not supplied
n
s
755
768
755
756
757
759
760
761
764
765
762
763
768
768
769
770
771
758
ns
752
753
754
751
766
767
LS / Mechanical chassis
block assembly-2
(See page 5-9)
Note: These two screws are the fixing screws of the LS cam plate.
These two fixing screws are used for adjsting the LS cam plate position.
(Refar to 4-2. LS cam adjustment of DV mechanical adjustment manual IX)
772
(Note)
772
(Note)
