1-2
DCR-HC17E/HC19E/HC21/HC21E/HC22E/HC32/HC32E/HC33/HC33E
1-4. SELF-DIAGNOSIS FUNCTION
1-4-1. Self-diagnosis Function
When problems occur while the unit is operating, the self-diagnosis
function starts working, and displays on the viewfinder or LCD
screen what to do. This function consists of two display; self-
diagnosis display and service mode display.
Details of the self-diagnosis functions are provided in the Instruction
manual.
1-4-2. Self-diagnosis Display
When problems occur while the unit is operating, the counter of the
viewfinder or LCD screen shows a 4-digit display consisting of an
alphabet and numbers, which blinks at 3.2 Hz. This 5-character
display indicates the “repaired by:”, “block” in which the problem
occurred, and “detailed code” of the problem.
1 1
3 1C
Repaired by:
Refer to “1-4-3. Self-diagnosis Code Table”.
Indicates the appropriate
step to be taken.
E.g.
31 ....Reload the tape.
32 ....Turn on power again.
Block
Detailed Code
Blinks at 3.2Hz
C : Corrected by customer
H : Corrected by dealer
E : Corrected by service
engineer
Viewfinder or LCD screen
C : 3 1 : 1 1

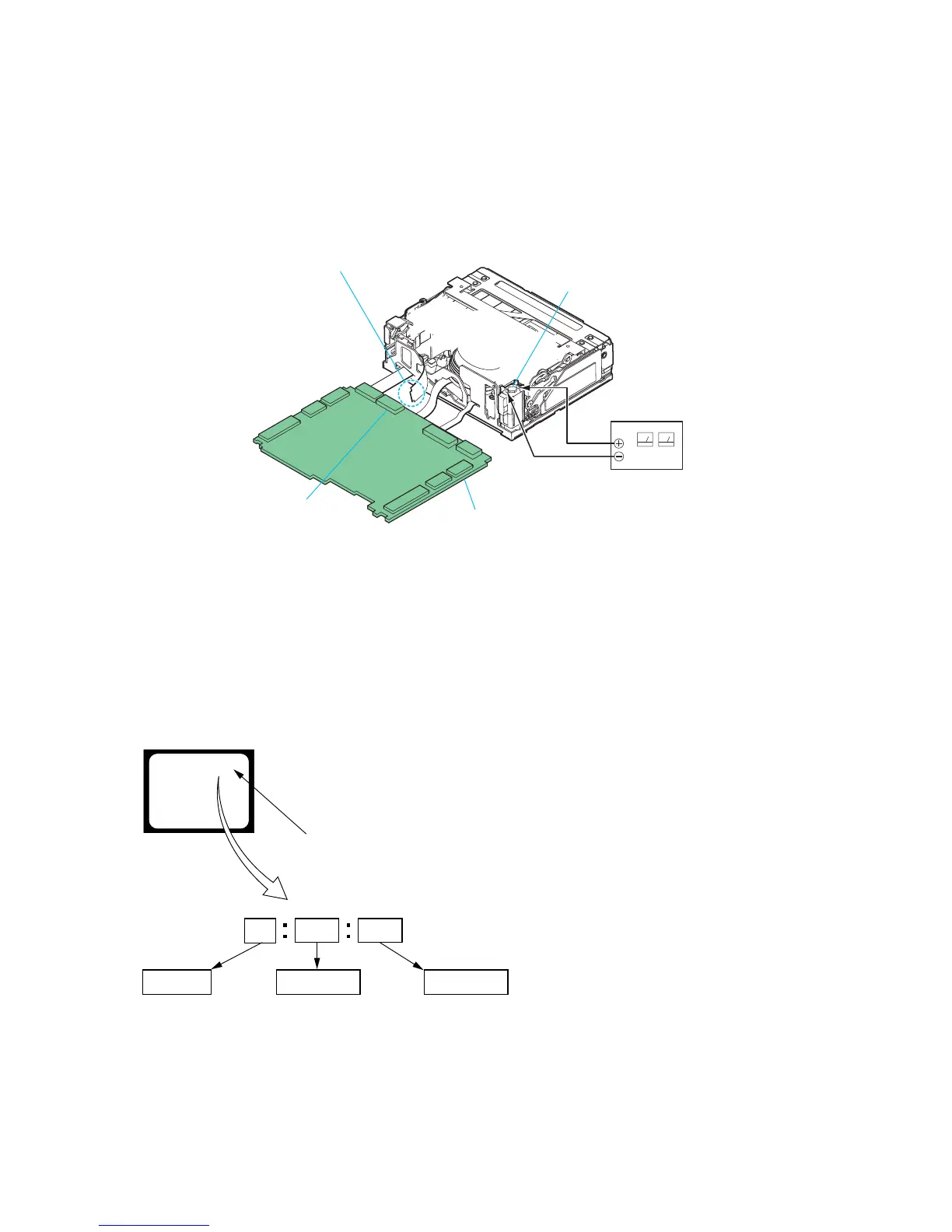

1-3. TO TAKE OUT A CASSETTE WHEN NOT EJECT (FORCE EJECT)
1 Refer to “2. DISASSEMBLY” to remove the mechanism deck block.
2 Disconnect the CN9002 of VC-376 board (NON MS model) or CN6002 of VC-377 board (MS model).
3 Supply +4.5V from the DC power supply to the loading motor and unload with a pressing the cassette compartment.
NON MS model: DCR-HC17E/HC19E/HC21/HC21E/HC22E
MS model: DCR-HC32/HC32E/HC33/HC33E
VC-376/VC-377 board
DC power supply (+4.5Vdc)
Loading motor
Disconnect the CN9002 of VC-376 board (NON MS model)
or CN6002 of VC-377 board (MS model).
CN9002 (NON MS model)/
CN6002 (MS model)
To Next Page
