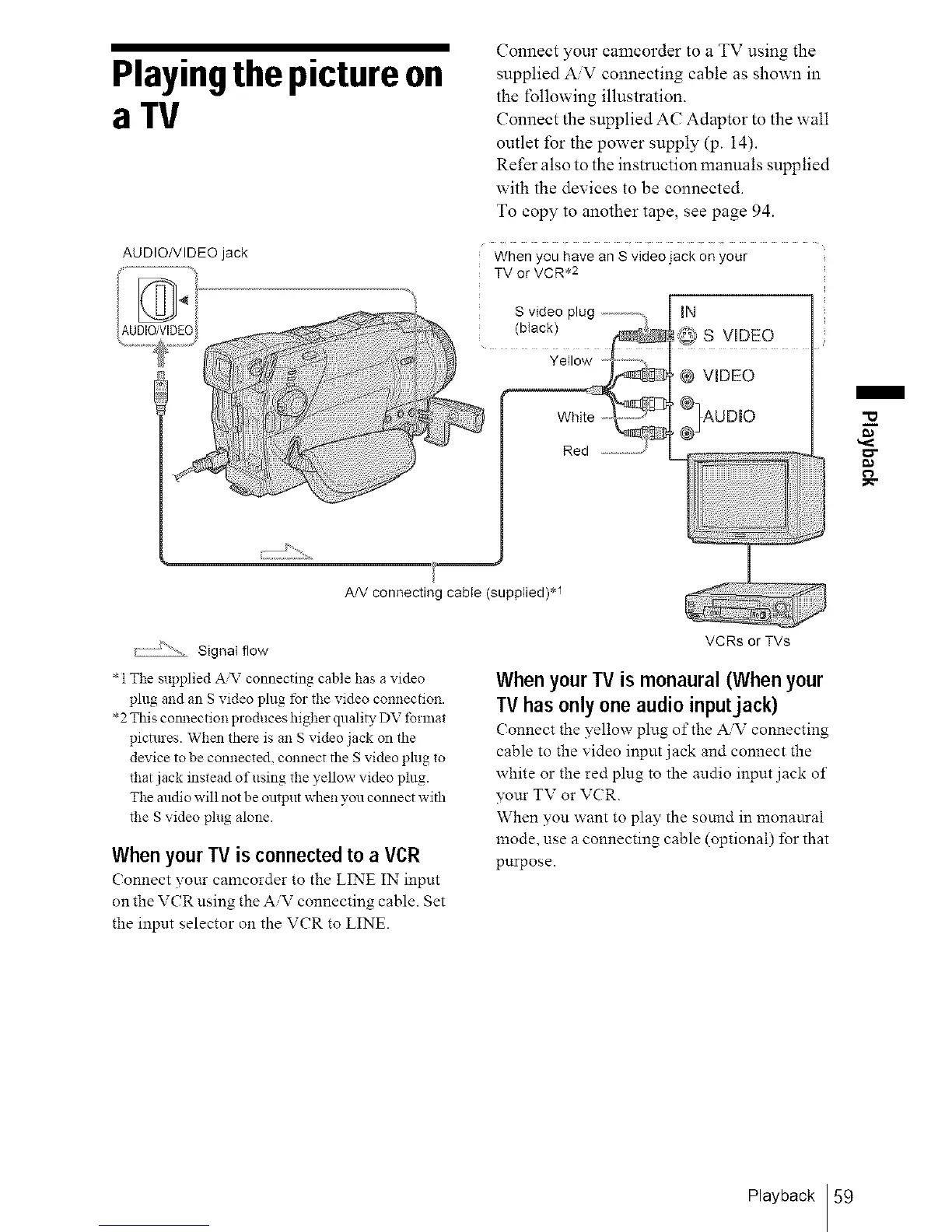

Playingthe pictureon
a TV
Connect your camcorder to a TV using the
supplied AiV connecting cable as shown in
the following illustration.
Connect the supplied AC Adaptor to the wall
outlet for the power supply (p. 14).
Refer also to the instruction manuals supplied
with the devices to be connected.
To copy to another tape, see page 94.
AUDIO/VIDEO jack
When you have an S video jack on your
TV or VCR.2
IN
@ VIDEO
_)UD'O
i
A/V connecting cable (supplied) .1
m
-u
Signal flow
*1Tile supplied A/\" connecting cable has a video
plug and an S video plug tbr file video connection.
*2This cotmection produces higher quality DV format
pictures. When there is an S video jack on the
device to be connected, connect the S video plug to
that jack instead of using the yellow video plug.
The andio will not be output when you connect with
the Svideo plug alone.
Whenyour TV is connectedto a VCR
Connect your camcorder to the LINE IN input
on the VCR using the AV connecting cable. Set
the input selector on the VCR to LINE.
VCRs or TVs
WhenyourTV is monaural(When your
TVhasonly oneaudio inputjack)
( onnect the yellow plug of the AV connecting
cable to the video input jack and connect the
white or the red plug to the audio input jack of
your TV or VCR.
When you want to play the sound in monanral
mode, use a connecting cable (optional) lbr that
purpose.
Playback 59
