HCD-F200/F500

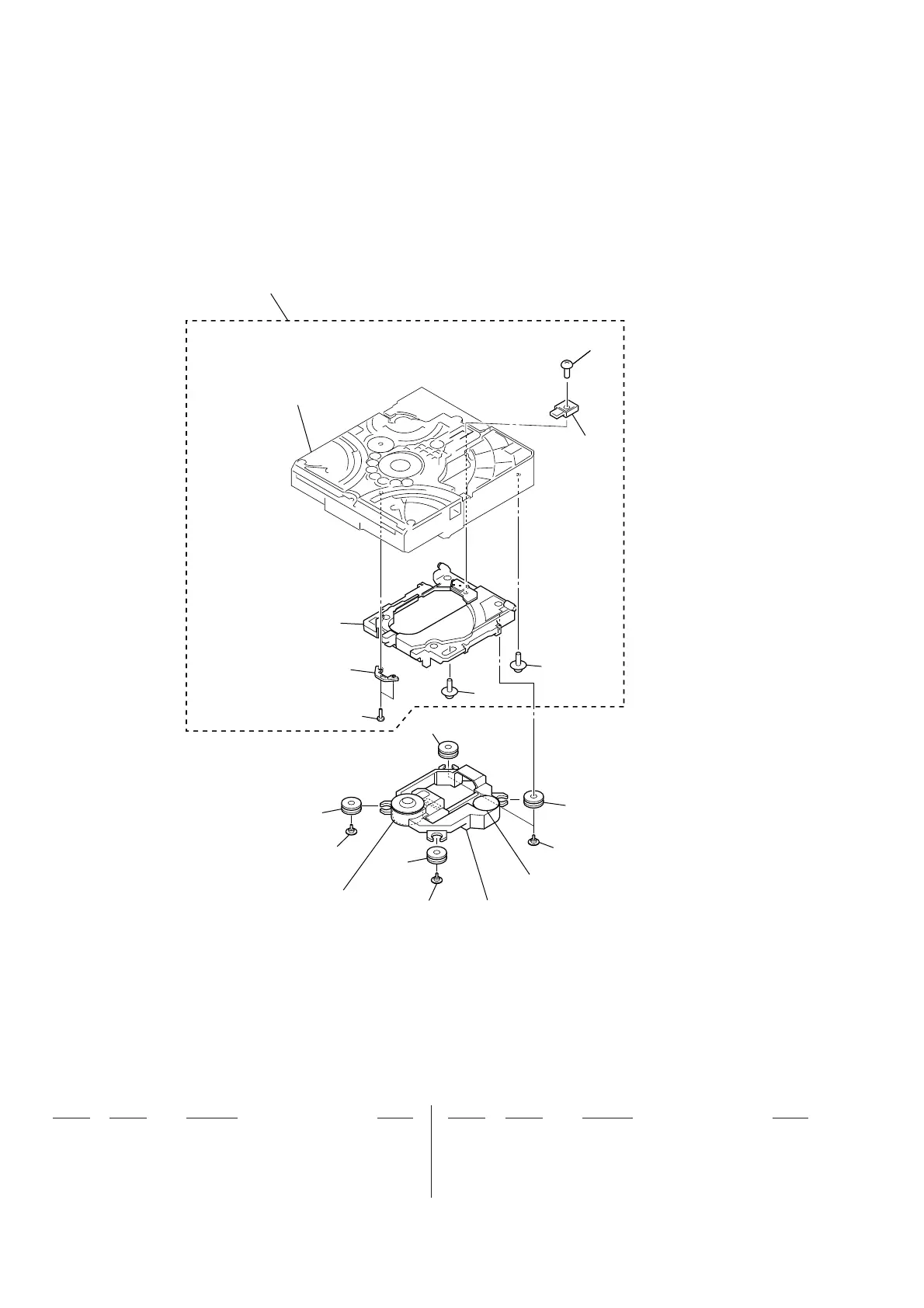

7-5. DVD MECHANISM DECK SECTION-1
(CDM86-DVBU101)
251 4-245-639-01 LEVER (CL UP2)
252 3-087-599-01 INSULATOR SCREW
253 3-088-752-01 FLOATING SCREW (+PTPWH M2.6)
254 2-634-618-01 INSULATOR
255 2-023-068-01 TAPPING +B 2.6X8
256 A-1114-646-A MD (AU) ASSY
0 257 8-820-322-04 OPTICAL PICK-UP BLOCK (KHM-313CAB/C2RP)
(Including sled motor, spindle motor)
259 2-023-066-01 TAPPING +B 2X6
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
253
253
259
252
252
254
254
257
(including sled motor, spindle motor)
254
254
252
not supplied
not supplied
not supplied
(spindle motor)
not supplied
(sled motor)
DVD mechanism deck section-2
255
256
251
To Next Page
