HCD-GN1000D

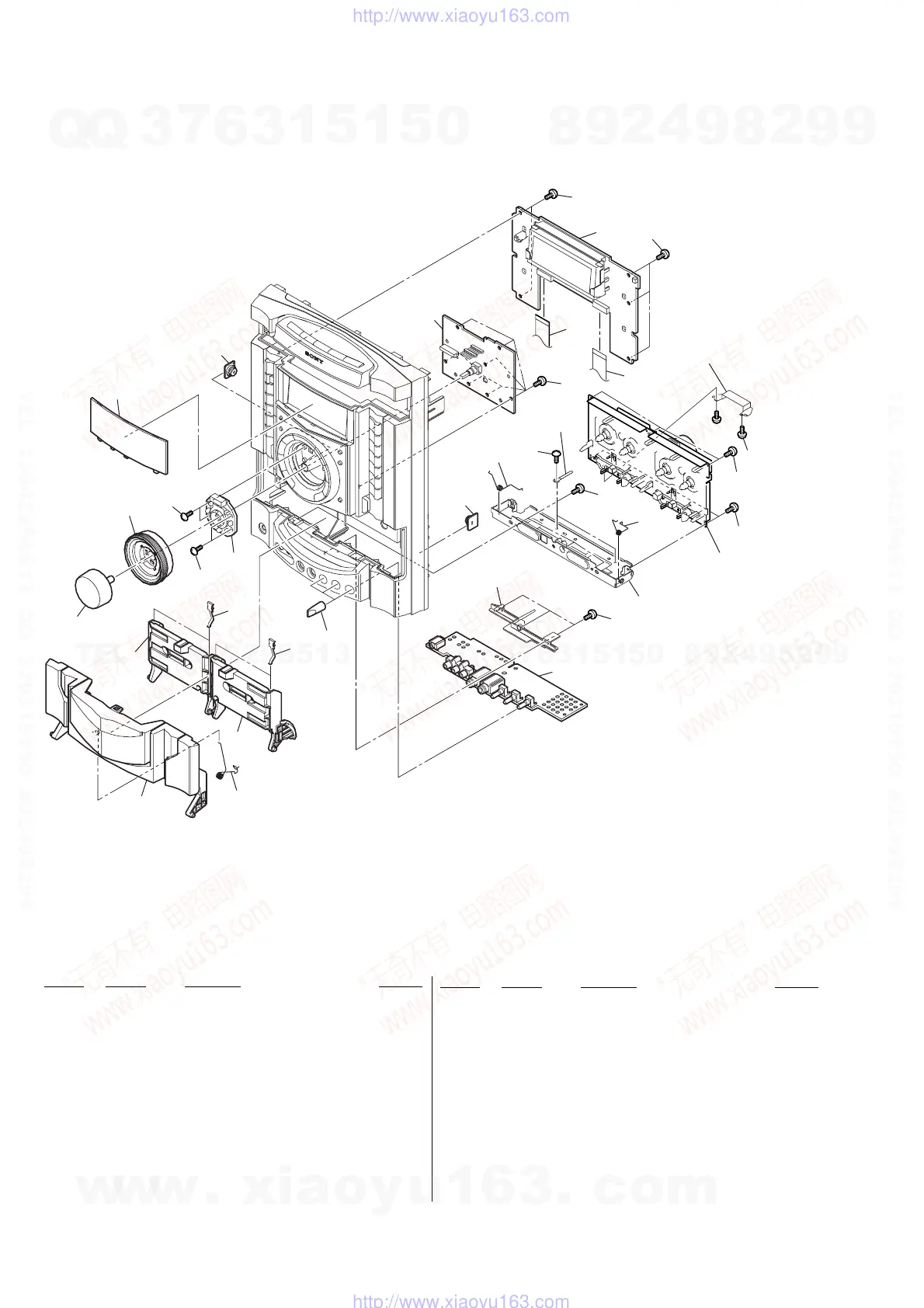

8-2. FRONT PANEL SECTION-1
51 2-655-724-11 LID (TC)
52 2-655-732-01 SPRING (LID)
53 4-252-579-11 HOLDER TC-R
54 4-252-578-11 HOLDER TC-L
55 4-959-229-11 DETENT, CASSETTE
56 4-224-578-31 KNOB (MIC)
57 4-252-575-01 KNOB VOL
58 X-2103-230-1 KNOB JOG ASSY
59 3-087-053-01 +BVTP2.6 (3CR)
60 A-1156-244-A JOG BOARD, COMPLETE
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
61 2-655-717-01 WINDOW (FL)
62 4-224-104-11 DAMPER
63 A-1156-227-A FUNCTION BOARD, COMPLETE
64 A-1178-730-A PANEL BOARD, COMPLETE
65 1-828-991-11 WIRE (FLAT TYPE) (17 CORE) (100mm)
66 3-077-331-21 +BV3 (3-CR)
67 1-417-658-11 MECHA DECK (CWN42RR603)
68 2-655-734-01 SPRING (R)
69 2-655-733-01 SPRING (L)
70 A-1174-047-A MIC BOARD, COMPLETE
#5 7-685-853-01 SCREW +BVTT 2X6 (S)
