Sony hcd-gn1000d - Case; Loading Panel

8
HCD-GN1000D

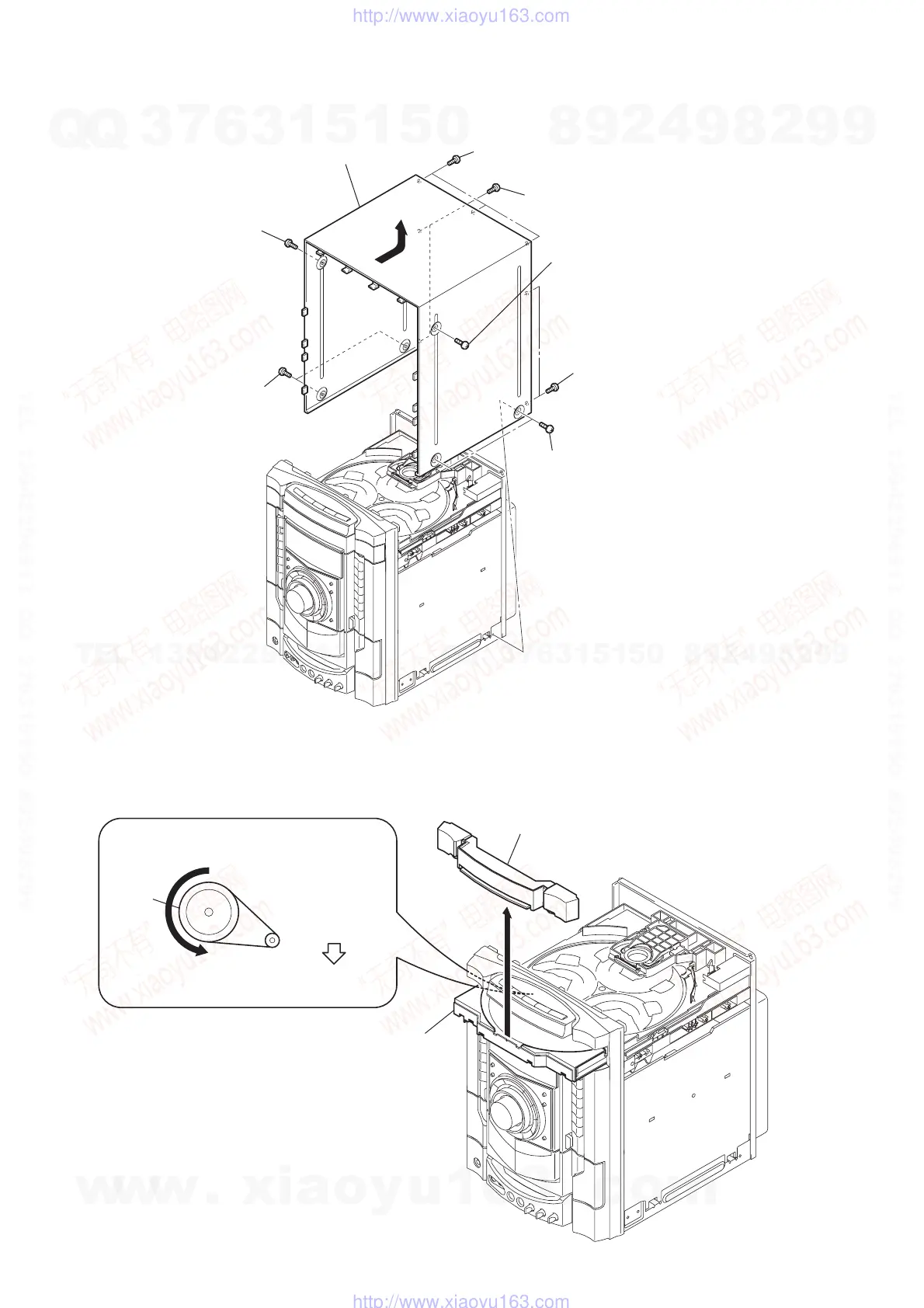

3-2. CASE
3-3. LOADING PANEL
1 two screws
(case 3 TP2)
(3
× 8)
2 screw (case 3 TP2
)
(3 × 12)
5 two screws
(+BVTP 3
× 12)
8
3
two screws
(case 3 TP2)
(3 × 8)
4 screw
(case 3 TP2)
(3 × 12)
7 three screws
(+BVTP 3 × 8)
6 two screws
(+BVTP 3 × 12)
9 CASE
DVD mechanism deck (CDM74HF-DVBU101)
1 Turn the pulley to the arrow direction.
Front side
Pulley
2 Pull out disc tray.
3
4
loading panel
