HCD-GTR333/GTR555/GTR777/GTR888
7

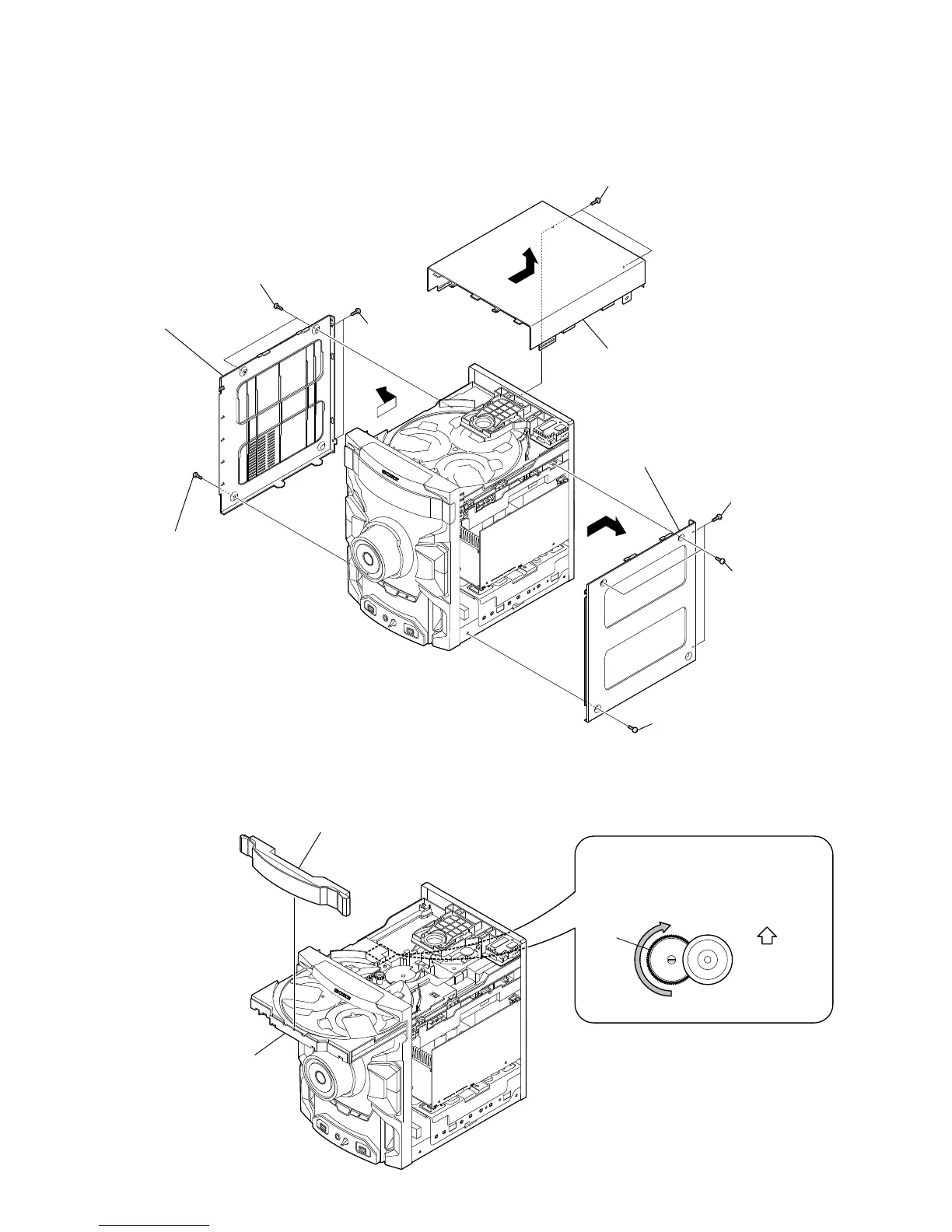

2-3. LOADING PANEL
Note: Follow the disassembly procedure in the numerical order given.
2-2. CASE
gear
chassis side
CD mechanism deck (CDM74KF)
By using (-) screw driver
1 Turn the gear to the direction of the arrow.
(The location of this gear pulley is at the
bottom side of the CDM)
3 panel, loading
2 Pull-out the disc tray
1 one screw
(+BVTP 3 u 14)
1 one screw
(+BVTP 3 u 14)
2 two screws
(+BVTP 3 u 14)
2 two screws
(+BVTP 3 u 14)
6 two screws
(+BVTP 3 u 14)
3 two screws
(+BVTP 3 u 14)
3 two screws
(+BVTP 3 u 14)
5 panel, side (R)
8 panel, top
5 panel, side (L)
4
4
7
Ver. 1.1
