Sony HCD-GTR333 - Back Panel Section

74
HCD-GTR333/GTR555/GTR777/GTR888

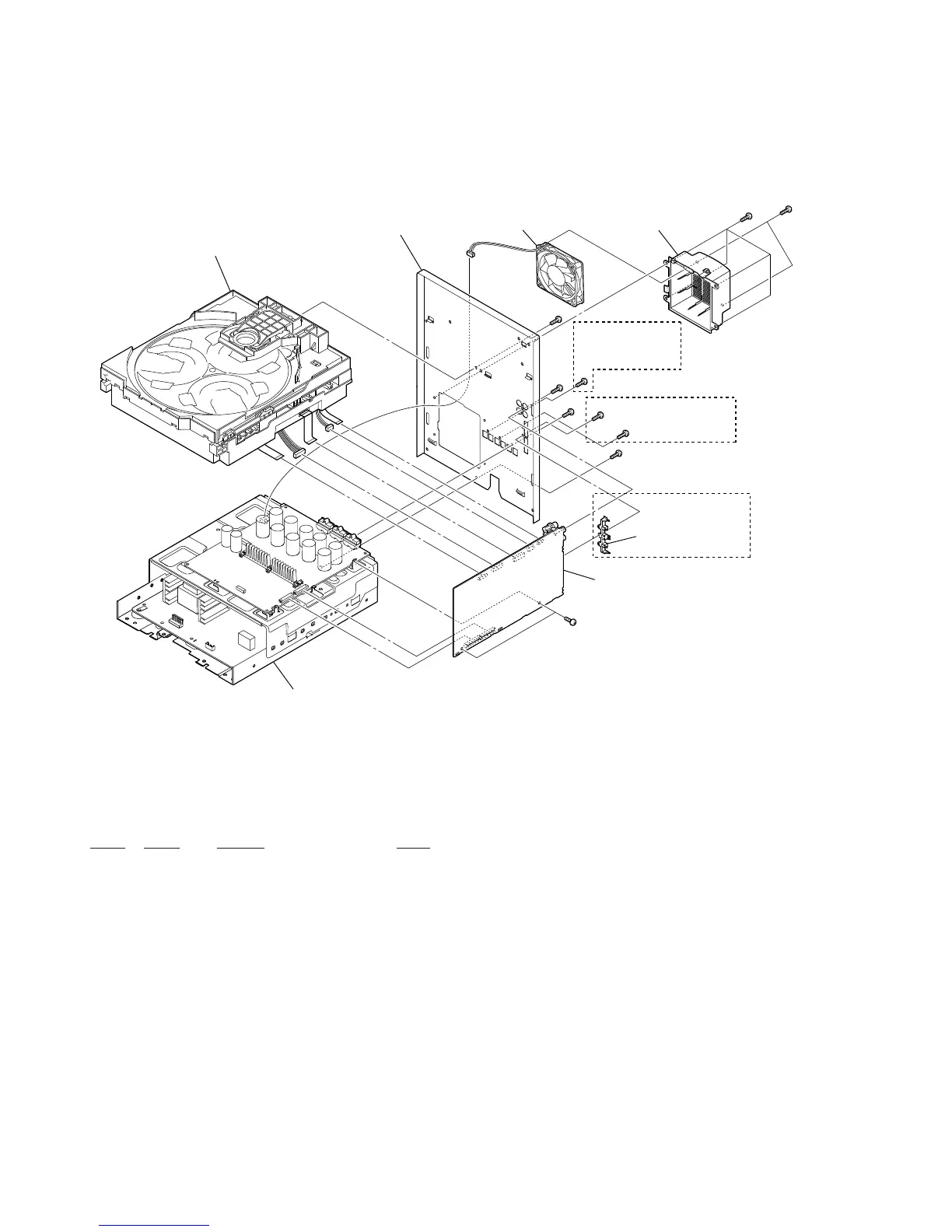

6-3. BACK PANEL SECTION
Ref. No. Part No. Description Remark
101 A-1803-282-A MAIN BOARD, COMPLETE (HCD-GTR555)
101 A-1803-292-A MAIN BOARD, COMPLETE
(HCD-GTR333: E2, E51, MX, AR)
101 A-1803-294-A MAIN BOARD, COMPLETE (HCD-GTR777)
101 A-1803-296-A MAIN BOARD, COMPLETE (HCD-GTR888)
0 102 1-855-006-11 FAN, DC
103 4-265-803-01 COVER, FAN
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
not supplied
not supplied
chassis section
102
101
103
#2
#2
#1
#1
#2
#2
#1
#1
#1
#1
CD mechanism section (1)
(for HCD-GTR555/
HCD-GTR777/
HCD-GTR888)
(for HCD-GTR777/
HCD-GTR888)
(for HCD-GTR777/
HCD-GTR888)
Ver. 1.1
