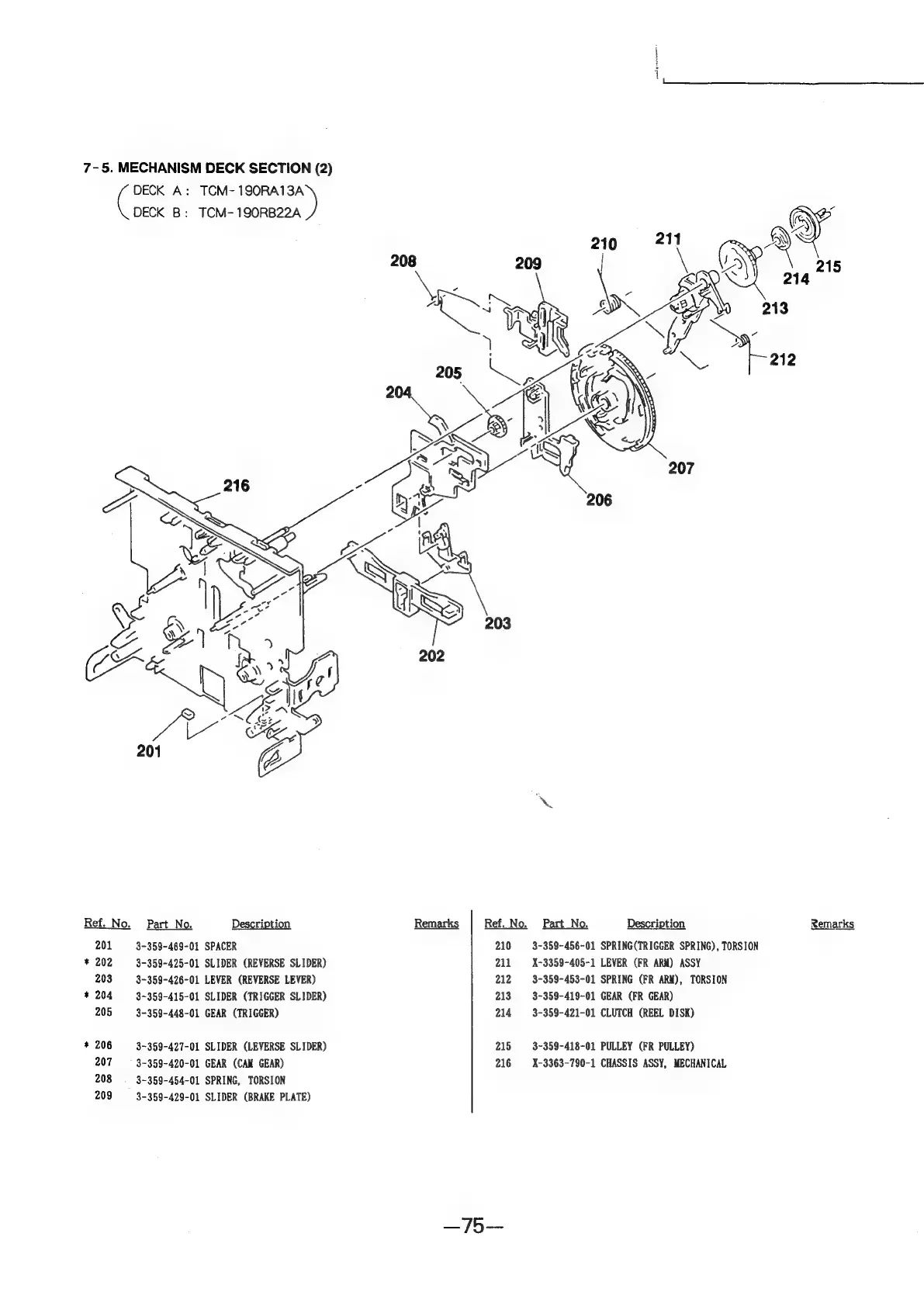

7-5. MECHANISM DECK SECTION (2)
Gas A: TCM- eines
DECK B: TCM-190RB22A
Ref. No. Part No.
Description
201 3-359-469-01 SPACER
* 202 3-359-425-01 SLIDER (REVERSE SLIDER)
203 3-359-426-01 LEVER (REVERSE LEVER)
* 204 3-359-415-01 SLIDER (TRIGGER SLIDER)
205 3-359-448-01 GEAR (TRIGGER)
* 206 3-359-427-01 SLIDER (LEVERSE SLIDER)
207 — 3-359-420-01 GEAR (CAM GEAR)
208 — 3-359-454-01 SPRING, TORSION
209 == 3-359-429-01 SLIDER (BRAKE PLATE)
Remarks | Ref. No.
210
211
212
213
214
215
216
—75—
Part No. Description Remarks
3-359-456-01 SPRING(TRIGGER SPRING), TORSION
X-3359-405-1 LEVER (FR ARM) ASSY
3-359-453-01 SPRING (FR ARM), TORSION
3-359-419-01 GEAR (FR GEAR)
3-359-421-01 CLUTCH (REEL DISK)
3-359-418-01 PULLEY (FR PULLEY)
X-3363-790-1 CHASSIS ASSY, MECHANICAL
