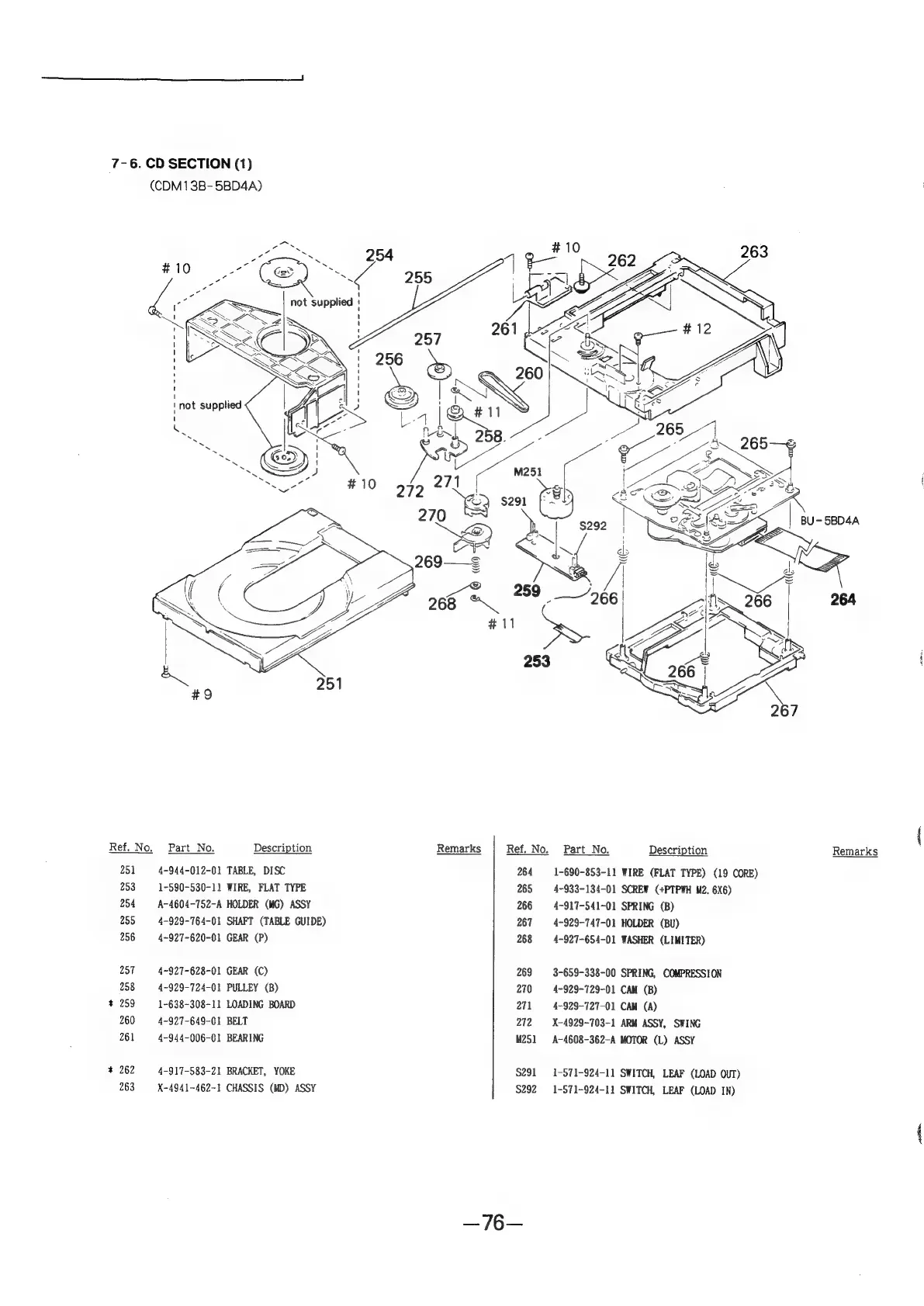

Sony HCD-H170 - CD Section (1) Exploded View

7-6. CD SECTION (1)
CDM13B-5BD4A)
¢
PX
-/
porrcctetcsccce
Remarks
Ref. No.
BU-5BD4A
3
4
Ref. No. Part No. Description
251 4-944-012-01 TABLE, DISC
253 1-590-530-11 WIRE, FLAT TYPE
254 A-4604-752-A HOLDER (MG) ASSY
255 4-929-764-01 SHAFT (TABLE GUIDE)
256 4~927-620-01 GEAR (P)
257 4~927-628-01 GEAR (C)
258 4-929-724-01 PULLEY (B)
* 259 1-638-308-11 LOADING BOARD
260 4-927-649-01 BELT
261 4-944-006-01 BEARING
* 262 4-917-583-21 BRACKET, YOKE
263 X-4941-462-1 CHASSIS (MD) ASSY
264
265
266
267
268
269
270
271
272
M251
$291
$292
—76—
TS 266 264
le
aS
: <5
Part No. Description Remarks
1-690-853-11 WIRE (FLAT TYPE) (19 CORE)
4-933-134-01 SCREW (+PTPWH M2. 6X6)
4-917-541-01 SPRING (B)
4-929-747-01 HOLDER (BU)
4-927-654-01 WASHER (LIMITER)
3-659-338-00 SPRING, COMPRESSION
4-929-729-01 CAM (B)
4-929-727-01 CAM (A)
X-4929-703-1 ARM ASSY, SWING
A-4608-362-A MOTOR (L) ASSY
1-571-924-1] SWITCH, LEAF (LOAD QUT)
1-571-924-11 SWITCH, LEAF (LOAD IN)
