Sony HCD-H170 - EXPLODED VIEWS; CD Section (2) Exploded View

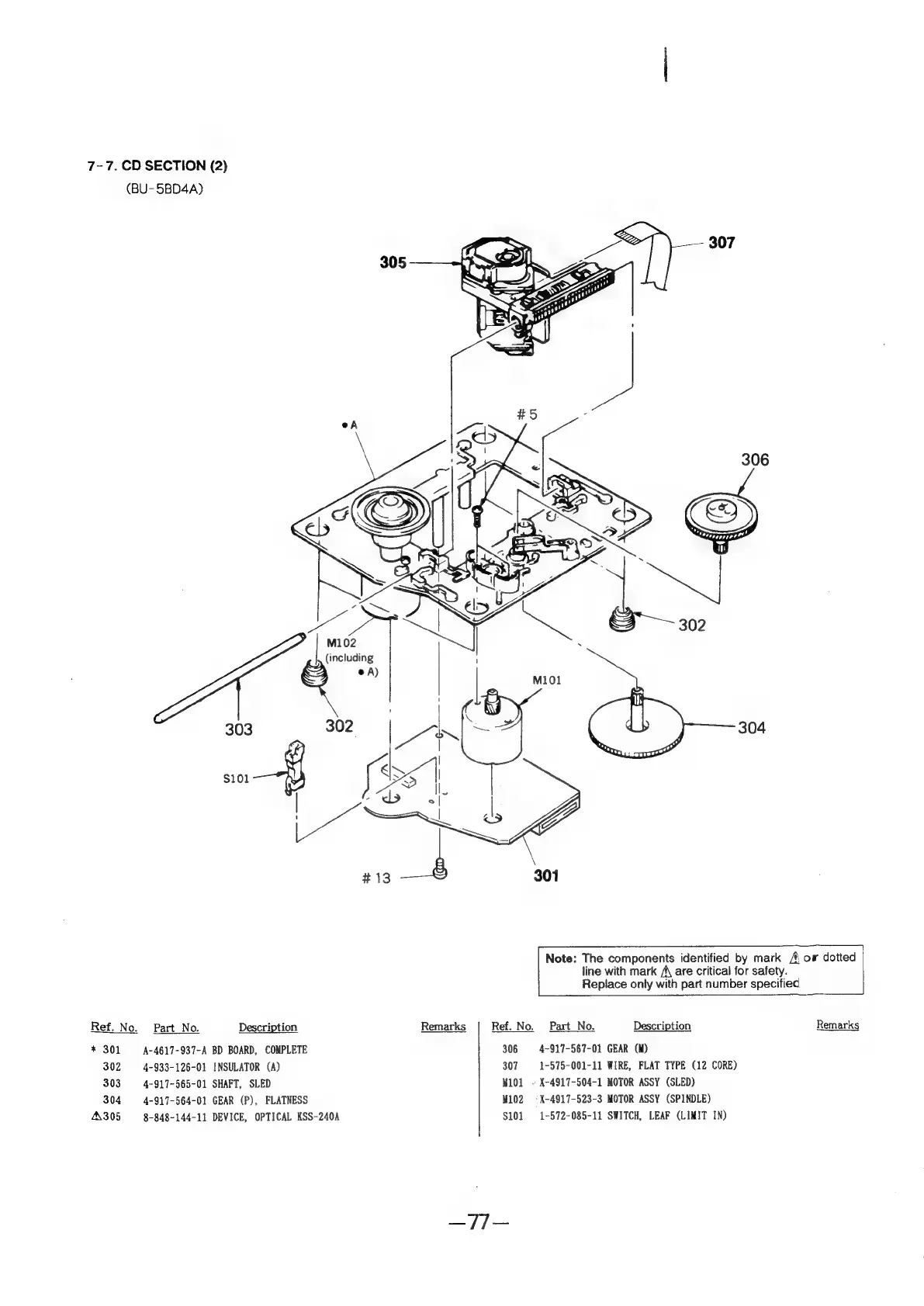

7-7. CD SECTION (2)
(BU-5BD4A)
306
ee 302
M102
(including
@A)
303 304
$101
#13 301
Note: The components identified by mark /, or dotted
line with mark A\ are critical for safety.
Replace only with part number specified
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
* 301 A-4617-937-A BD BOARD, COMPLETE 306 4-917-567-01 GEAR (N)
302 4-933-126-01 INSULATOR (A) 307 1-575-001-11 WIRE, FLAT TYPE (12 CORE)
303 4-917-565-01 SHAFT, SLED M101 © X-4917-504-1 MOTOR ASSY (SLED)
304 4-917-564-01 GEAR (P), FLATNESS M102 © X-4917-523-3 MOTOR ASSY (SPINDLE)
A305 8-848-144-11 DEVICE, OPTICAL KSS-240A $101 1-572-085-11 SWITCH, LEAF (LIMIT IN)
