HCD-H7/H1500 |

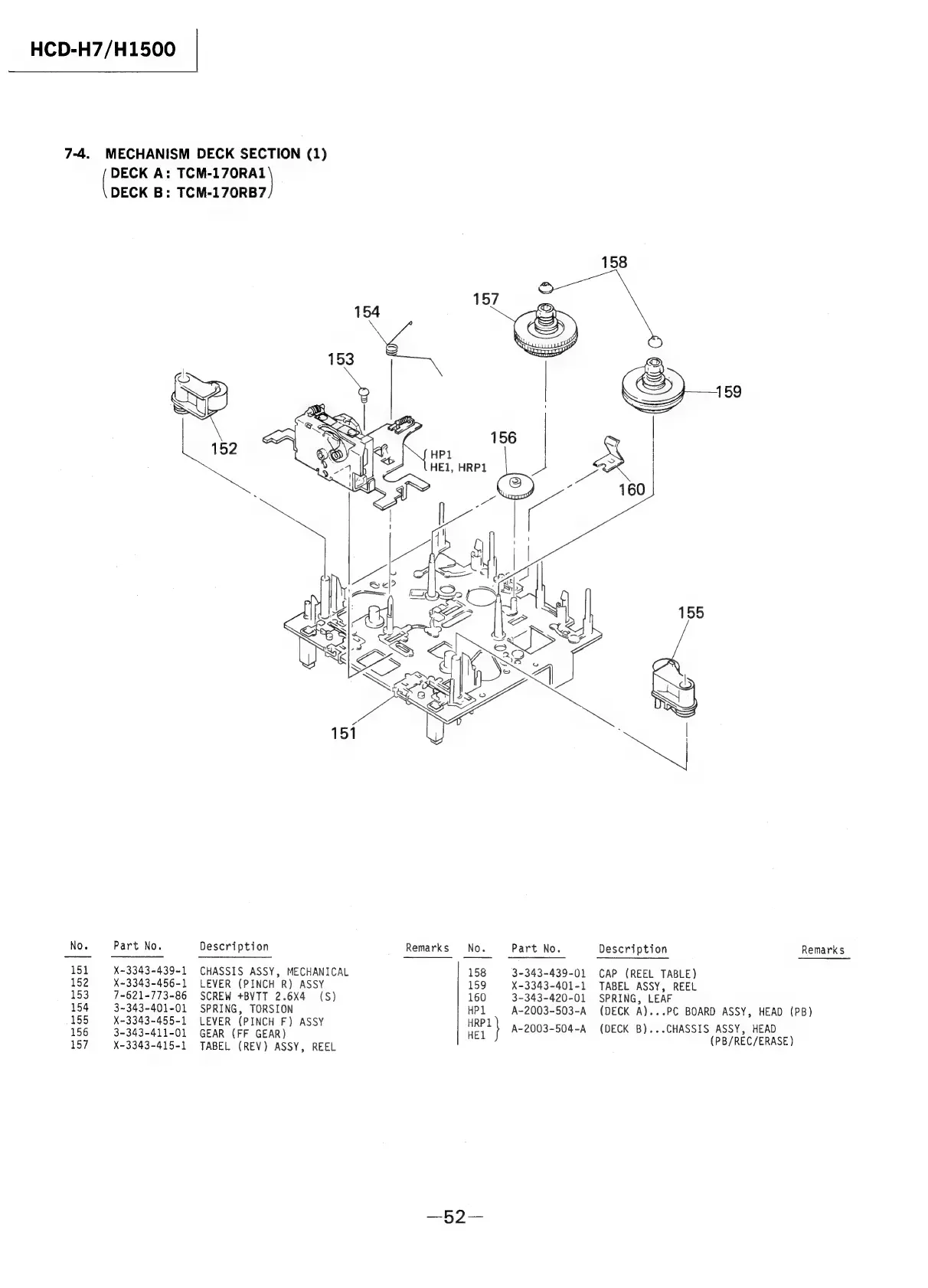

7-4. MECHANISM DECK SECTION (1)
Reeee A: eet)
DECK B: TCM-170RB7
No. Part No. Description
151 X~3343-439~1 CHASSIS ASSY, MECHANICAL
152 X-3343-456-1 LEVER (PINCH R) ASSY
153 7-621-773-86 SCREW +BVTT 2.6X4 (S)
154 3-343-401-01 SPRING, TORSION
155 X-3343-455-1 LEVER (PINCH F) ASSY
156 3-343-411-01 GEAR (FF GEAR)
157 X-3343-415-1 TABEL (REV) ASSY, REEL
Remarks No.
158
159
160
HP 1
HRP 1
HEL
} A-2003-504-A
158
Description Remarks
CAP (REEL TABLE)
TABEL ASSY, REEL
SPRING, LEAF
(DECK A)...PC BOARD ASSY, HEAD (PB)
(DECK B)...CHASSIS ASSY, HEAD
(PB/REC/ERASE)
