HCD-H7/H1500

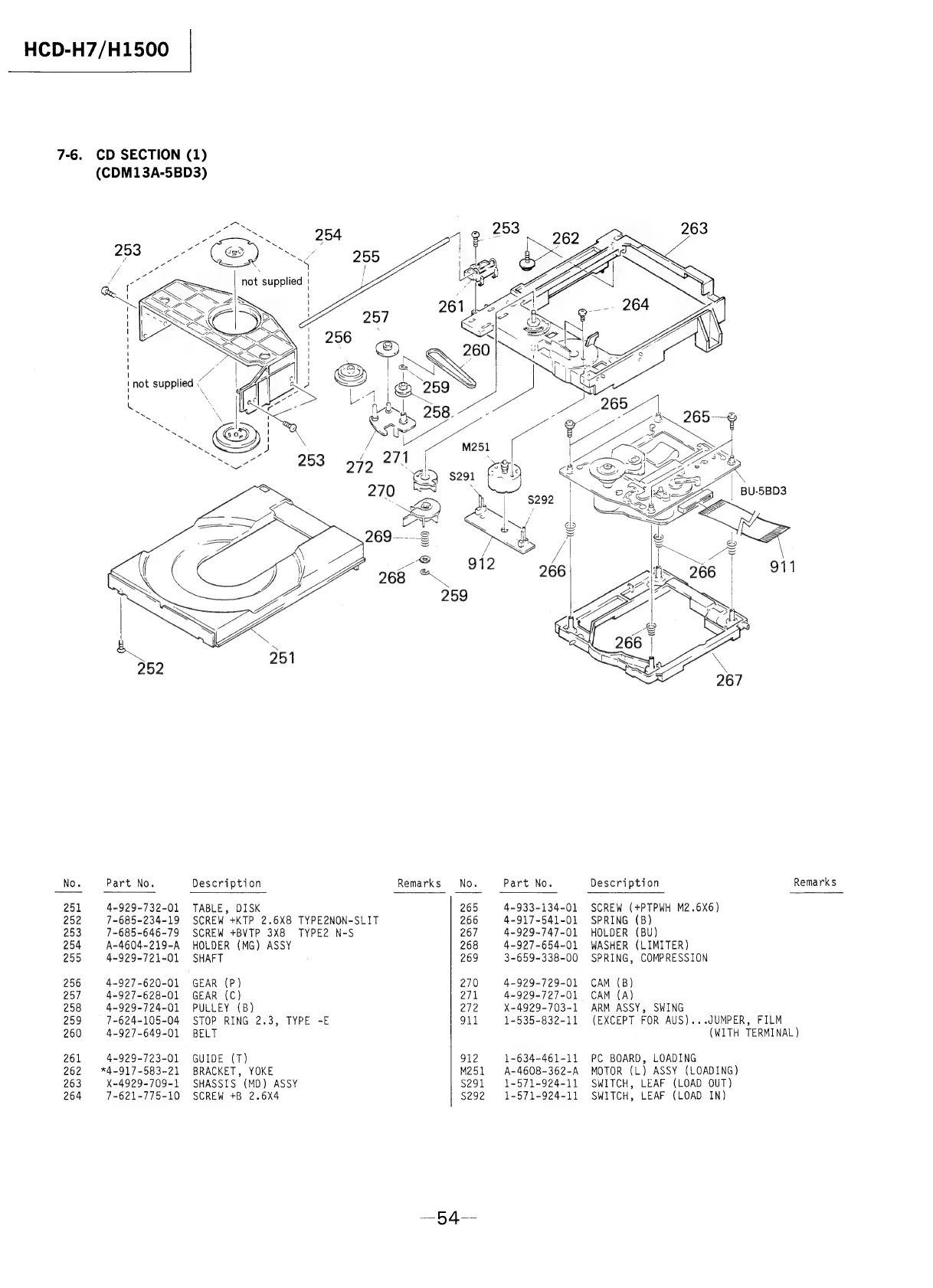

7-6. CD SECTION (1)
(CDM13A-5BD3)
253 -
a
/ 7
Fs -
Pa
Pa
“
porcrccccctcs
coe
r
~
of ~~
“ ~
“ ~
“ ~“
“ ~ i
fon ~
a N :
~
not supplied
No. Part No. Description Remarks No. Part No. Description Remarks
251 4-929-732-01 TABLE, DISK 265 4-933-134-01 SCREW (+PTPWH M2.6X6)
252 7-685-234-19 SCREW +KTP 2.6X8 TYPE2NON-SLIT 266 4-917-541-01 SPRING (B)
253 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S 267 4-929-747-01 HOLDER (BU)
254 A-4604-219-A HOLDER (MG) ASSY 268 4-927-654-01 WASHER (LIMITER)
255 4~929-721-01 SHAFT 269 3-659-338-00 SPRING, COMPRESSION
256 4-927-620-01 GEAR (P) 270 4-929-729-01 CAM (B)
257 4-927-628-01 GEAR (C) 271 4-929-727-01 CAM (A)
258 4-929-724-01 PULLEY (B) 272 X-4929-703-1 ARM ASSY, SWING
259 7-624-105-04 STOP RING 2.3, TYPE -E 911 1-535-832-11 (EXCEPT FOR AUS)...JUMPER, FILM
260 4-927-649-01 BELT (WITH TERMINAL )
261 4-929-723-01 GUIDE (T) 912 1-634-461-11 PC BOARD, LOADING
262 *4-917-583-21 BRACKET, YOKE M251 A-4608-362-A MOTOR (L) ASSY (LOADING)
263 X-4929-709-1 SHASSIS (MD) ASSY $291 1-571-924-11 SWITCH, LEAF (LOAD OUT)
264 7-621-775-10 SCREW +B 2.6X4 $292 1-571-924-11 SWITCH, LEAF (LOAD IN)
