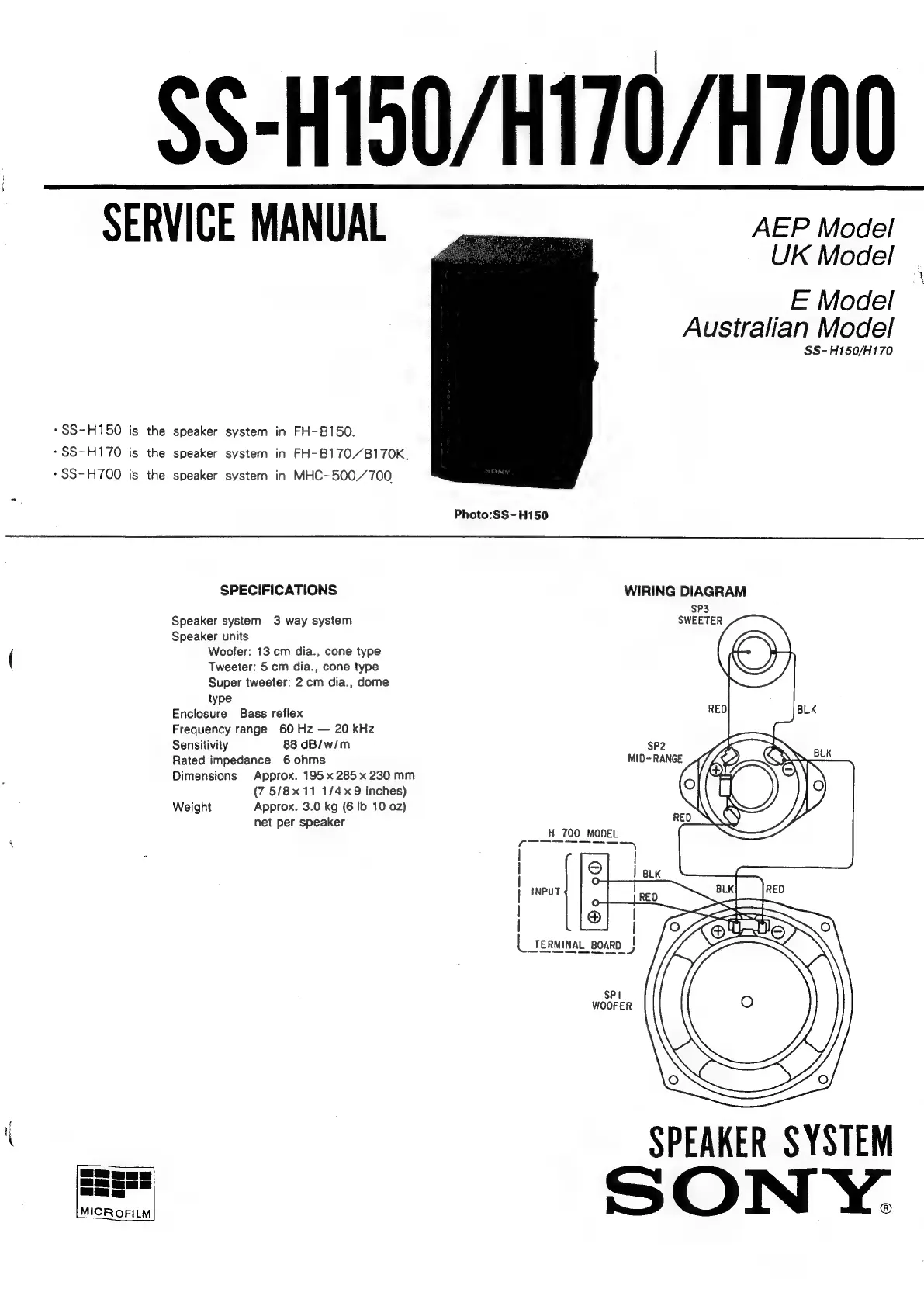

SS-H150/H170/H700
SERVICE
MANUAL
AEP
Modo
UK Model
E Model
Australian Model
SS-H150/H170
*SS-H150 is the speaker system in FH-B150.
*SS-H170 is the speaker system in FH-B170/B170K.
*SS-H700 is the speaker system in MHC-500,/700
Photo:SS- H150
SPECIFICATIONS WIRING DIAGRAM
SP3
Speaker system 3 way system SWEETER
Speaker units
Woofer: 13 cm dia., cone type
Tweeter: 5 cm dia., cone type
Super tweeter: 2 cm dia., dome
type
Enclosure Bass reflex
Frequency range 60 Hz — 20 kHz
Sensitivity 88 dB/w/m Sp2
Rated impedance 6 ohms MID-RANGE BLK
Dimensions Approx. 195 x 285 x 230 mm
(7 5/8x 11 1/4x9 inches)
Weight Approx. 3.0 kg (6 Ib 10 0z)
net per speaker
SP |
WOOFER
SPEAKER SYSTEM
SONY.
