SS- H150/H170/H700 |

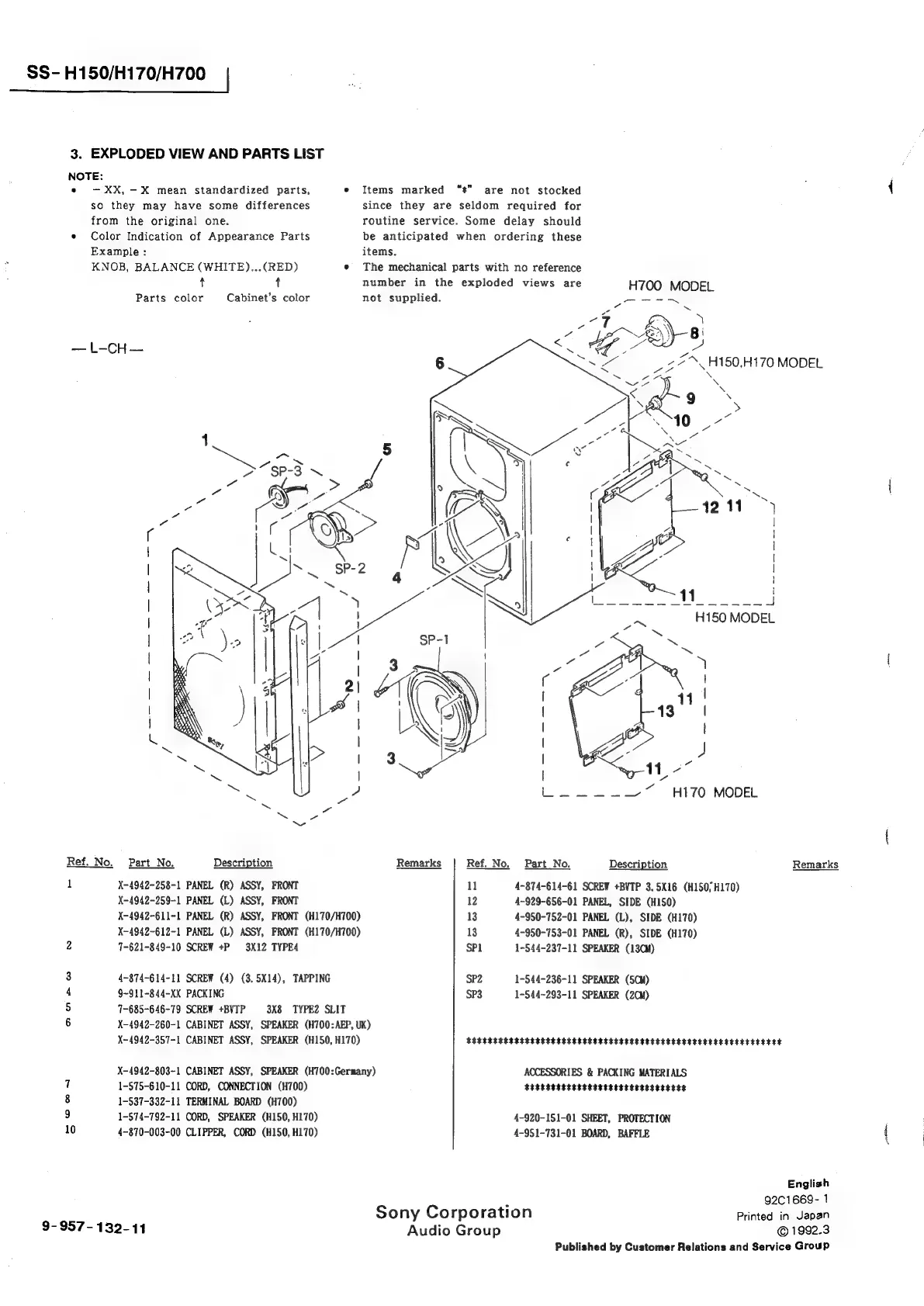

3. EXPLODED VIEW AND PARTS LIST
NOTE:
°e -—xXX,—-X mean standardized parts, e Items marked
so they may have some differences
from the original one.
e Color Indication of Appearance Parts
“se” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
Example : items.
KNOB, BALANCE (WHITE)...(RED) e The mechanical parts with no reference
t t number in the exploded views are H700 MODEL
Parts color Cabinet’s color not supplied. a
— L-CH—
Ref. No.
1
own & Ww
woo ~)
9-957-132-1411
Part No. Description Remarks
X-4942-258-1 PANEL (R) ASSY, FRONT
X-4942-259-1 PANEL (L) ASSY, FRONT
X-4942-611-1 PANEL (R) ASSY, FRONT (H170/H700)
X-4942-612-1 PANEL (L) ASSY, FRONT (H170/H700)
7-621-849-10 SCREW +P 3X12 TYPE4
4-874-614-11 SCREW (4) (3.5X14), TAPPING
9-911-844-XX PACKING
71-685-646-79 SCREW +BVTP 3X8 TYPE2 SLIT
X-4942-260-1 CABINET ASSY, SPEAKER (H700:AEP, UK)
X-4942-357-1 CABINET ASSY, SPEAKER (H150, H170)
X-4942-803-1 CABINET ASSY, SPEAKER (H700:Germany)
1-575-610-11 CORD, CONNECTION (H700)
1-537-332-11 TERMINAL BOARD (H700)
1-574-792-11 CORD, SPEAKER (H150, H170)
4-870-003-00 CLIPPER, CORD (H150, H170)
rae 8.
Ry) 8}
“
bee Re eee Sy
Ref. No. Part No. Description Remarks
ll 4-874-614-61 SCREW +BVTP 3.5X16 (H150;H170)
12 4~929-656-01 PANEL, SIDE (H150)
13 4-950-752-01 PANEL (L), SIDE (H170)
13 4-950-753-01 PANEL (R), SIDE (H170)
SPI 1-544-237-11 SPEAKER (13CM)
SP2 1-544-236-11 SPEAKER (5CH)
SP3 1-544~293-11 SPEAKER (2CM)
ERSREERES ERASERS SESE EEEE ESSE ESSE EASES EEA RESSE REESE EEE EEE
ACCESSORIES & PACKING MATERIALS
bo 33332232 32 3322s ss sts ctees § sg
4-920-151-01 SHEET, PROTECTION
4-951-731-01 BOARD, BAFFLE
English
. 92C1669- 1
Sony Corporation Printed in Japan
Audio Group © 1992.3
Published by Customer Relations and Service Group
