SECTION 8
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AUS: Australian model
CND : Canadian model
EA : Saudi Arabia model
EE : East European model
RU : Russian model
SP : Singapore model
Ref. No. Part No. Description Remark

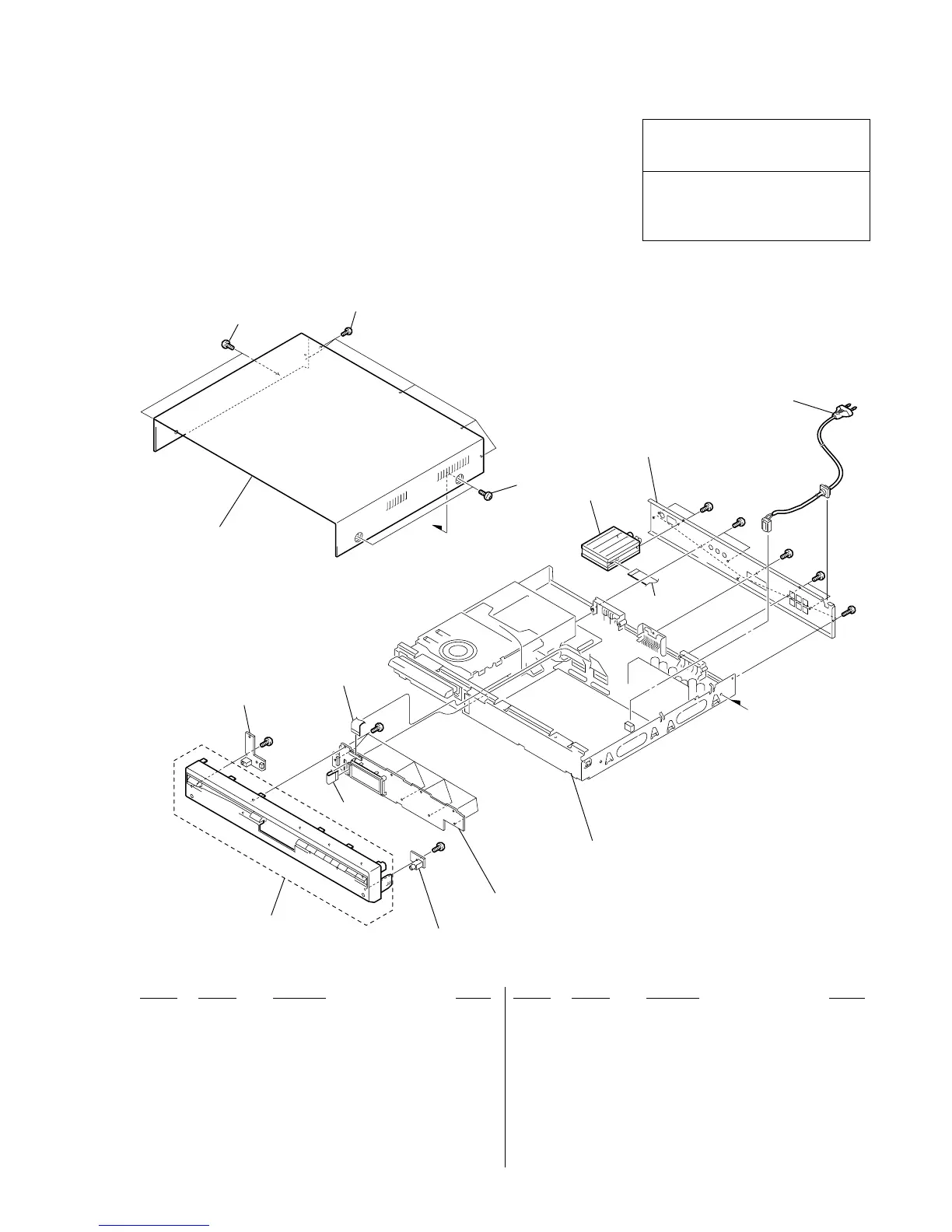

8-1. OVERALL SECTION
Ref. No. Part No. Description Remark
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
1 9-885-069-35 TOP COVER
2 9-885-070-89 FRONT PANEL ASSY (200:UK,AEP,EE)
2 9-885-070-90 FRONT PANEL ASSY (200:RU,SP,AUS)
2 9-885-069-43 FRONT PANEL ASSY (US,AUS,CND,EA,RU,SP)
2 9-885-069-23 FRONT PANEL ASSY (100:UK,AEP,EE)
3 9-885-069-34 TUNER PACK (UK,AEP,EE)
3 9-885-069-54 TUNER PACK (US,AUS,CND,EA,SP)
3 9-885-069-53 TUNER PACK (RU)
4 9-885-069-29 CABLE FLAT 23P
5 9-885-069-30 CABLE FLAT 24P
0 6 9-885-069-36 POWER CORD (100:UK)
0 6 9-885-069-57 POWER CORD (100:US,CND)
0 6 9-885-069-56 POWER CORD (100:AUS)
0 6 9-885-069-55 POWER CORD (100:AEP,EE,RU,SP)
0 6 9-885-069-36 POWER CORD (100:EA)
0 6 9-885-072-40 POWER CORD (200:EXCEPT AUS)
0 6 9-885-072-41 POWER CORD (200:AUS)
7 3-363-099-62 SCREW (CASE 3TP2)
#1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
2
5
4
3
7
7
7
6
1
chassis section
#1
#1
#1
#1
#1
#1
#1
#1
a
a
not supplied
not supplied
not supplied
not supplied
not supplied
