Sony HDR-HC3 - Cabinet (L) Block 2 Disassembly

2-7
HDR-HC3/HC3E/HC3K/HC3EK_L2
2-1-6. CABINET (L) BLOCK-2

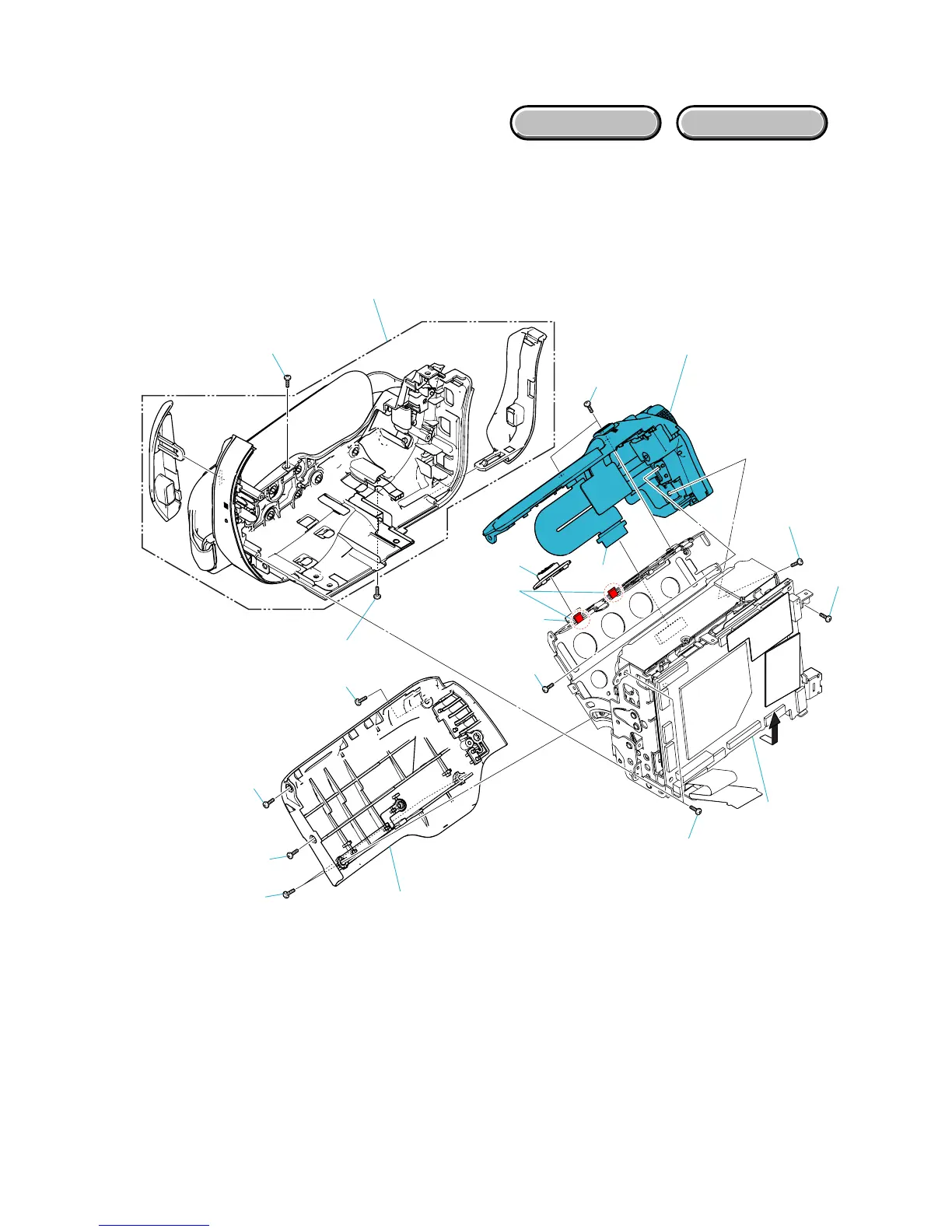

EXPLODED VIEW
HARDWARE LIST
2 Control Switch Block
1 Cabinet (G) Assy
2-1
2-2 (#3)
3 Cabinet (L) Assy
1-5 (#1/#14)
1-4 (#2/#10)
1-1 (#1/#14)
1-6 (#9)
2-3 (#9)
2-4 (Claw)
3-1 (#1/#14)
3-2 (#1/#14)
3-3 (#5)
3-5
(Remove in the
direction of the
arrow.)
3-4 (#5)
1-2 (#2/#10)
1-3
(Open the cassette lid.)
1-7
Follow the disassembly in the numerical order given.
1 Cabinet (G) assy (1-1 to 1-7)
2 Control switch block (2-1 to 2-4)
3 Cabinet (L) assy (3-1 to 3-5)
