Hooking Up the Components
7
US
HT-DDW650 4-244-183-71(1) US

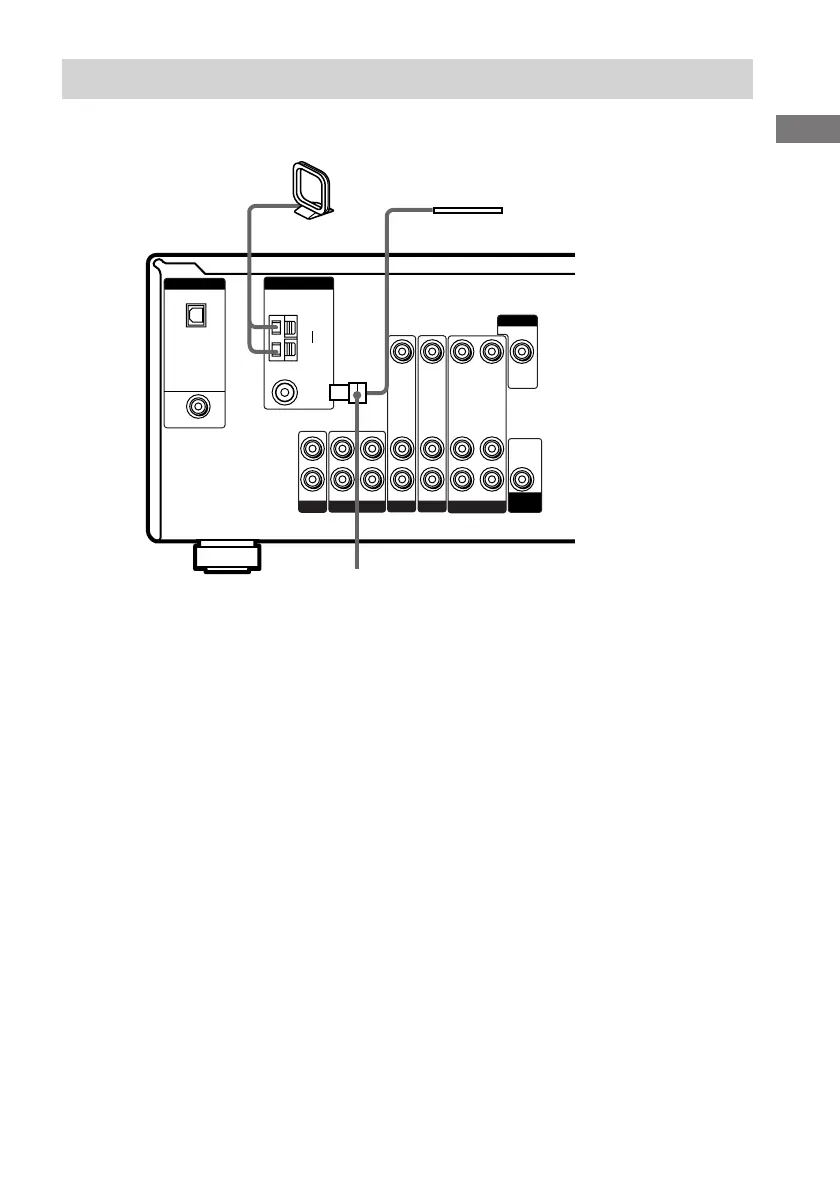

Antenna hookups
FM wire antenna
(supplied)
AM loop antenna
(supplied)
Notes on antenna hookups
• To prevent noise pickup, keep the AM loop
antenna away from the receiver and other
components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it
as horizontal as possible.
L
R
y
AM
FM
75Ω
COAXIAL
DIGITAL
ANTENNA
MONITOR
SUB
WOOFER
VIDEO 1
VIDEO 2
DVDMD/TAPE
CD
OPTICAL
VIDEO 2
IN
DVD IN
COAXIAL
IN OUT
IN
AUDIO IN AUDIO IN
AUDIO OUT AUDIO IN
VIDEO IN VIDEO IN
VIDEO OUT VIDEO IN
VIDEO OUT
AUDIO
OUT
* The shape of the connector varies depending on the area code.
*
