8
US
Name Function
M HDMI Lights up when the receiver
recognizes a component
connected via a HDMI IN jack
(page 20).
N Playback
channel
indicators
L
R
C
SL
SR
S
The letters (L, C, R, etc.)
indicate the channels being
played back. The boxes around
the letters vary to show how the
receiver downmixes the source
sound.
Front Left
Front Right
Center (monaural)
Surround Left
Surround Right
Surround (monaural or the
surround components obtained
by Pro Logic processing)

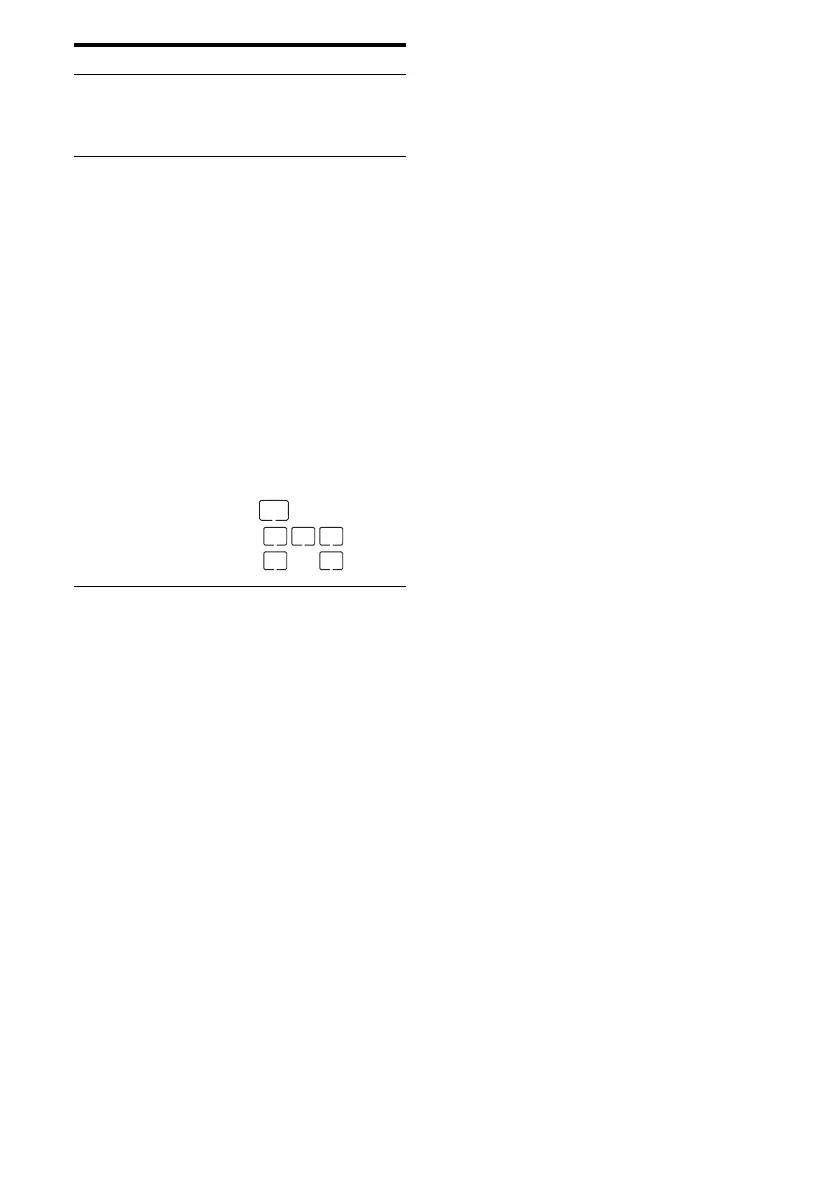

Example:
Recording format (Front/
Surround): 3/2.1
Sound Field: A.F.D. AUTO
L C R
SL SR
SW
To Next Page
