Sony HT-S700RF Service Manual

HT-S500RF/S700RF
16
Sony CONFIDENTIAL
For Authorized Servicer

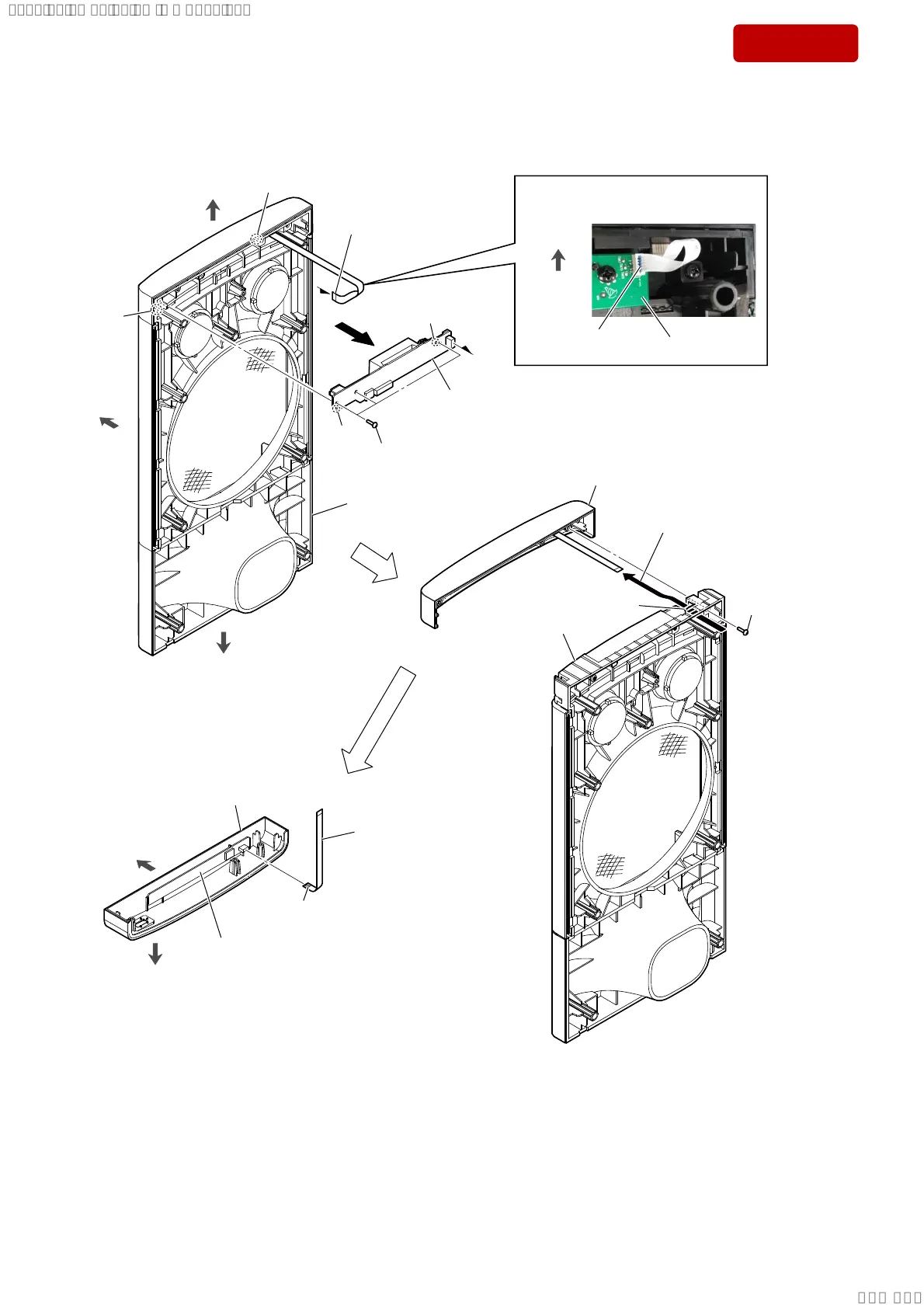

2-10. FL BOARD, SW PANEL, LED WINDOW W TOUCH
0 LED window W touch
9 FFC (TOUCH) (5 core)
(XP1)
terminal side
TOUCH board
top side
))&728&+FRUHVHWWLQJ
The opposite side
is terminal side.
FL board
top side
bottom side
–,QQHUYLHZ–
front panel block
3
2 three screws
(BVTP3 u 10)
front side
top side
E
4 FL board
Note:
When installing the FL board, align
the two bosses and two holes.
hole
hole
boss
boss
E
1 FFC (TOUCH) (5 core)
(XP902)
hole
5 screw
(BVTP3 u 10)
6 Draw the FFC (TOUCH)
(5 core) out of the hole.
7 SW panel
8 LED window block
front side
SYSSET
2018/11/2806:27:54(GMT+09:00)

Sony HT-S700RF Specifications

General

Total Power Output	1000W
Audio Channels	5.1
Speaker Type	Soundbar
Dolby Digital	Yes
HDMI Input	1
HDMI Output	1
Optical Input	1
USB	1
Connectivity	Bluetooth, USB
