Sony HT-S700RF Service Manual

45
HT-S500RF/S700RF
Sony CONFIDENTIAL
For Authorized Servicer

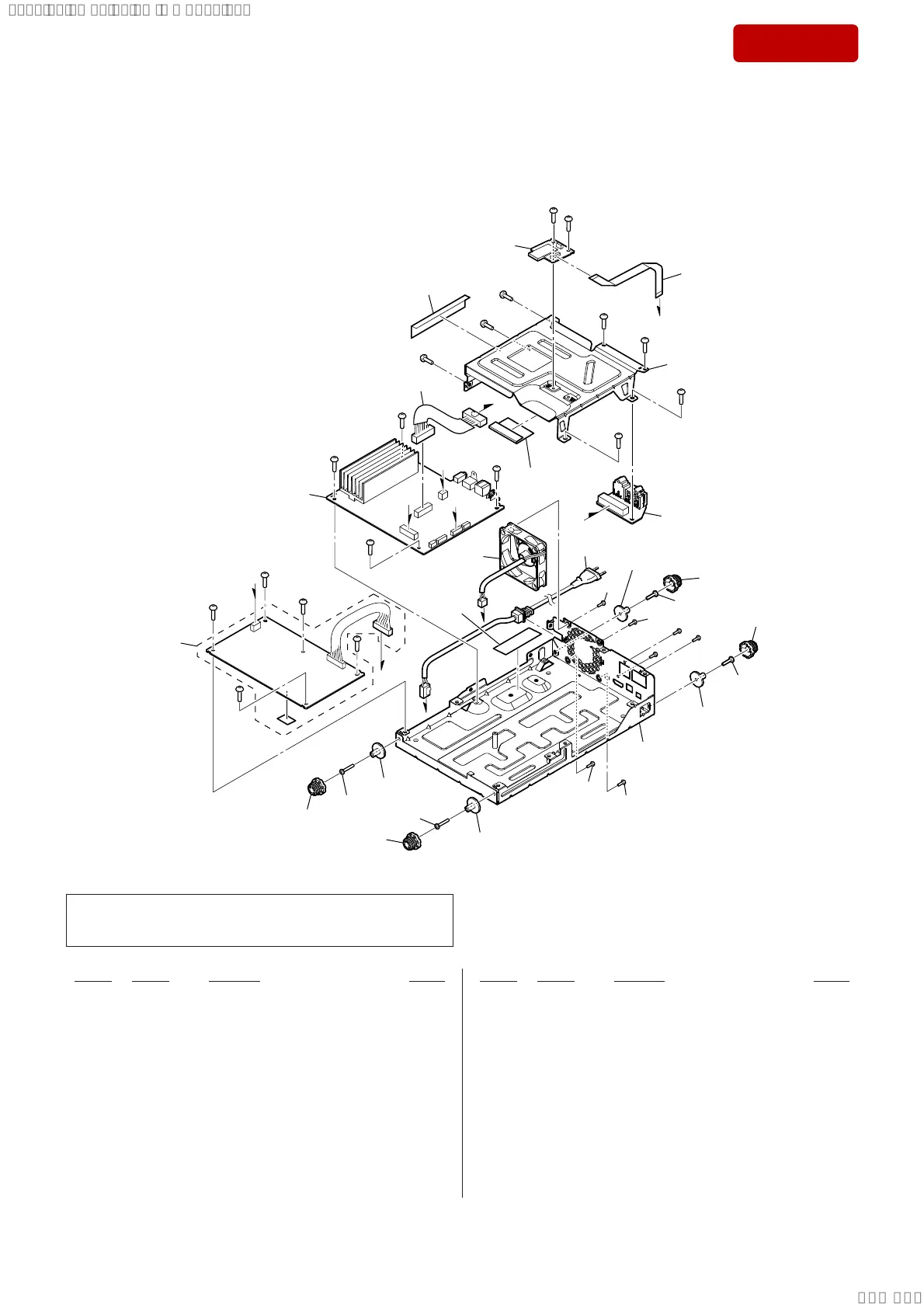

6-4. SUBWOOFER AMP SECTION (SA-WS700RF)
Note 1: Refer to page 43 for the SA-WS500RF.
R
R
S
S
T
T
U
U
V
V
FFC4
FAN2
AC2
WR2
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not
supplied
#1
#1
#1
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
not
supplied
151
151
151
151
152
152
152
152
153
154
155
156
157
157
157
157
Note 2: When the complete BT board (Ref. No. 155) is replaced, refer
to “OPERATION CHECK OF THE BLUETOOTH CONNEC-
TION” on page 7.
151 9-885-223-41 CATCHER RUBBER
152 9-885-223-91 SCREW +BVTT 3X16 (S)
153 9-885-223-25 POWER BOARD, COMPLETE (Including Cushion)
(RU, E3, EA, SP, TH, IND)
153 9-885-223-26 POWER BOARD, COMPLETE (Including Cushion)
(BR, LA)
154 9-885-223-18 MAIN BOARD, COMPLETE
155 9-885-223-86 BT BOARD, COMPLETE (IND) (See Note 2)
155 9-885-223-87 BT BOARD, COMPLETE (E3, EA, SP, TH)
(See Note 2)
155 9-885-223-88 BT BOARD, COMPLETE (BR, LA) (See Note 2)
155 9-885-223-89 BT BOARD, COMPLETE (RU) (See Note 2)
156 9-885-223-39 SPK JACK BOARD, COMPLETE
157 9-885-223-40 SCREW SW
0 AC2 9-885-223-27 POWER CORD (EK E12) (IND)
0 AC2 9-885-223-28 POWER CORD (EK EURO) (E3, SP, LA)
0 AC2 9-885-223-30 POWER CORD (EK EA4) (EA)
0 AC2 9-885-223-32 POWER CORD (EK2 TH1) (TH)
0 AC2 9-885-223-33 POWER CORD (EK2 BR1) (BR)
0 AC2 9-885-224-58 POWER CORD (RU3) (RU)
0 FAN2 9-885-223-51 DC FAN
FFC4 9-885-223-48 FFC (BT) (24 core)
WR2 9-885-223-55 CABLE (MAIN SPK JACK) (10 pin)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.1
SYSSET
2018/11/2806:27:54(GMT+09:00)
