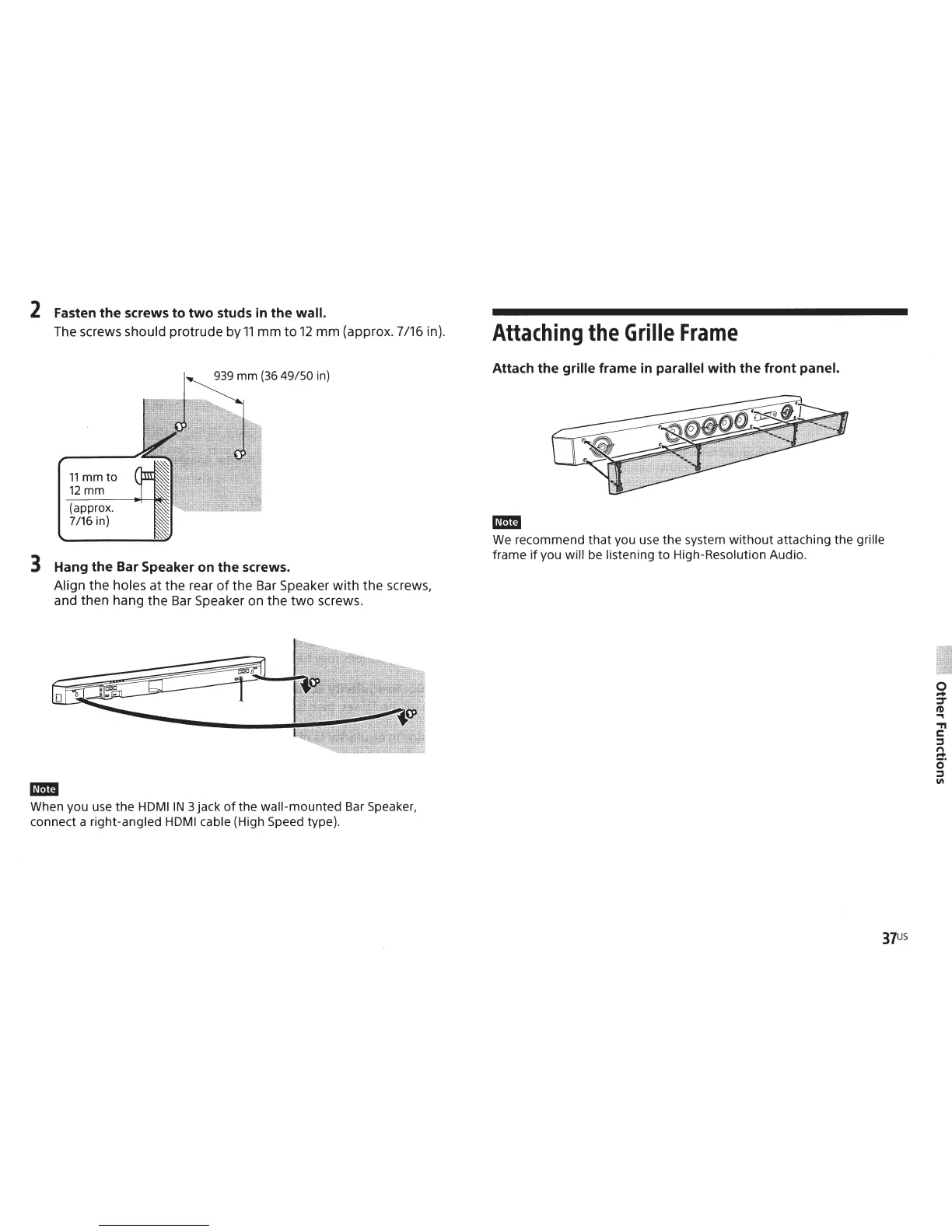

2 Fasten
the
screws to
two
studs in the wall.
The screws should protrude by
11
mm
to
12
mm
(approx. 7/16 in).
11
mm to
12mm
(approx.
7/16 in)
939 mm (36
49/50
in)
3 Hang the Bar Speaker on the screws.
Align the holes at the rear
of
the Bar Speaker
with
the screws,
and then hang the
Bar
Speaker on the
two
screws.
ea
When you use the
HOM
I
IN
3 jack
of
the wall-mounted Bar Speaker,
connect a right-angled
HDMI
cable (High Speed type).
Attaching
the
Grille
Frame
Attach the grille frame
in
parallel with the front panel.
ea
We
recommend
that
you use the system
without
attaching the grille
frame
if
you will be listening to High-Resolution Audio.
