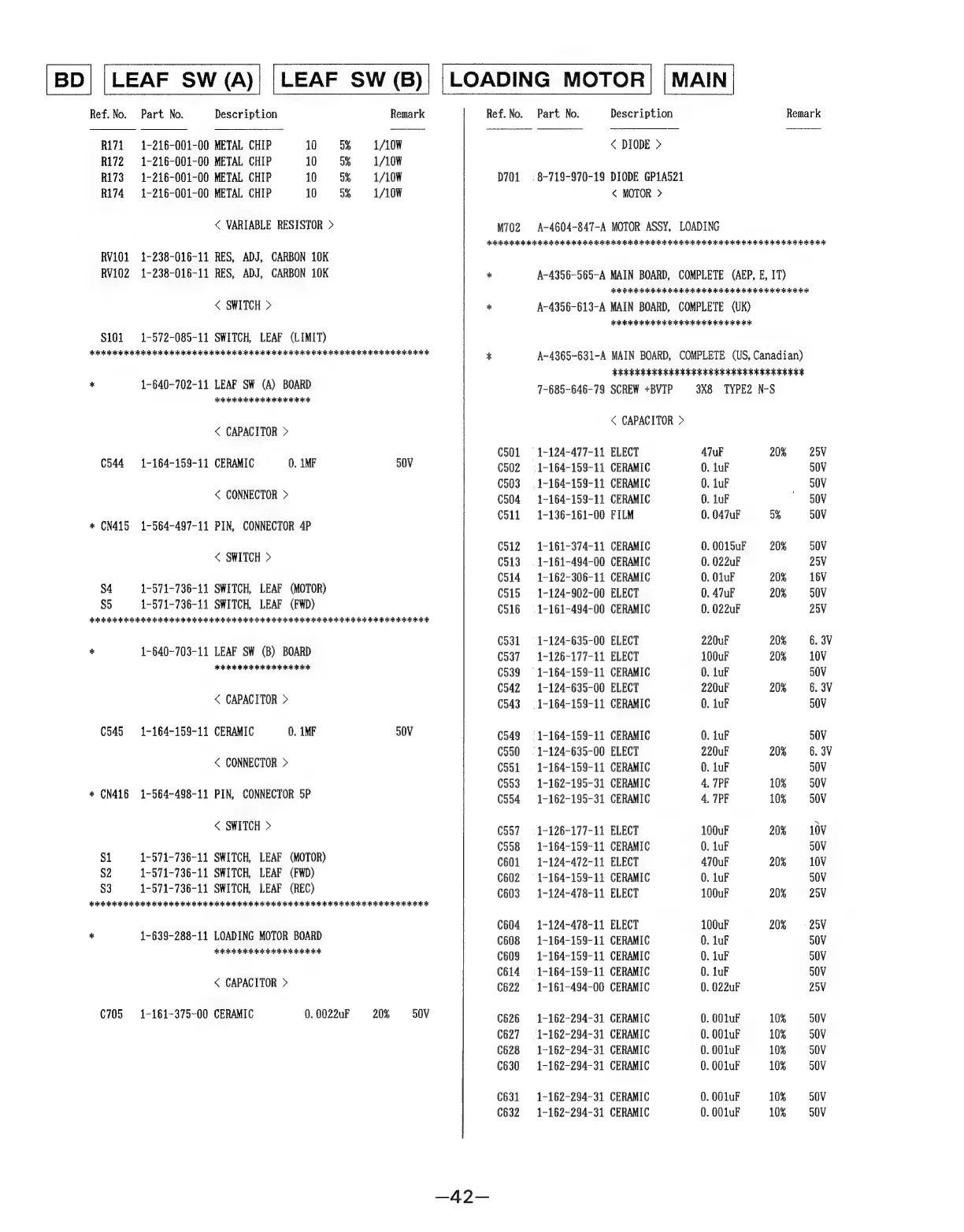

Sony HTC-D159 - Page 24

Ref. No. Part No. Description Remark
Ri71—-1-216-001-00 METAL CHIP 10 5% 1/10W
Ri72 1-216-001-00 METAL CHIP 10 5% 1/10W
R173 = 1-216-001-00 METAL CHIP 10 5% 1/10W
R174 = 1-216-001-00 METAL CHIP 10 5% 1/10W
< VARIABLE RESISTOR >
RV101 1-238-016-11 RES, ADJ, CARBON 10K
RVi02 1-238-016-11 RES, ADJ, CARBON 10K
< SWITCH >
$101 1-572-085-11 SWITCH, LEAF (LIMIT)
SOO II RII III OO I III I Ri a toto tok og a
* 1-640-702-11 LEAF SW (A) BOARD
Ae ook otototok ok
< CAPACITOR >
C544 =1-164-159-11 CERAMIC 0. IMF 50V
< CONNECTOR >
* (N415 1-564-497-11 PIN, CONNECTOR 4P
< SWITCH >
54 1-571-736-11 SWITCH, LEAF (MOTOR)
S5 1-571-736-11 SWITCH, LEAF (FWD)
FEO CCI OO IOC IO ICO IOI I I I OR IOI OR IIR Fok ok
* 1-640-703-11 LEAF SW (B) BOARD
Jobo obioioiioioinioioioios
< CAPACITOR >
C545 = =1-164-159-11 CERAMIC 0. IMF 50V
< CONNECTOR >
* (N416 1-564-498-11 PIN, CONNECTOR SP
< SWITCH >
$1 1-571-736-11 SWITCH, LEAF (MOTOR)
S2 1-571-736-11 SWITCH, LEAF (FWD)
S3 1-571-736-11 SWITCH, LEAF (REC)
EBSCO OOOO GIO IO OOO OI OIG OOO IO ISOS IO IO rok bok
* 1-639-288-11 LOADING MOTOR BOARD
Joipoioioiooioioioioiioloioiok
< CAPACITOR >
C705 1-161~-375-00 CERAMIC 0.0022uF 20% 50V
(LEAF sw @)
Ref. No. Part No. Description Remark
< DIODE >
D701 «= 8-719-970-19 DIODE GP1A521
< MOTOR >
M702 A-4604-847-A MOTOR ASSY, LOADING
HR RR RR IR RRR FOR RR RR RRR RR RO ROR ROR RR RR RRR FO OR ORCI AOR AOR I a a oh
* A-4356-565-A MAIN BOARD, COMPLETE (AEP, E, IT)
JE SOG OSGI GOGO O OOO IOI IAAI
* A-4356-613-A MAIN BOARD, COMPLETE (UK)
FE SSIS IO IOI I IOK
x A~4365-631-A MAIN BOARD, COMPLETE (US, Canadian)
HKARK REAR RARER AR ARERR AAA RE AEE ES
7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
< CAPACITOR >
C501 = 1-124-477-11 ELECT ATuF 20% = 25V
C502 = 1-164-159-11 CERAMIC 0. JuF 30V
C503 = 1-164-159-11 CERAMIC 0. luF 30V
C504 = 1-164-159-11 CERAMIC 0. luF ~ 50V
C511 =1-136-161-00 FILM 0. 047uF 0% 30V
C512 = 1-161-374-11 CERAMIC 0.0015uF 20% 50V
C513 = 1-161-494-00 CERAMIC 0. 022uF 25V
C514 = 1-162-306-11 CERAMIC 0. OluF 20% 16V
€515 = 1-124-902-00 ELECT 0. 47uF 20% 50V
C516 = 1-161~494-00 CERAMIC 0. 022uF 25V
C531 = 1-124-635-00 ELECT 220uF 20% 6.3V
C537 = 1-126-177-11 ELECT 100uF 20% 10V
C539 = 1-164-159-11 CERAMIC 0. 1uF 50V
0542 = 1-124-635-00 ELECT 220uF 20% 6. 3V
C543 = 1-164-159-11 CERAMIC 0. luF 30V
C549 = 1-164-159-11 CERAMIC 0. 1uF 50V
C550 = 1-124-635-00 ELECT 220uF 20% ~=—-6. 8V
C551 = 1-164-159-11 CERAMIC 0. luF 30V
(553 = 1-162-195-31 CERAMIC 4. 7PF 10% SOV
C554 1-162-195-31 CERAMIC 4. 1PF 10% SOV
C557 = 1-126-177-11 ELECT 100uF 20% 10V
C558 = =1-164-159-11 CERAMIC 0. luF 30V
C601 1-124-472-11 ELECT 470uF 20% =—10V
C602 = 1-164-159-11 CERAMIC 0. luF 50V
C603 = 1-124-478-11 ELECT 100uF 20% 25V
C604 = =1-124-478-11 ELECT 100uF 20% = 25V
C608 1-164-159-11 CERAMIC 0. JuF S0V
C608 = 1-164-159-11 CERAMIC 0. luF 30V
C614. = 1-164-159-11 CERAMIC 0. 1uF 50V
C622 = 1-161-494-00 CERAMIC 0. 022uF 25V
C626 = =©1-162-294-31 CERAMIC 0. OO1uF 10% S0V
C627 =: 1-162-294-31 CERAMIC 0. 00 1uF 10% 50V
C628 = =1-162-294-31 CERAMIC 0. 001uF 10% SOV
C630 = =©1-162-294-31 CERAMIC 0. 001uF 10% 50V
C631 1-162-294-31 CERAMIC 0. 001uF 10% SOV
C632 =1-162-294-31 CERAMIC 0. 0O1uF 10% 50V
—42—
