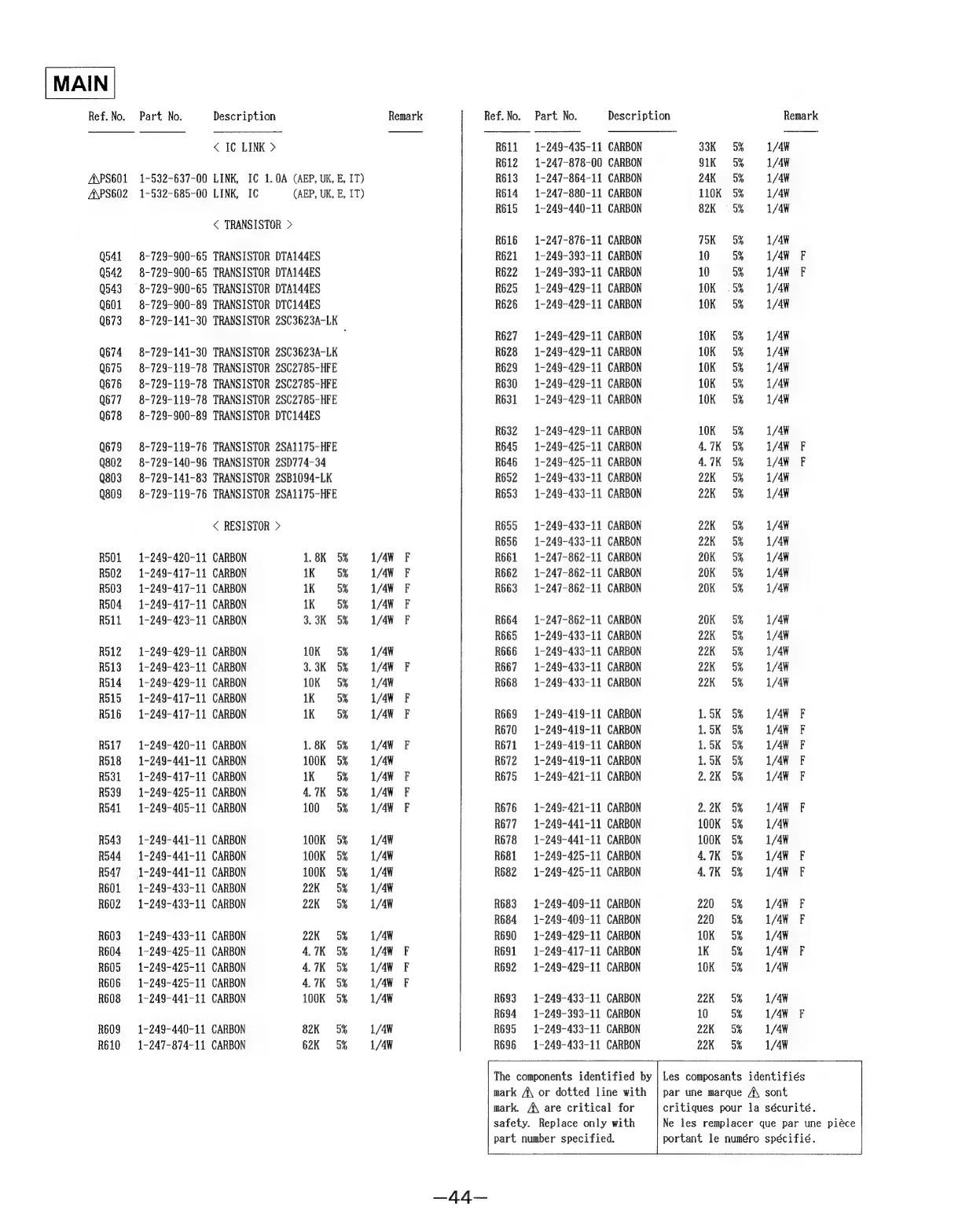

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< I¢ LINK > R611 1-249-435-11 CARBON 33K 5% 1/4W
R612 1-247-878-00 CARBON 81K 5% 1/4¥
A\PS601 1-532-637-00 LINK, IC 1.0A (AEP, UK, E, IT) R613. 1-247-864-11 CARBON 24K 45% 1/4W
A\PS602 1-532-685-00 LINK, IC (AEP, UK, E, IT) R614 1-247-880-11 CARBON 110K 5% 1/4W
R615 1-249-440-11 CARBON 82K = 5% 1/4W
< TRANSISTOR >
R616 1-247-876-11 CARBON 75K 5% 1/4W
Q541 8-729-900-65 TRANSISTOR DTA144ES R621 1-249-393-11 CARBON 10 5% 1/4W F
Q542 8-729-900-65 TRANSISTOR DTA144ES R622 1-249-393-11 CARBON 10 Hy 1/4W F
Q543 = 8-729-900-65 TRANSISTOR DTA144ES R625 1-249-429-11 CARBON 10K = b% 1/4W
Q601 8-729-900-89 TRANSISTOR DTC144ES R626 1-249-429-11 CARBON 10K = 5% 1/4¥
Q673 8-729-141-30 TRANSISTOR 2SC3623A-LK
. R627 1-249-429-11 CARBON 10K 5% 1/4W
Q674 8-729-141-30 TRANSISTOR 2SC3623A-LK R628 1-249-429-11 CARBON 10K 5% 1/4W
Q675 8-729-119-78 TRANSISTOR 2SC2785-HFE R629 1-249-429-11 CARBON 10K = 5% 1/4¥
Q676 8-729-119-78 TRANSISTOR 2SC2785-HFE R630 1-249-429-11 CARBON 10K 5% 1/4W
Q677 8-729-119-78 TRANSISTOR 2S8C2785-HFE R631 1-249-429-11 CARBON 10K 65% 1/4W
Q678 8-729-900-89 TRANSISTOR DTC144ES
R632 1-249-429-11 CARBON 10K 5% 1/4W
Q678 8-729-119-76 TRANSISTOR 2SA1175-HFE R645 1-249-425-11 CARBON 4.7K 5% 1/4¥ F
Q802 8-729-140-96 TRANSISTOR 2SD774-34 R646 1-249-425-11 CARBON 4.7K 5% 1/4W F
Q803 8-729-141-83 TRANSISTOR 2SB1094-LK R652 1-249-433-11 CARBON 22K = o5% 1/4W
Q809 8-729-119-76 TRANSISTOR 2SA1175-HFE R653 1-249-433-11 CARBON 22K = % 1/4W
< RESISTOR > R655 1-249-433-11 CARBON 22K 5% 1/4W
R656 1-249-433-11 CARBON 22K 5% 1/4W
R501 1-249-420-11 CARBON 1.8K 5% 1/4¥ F R661 1-247-862-11 CARBON 20K 5% 1/4W
R502 1-249-417-11 CARBON 1K 5% 1/4W F R662 1-247-862-11 CARBON 20K 5% 1/4W
R503 1-249-417-11 CARBON 1K 5% 1/4¥ F R663 1-247-862-11 CARBON 20K 5% 1/4W
R504 = 1-249-417-11 CARBON 1K 5% 1/4W F
R511 1-249-423-11 CARBON 3.3K 5% 1/4W F R664 1-247-862-11 CARBON 20K 5% 1/4W
R665 1-249-433-11 CARBON 22K = o% 1/4W
R512 1-249-429-11 CARBON 10K 5% 1/4W R666 1-249-433-11 CARBON 22K 5% 1/4W
R513 = 1-249-423-11 CARBON 3.3K 5% 1/4W F R667 1-249-433-11 CARBON 22K = 5% 1/4W
R514 = =1-249-429-11 CARBON 10K 5% 1/4W R668 1-249-433-11 CARBON 22K 5% 1/4W
R515 1-249-417-11 CARBON 1K 5% 1/4W F
R516 1-249-417-11 CARBON 1K 5% 1/4W¥ F R669 1-249-419-11 CARBON 1.5K 5% 1/4W F
R670 + =1-249-419-11 CARBON 1.5K 5% 1/4W F
R517 +=1-249-420-11 CARBON 1.8K 5% 1/4W F R671 1-249-419-11 CARBON 1.5K 5% 1/4¥ F
R518 1-249-441-11 CARBON 100K 5% 1/4W R672 1-249-419-11 CARBON 1.5K 5% 1/4W¥ F
R531 1-249-417-11 CARBON 1K 5% 1/4W F R675 1-249-421-11 CARBON 2.2K 5% 1/4W F
R539 =1-249-425-11 CARBON 4.7K 5% 1/4W F
R541 1-249-405-11 CARBON 100 = 5% 1/4W F R676 1-249-421-11 CARBON 2.2K 5% 1/4W F
R677 + 1-249-441-11 CARBON 100K 5% 1/4¥
R543 1-249-441-11 CARBON 100K 5% 1/4W R678 1-249-441-11 CARBON 100K 5% 1/4W
R544 = 1-249-441-11 CARBON 100K 5% 1/4W R681 1-249-425-11 CARBON 4.7K 5% 1/4W F
R547 ~=—- 1-249-441-11 CARBON 100K 5% 1/4W R682 1-249-425-11 CARBON 4.7K 5% 1/4W F
R601 4i-249-433-11 CARBON 22K 5% 1/4W
R602 1-249-433-11 CARBON 22K = b% 1/4W R683 1-249-408-11 CARBON 220 5% 1/4¥ F
R684 1-249-409-11 CARBON 220 5% 1/4W¥ F
R603 1-249-433-11 CARBON 22K = 5% 1/4W R690 1-249-429-11 CARBON 10K 5% 1/4W
R604 1-249-425-11 CARBON 4.7K 5% i/4W F R691 1-249-417-11 CARBON 1K 3% 1/4¥ F
R605 1-249-425-11 CARBON 4.7K 5% 1/4W F R692. 1-249-429-11 CARBON 10K = 5% 1/4W
R606 1-249-425-11 CARBON 4.7K 5% 1/4¥ F
R608 1-249-441-11 CARBON 100K 5% 1/4W R683 1-249-433-11 CARBON 22K 5% 1/4W
R694 1-249-393-11 CARBON 10 5% 1/4W F
R609 1-249-440-11 CARBON 82K 5% 1/4W R695 1-249-433-11 CARBON 22K = 1/4W
R610 1-247-874-11 CARBON 62K = 5% 1/4W R636 1-249-433-11 CARBON 22K 5% 1/4W
The components identified by | Les composants identifids
mark A\ or dotted line with | par une marque A\ sont
mark. A\ are critical for critiques pour la sécurité.
safety. Replace only with Ne les remplacer que par une piéce
part number specified. portant le numéro spécifié.
—44—
