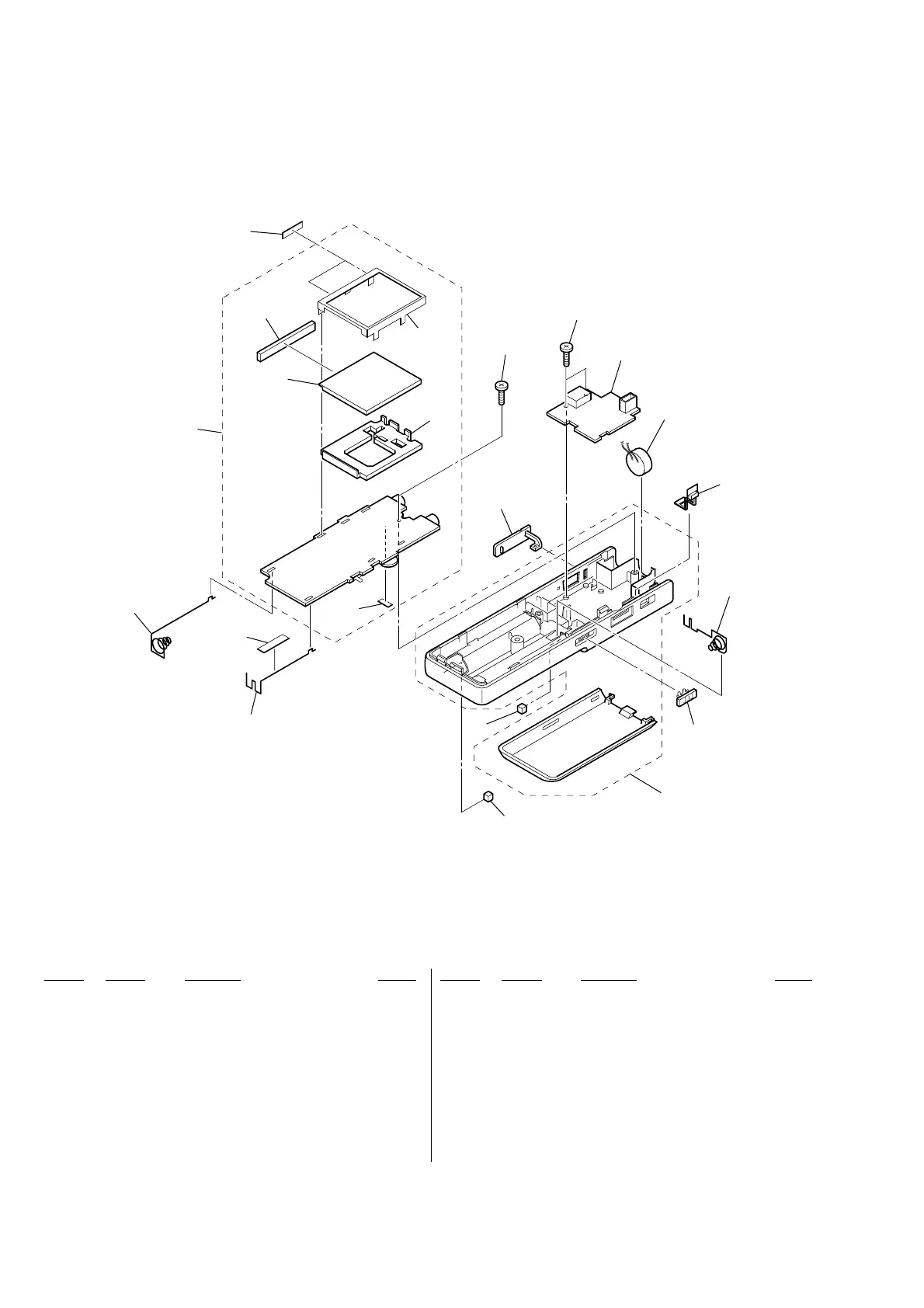

5-2. CASE (REAR) SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 2-633-874-01 BUTTON (SIDE)
52 2-633-876-01 TERMINAL (+.–), BATTERY
53 2-633-870-01 KNOB (HOLD)
54 X-2103-428-2 CASE (REAR) SUB ASSY (P)
55 2-177-065-01 CUSHION (BATTERY TERMINAL)
56 2-634-640-01 LID (CONNECTOR)
57 A-1158-387-A USB BOARD, COMPLETE
58 2-633-877-01 TERMINAL (+), BATTERY
59 2-590-020-01 SHEET, INSULATING
60 2-633-878-01 TERMINAL (–), BATTERY
61 3-251-410-02 SHEET, INSULATING
62 2-661-298-01 SPACER (LCD-P)
63 2-633-872-01 HOLDER (LCD)
64 1-780-296-21 CONDUCTIVE BOARD, CONNECTION
65 A-1158-384-A MAIN BOARD, COMPLETE
66 2-653-251-01 SHEET
67 3-254-014-01 SCREW
LCD701 1-802-035-11 DISPLAY PANEL, LIQUID CRYSTAL
MIC101 1-542-650-11 MICROPHONE, ELECTRET CONDENSER
51
MIC101
LCD701
52
53
54
55
55
59
58
60
65
62
63
64
66
67
67
56
57
61
