Sony ICD-UX522F - Liquid Crystal Display Panel (Lcd501)

ICD-UX522F/UX523F
7

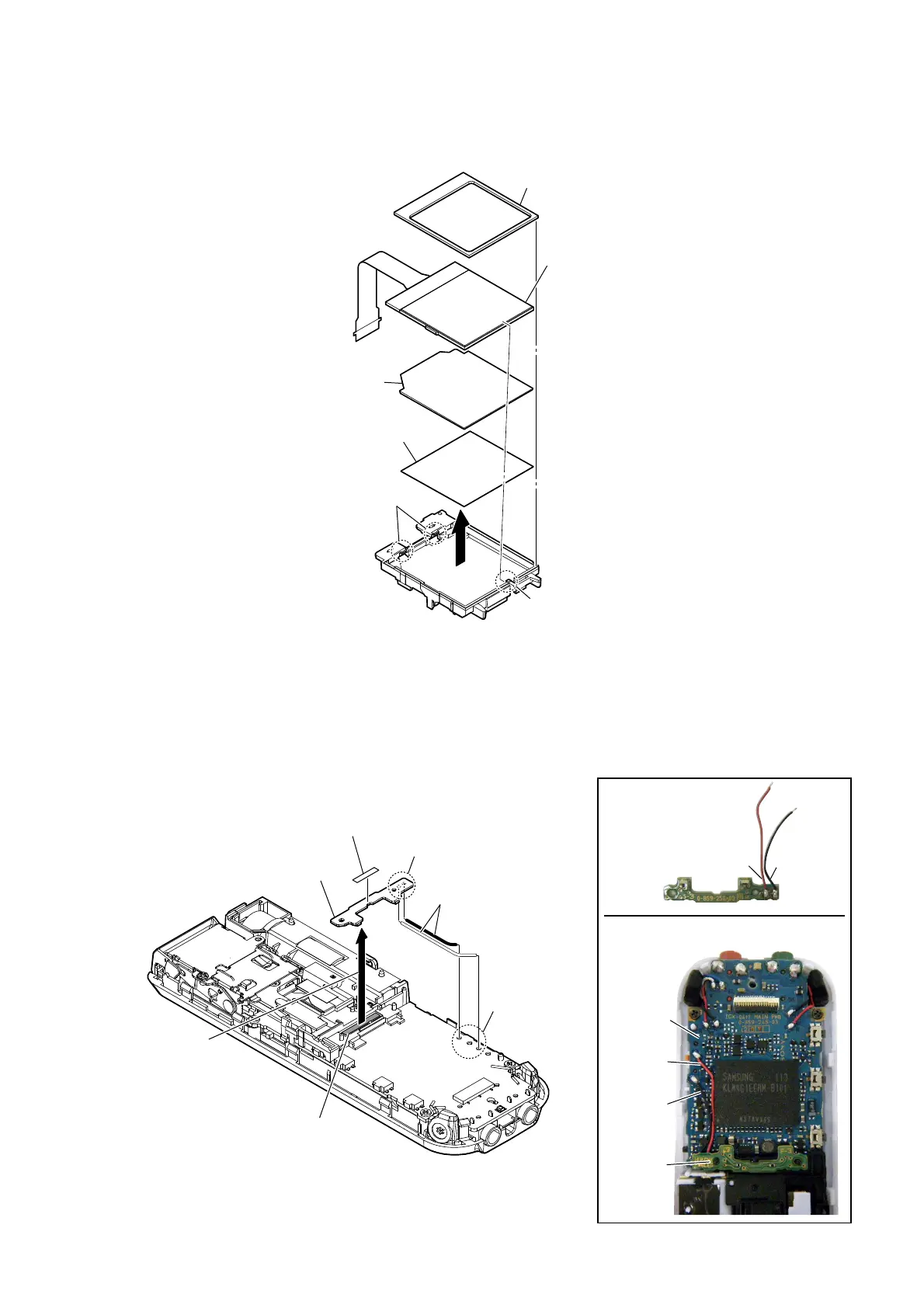

2-6. LED BOARD
2-5. LIQUID CRYSTAL DISPLAY PANEL (LCD501)
2 claw
2 two claws
4 reflection sheet
5 light guide plate
6 liquid crystal display panel
(LCD501)
1 cushion (LCD)
3
– Front top view –
2 Peel off the LED
board from adhesive
sheet (cover jog).
1 Remove two
solders.
4 Remove two solders.
5 two lead wire
7 LED board
6 insulating sheet (XTAL)
– Front top view –
– LED board –
– MAIN board, LED board –
LED board
MAIN board
black
red
black
red
 Wire setting
3 Lift up the
LCD board.
