Sony ICD-UX522F - Chassis Block

ICD-UX522F/UX523F
8

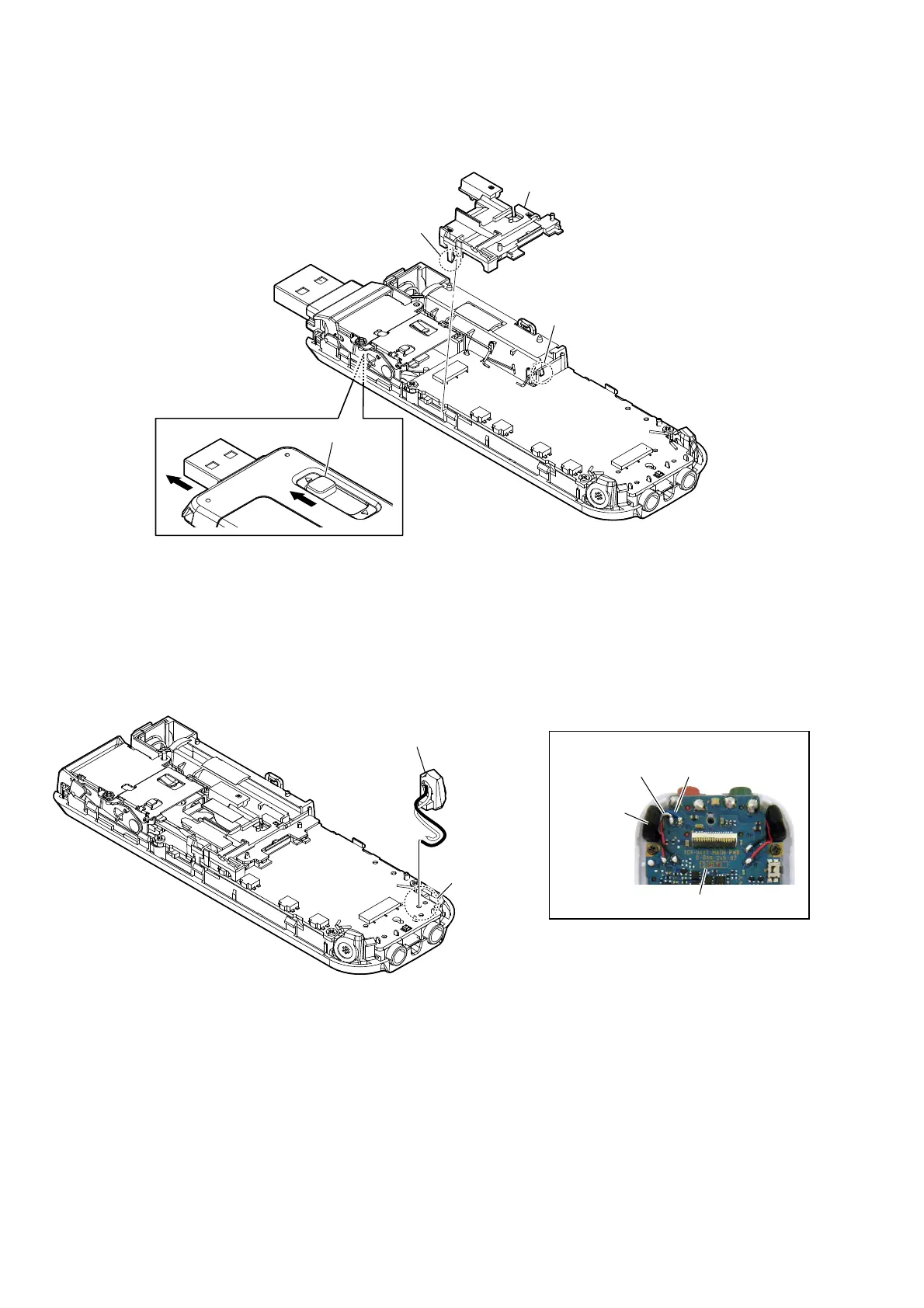

2-8. ELECTRET CAP MICROPHONE BLOCK (L)
2-7. CHASSIS BLOCK
3 chassis block
1 Slide the knob (USB).
2 claw
– Front top view –
2 claw
1 Remove two
solders.
2 electret cap microphone block (L)
– Front top view –
MAIN board
electret cap
microphone
block (L)
bluewhite
Wire setting
