– 19 –

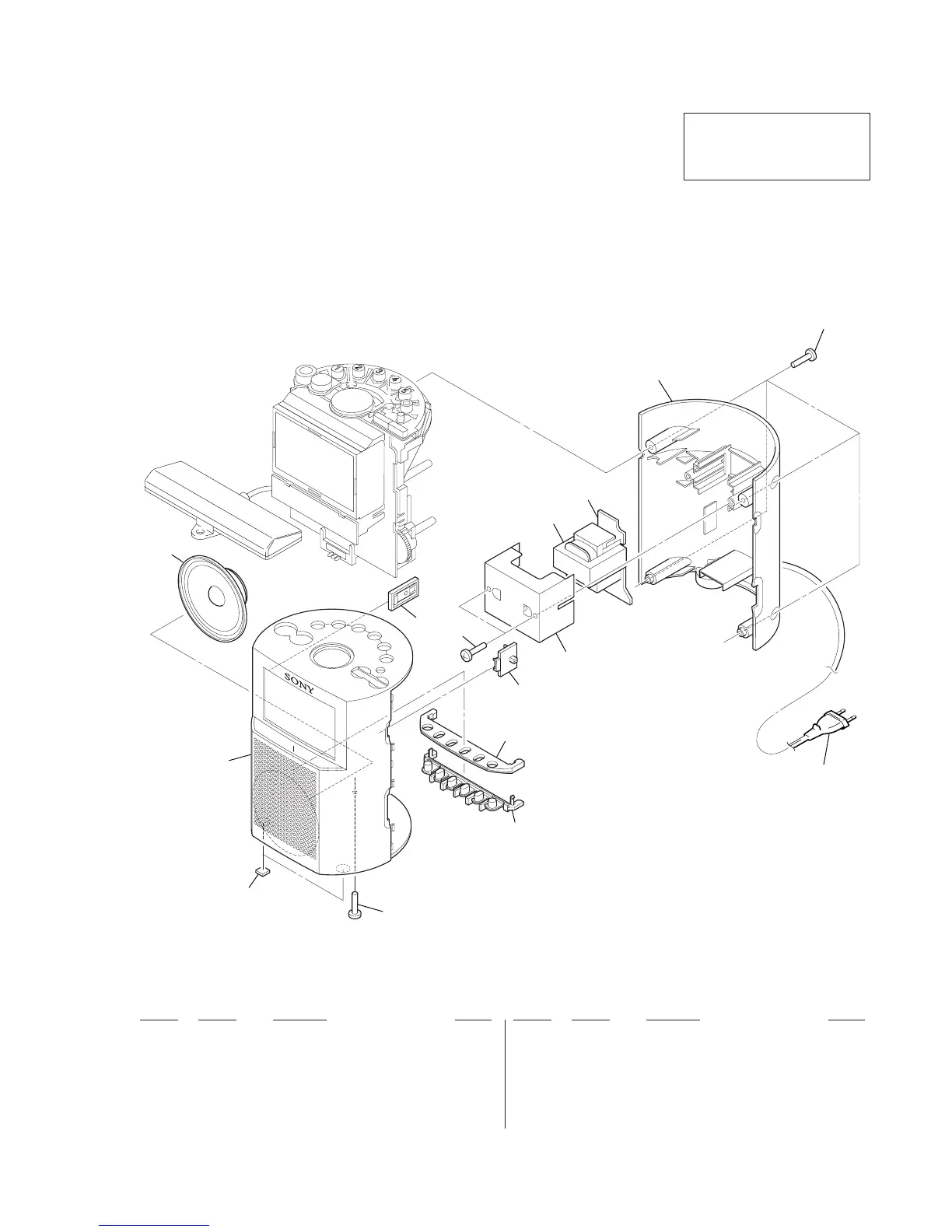

(1) CABINET SECTION
SECTION 5
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 7-685-649-79 SCREW +P 3X14 TYPE2 NON-SLIT
2 3-368-852-01 FOOT
3 X-3377-455-1 CABINET (TRANSPARENT PLATE) ASSY
4 3-032-463-01 BUTTON (DST)
* 5 1-671-842-11 TRANSFORMER BOARD
6 3-032-458-01 CABINET (REAR)
7 3-032-462-01 BUTTON (ALARM)
8 3-032-465-01 PANEL (ALARM)
9 3-032-460-01 KNOB (BRIGHTNESS)
0 10 1-555-795-00 CORD, POWER
SP301 1-504-748-21 SPEAKER (6.6cm)
0 T301 1-433-601-11 TRANSFORMER, POWER
To Next Page
