– 17 –

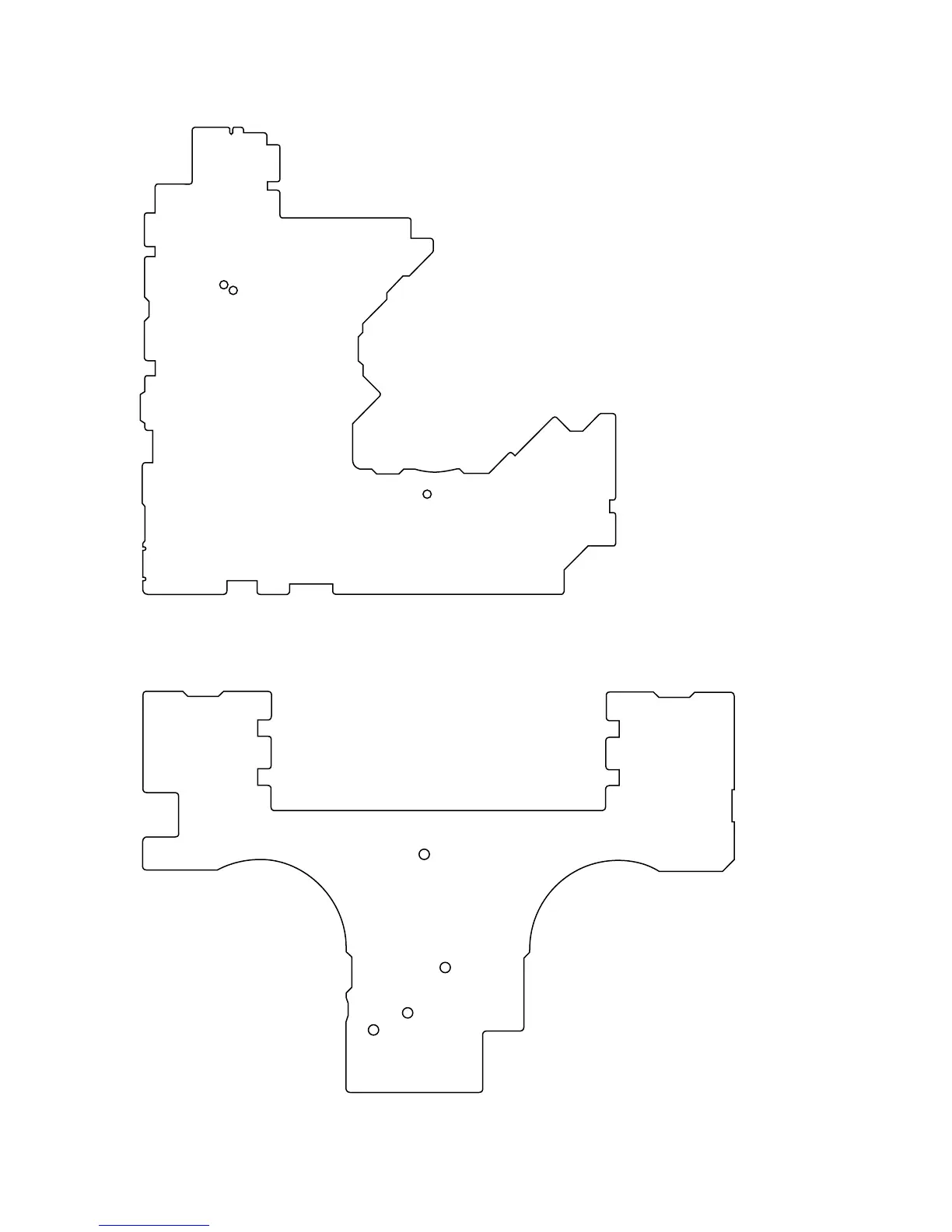

– LCD Board (Conductor side) –
TP
(DET OUT)
TP9
TP
(GND)
– MAIN Board (Conductor side) –
TP444
(GND)
TP418
(AFC)
TP429
TP419
(REG)
