Sony ICF-CD2000 - 3 Disassembly

– 8 –

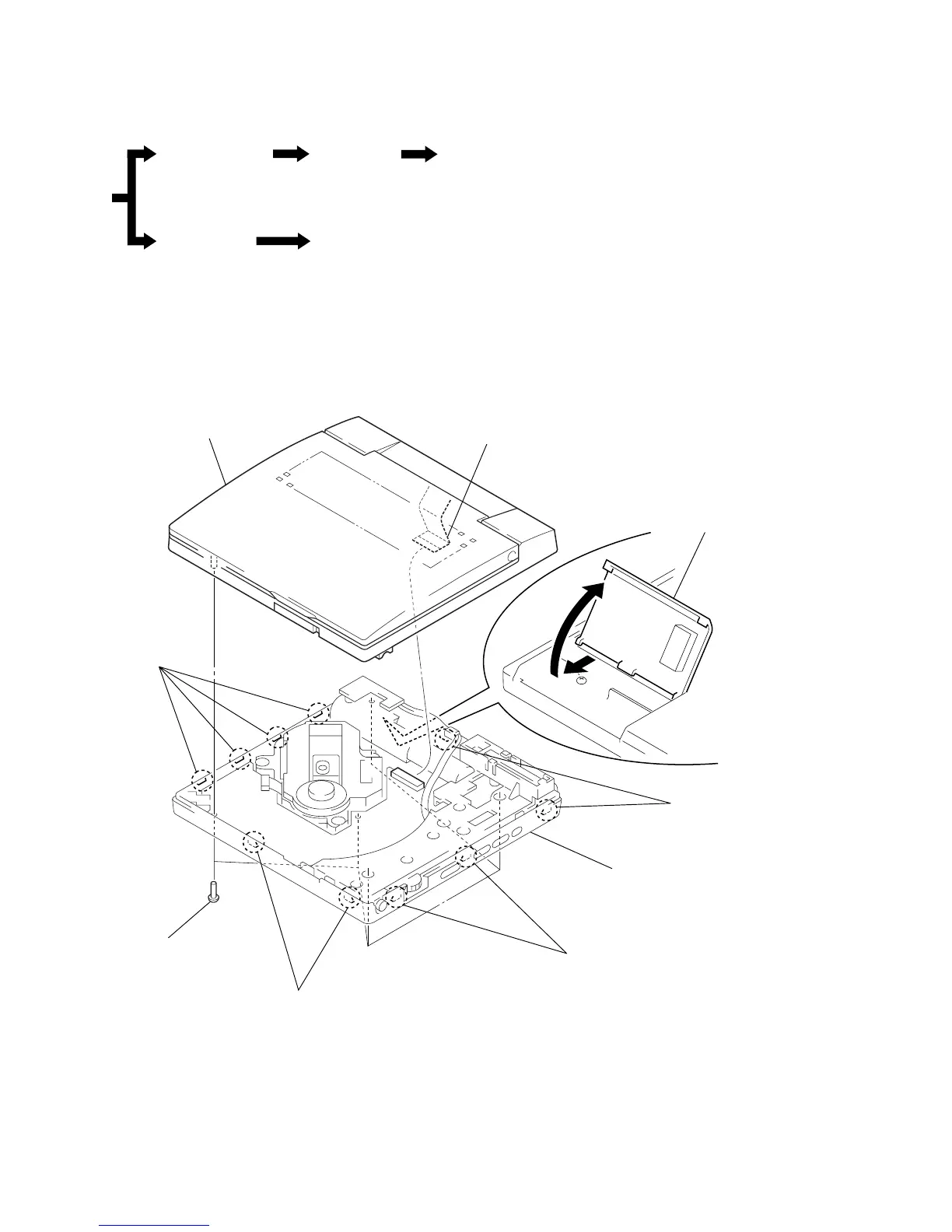

CABINET (LOWER) ASSY
SECTION 3
DISASSEMBLY
Set
Cabinet (lower) assy
Cabinet (upper)
Main board
Optical pick-up
(CDM-2911EBA)
Cabinet (front) sub assy
5 cabinet (upper) assy
4 flat wire (CN301)
1 Open the battery case lid.
3 two claws
3 two claws
6 cabinet (lower) assy
3 two claws
2 five screws
(2
× 8)
3 four claws
Note: Follow the disassembly procedure in the numerical order given.
• This set can be disassembled in the order shown below.
