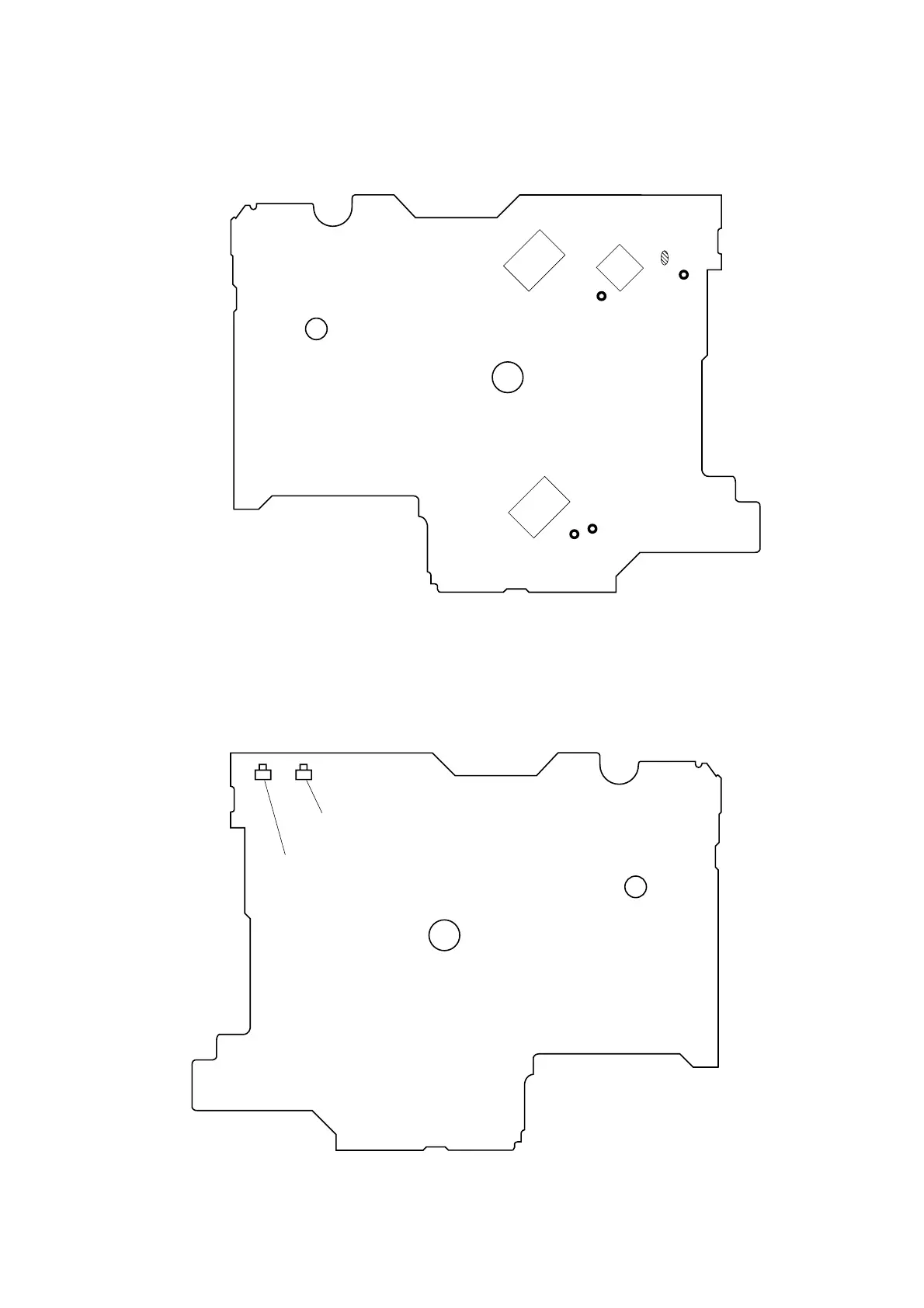

Adjustment Location:
[MAIN Board] (Conductor Side)
IC502
IC501
TP (RF)
TP
(VREF)
TP
(FE)
IC401
TP (TEST)
TP
(GND)
[MAIN Board] (Component Side)
RV502
Focus Gain Adjustment
RV501
Focus Bias Adjustment
