Sony ICF-CD820 - Exploded Views; Electrical Parts List

– 31 –

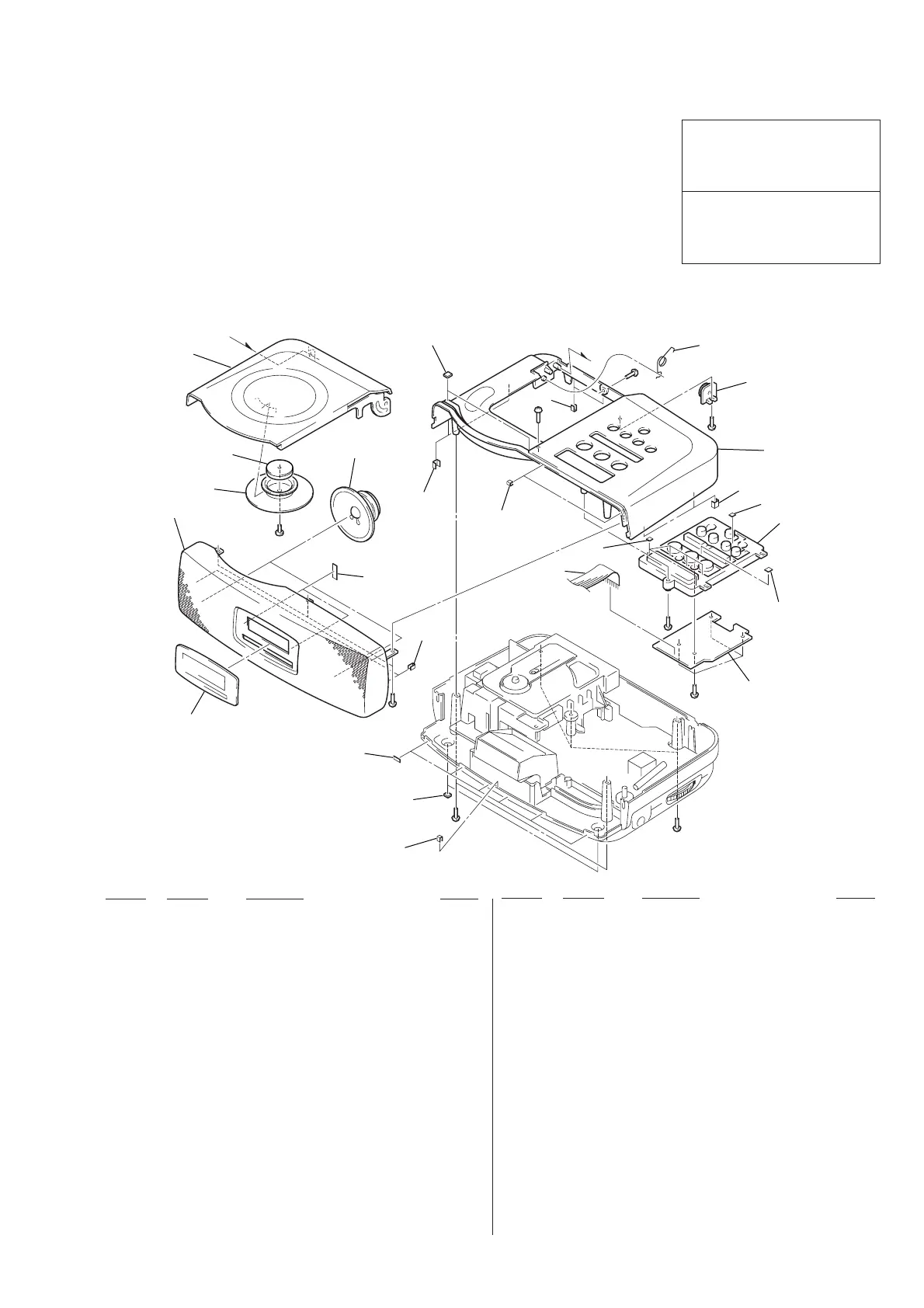

SECTION 6
EXPLODED VIEWS
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
(1) CABINET SECTION
• Abbreviation
AUS: Australian IT : Italian TYPE A
FR : French SP : Singapore TYPE B
1 3-021-532-01 WINDOW (LCD)
(CD820: US, Canadian, AEP, SP, AUS)
1 3-021-532-11 WINDOW (LCD) (CD820: IT)
1 3-021-532-21 WINDOW (LCD) (CD820L: FR)
1 3-021-532-31 WINDOW (LCD) (CD820L: AEP, UK)
2 3-021-528-01 PANEL, FRONT (BLACK)
2 3-021-528-11 PANEL, FRONT (WHITE)
(CD820: US, Canadian)
2 3-021-528-31 PANEL, FRONT (SILVER)
(CD820: IT/CD820L: UK)
3 3-910-112-01 PLATE, CHUCKING
4 1-452-732-11 MAGNET
5 3-021-529-01 LID, CD (BLACK)
5 3-021-529-11 LID, CD (WHITE) (CD820: US, Canadian)
5 3-021-529-31 LID, CD (SILVER) (CD820: IT/CD820L: UK)
6 3-026-560-01 CUSHION (D)
7 3-021-821-01 SPRING (CD LID)
8 3-351-377-11 DAMPER
9 3-021-526-01 CABINET (UPPER) (BLACK)
9 3-021-526-11 CABINET (UPPER) (WHITE)
(CD820: US, Canadian)
9 3-021-526-21 CABINET (UPPER) (SILVER)
(CD820: IT/CD820L: UK)
10 3-021-531-01 BUTTON (BLACK)
10 3-021-531-11 BUTTON (WHITE) (CD820: US, Canadian)
* 11 1-668-915-11 KEY BOARD (TYPE A)
* 11 1-668-915-12 KEY BOARD (TYPE B)
12 1-775-826-11 CORD, CONNECTION
13 3-368-852-01 FOOT
* 14 3-026-564-01 SPACER (A)
* 15 3-026-565-01 SPACER (B)
* 16 3-026-566-01 SPACER (C)
17 2-532-810-00 COSHION 15X5X0.3
18 3-831-441-99 SHEET (1)
SP101 1-504-460-11 SPEAKER (7.7CM) (L-CH)
SP201 1-504-460-11 SPEAKER (7.7CM) (R-CH)
SP101, 201
not supplied
#1
#1
#3
#1
#1
#1
#1
#1
#2
A
A
6
17
5
4
3
2
1
16
15
14
13
14
11
not
supplie
d
10
18
17
12
18
8
9
7
15
