Sony ICF-CD820 - Page 25

– 32 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

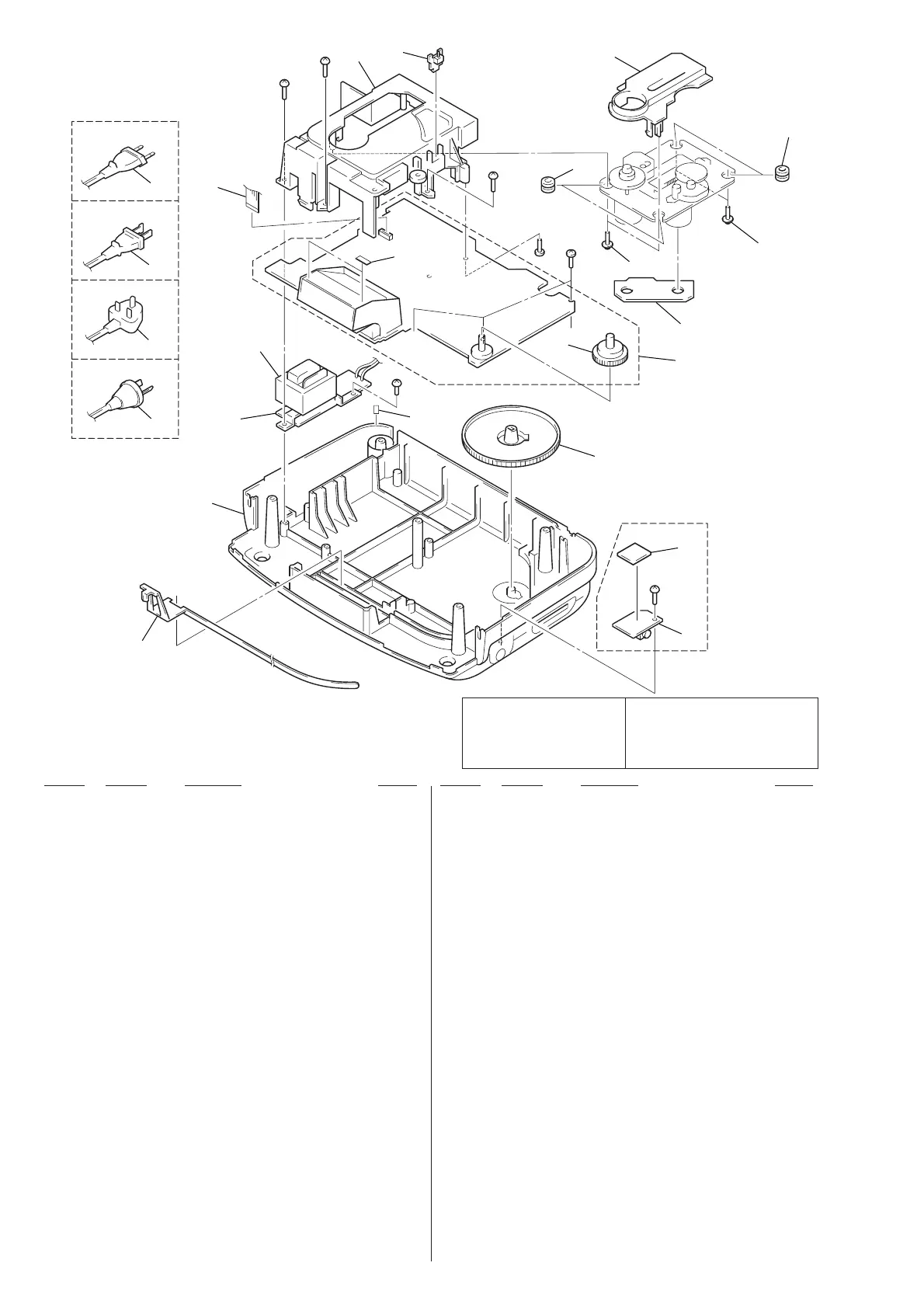

(2) CHASSIS SECTION
51 3-021-534-01 POINTER
52 3-021-527-01 CABINET (LOWER) (BLACK)
(CD820: US, Canadian)
52 3-021-527-11 CABINET (LOWER) (WHITE)
(CD820: US, Canadian)
52 3-021-527-21 CABINET (LOWER) (BLACK)
(CD820: AEP, IT, SP, AUS)
52 3-021-527-41 CABINET (LOWER) (BLACK)
(CD820L: AEP, UK)
52 3-021-527-61 CABINET (LOWER) (BLACK) (CD820L: FR)
52 3-027-579-01 CABINET (LOWER) (SILVER) (CD820: IT)
52 3-027-579-11 CABINET (LOWER) (SILVER) (CD820L: UK)
! 53 1-555-795-00 CORD, POWER
(CD820: AEP, IT, SP/CD820L: AEP, FR)
! 53 1-696-572-21 CORD, POWER (CD820L: UK)
! 53 1-765-458-11 CORD, POWER (CD820: AUS)
! 53 1-769-339-22 CORD, POWER (CD820: US, Canadian)
* 54 1-668-917-11 POWER BOARD (TYPE A)
* 54 1-668-917-12 POWER BOARD (TYPE B)
55 1-769-824-11 WIRE (FLAT TYPE) (16 CORE)
* 56 3-021-530-01 CHASSIS
* 57 1-668-916-11 SWITCH BOARD (TYPE A)
* 57 1-668-916-12 SWITCH BOARD (TYPE B)
58 3-910-116-01 COVER, CD
59 3-910-095-11 RUBBER, VIBRATION PROOF (GREEN)
60 3-910-095-01 RUBBER, VIBRATION PROOF (RED)
61 3-910-096-01 SCREW (2.6X10), +PWH TAPPING
* 62 1-668-918-11 MOTOR BOARD (TYPE A)
* 62 1-668-918-12 MOTOR BOARD (TYPE B)
* 63 A-3679-973-A MAIN BOARD, COMPLETE (CD820: US)
* 63 A-3679-984-A MAIN BOARD, COMPLETE (CD820: AEP, SP)
* 63 A-3679-988-A MAIN BOARD, COMPLETE (CD820: IT)
* 63 A-3679-989-A MAIN BOARD, COMPLETE (CD820L: FR)
* 63 A-3679-990-A MAIN BOARD, COMPLETE (CD820L: AEP)
* 63 A-3679-991-A MAIN BOARD, COMPLETE (CD820L: UK)
* 63 A-3683-000-A MAIN BOARD, COMPLETE (CD820: Canadian)
* 63 A-3683-010-A MAIN BOARD, COMPLETE (CD820: AUS)
64 3-928-285-01 KNOB (VOL)
65 3-928-284-01 KNOB (TUN)
* 66 1-668-919-11 JACK BOARD (TYPE A)
(EXCEPT CD820: US, Canadian)
* 66 1-668-919-12 JACK BOARD (TYPE A)
(EXCEPT CD820: US, Canadian)
* 67 3-026-561-01 SHEET, INSULATING
(EXCEPT CD820: US, Canadian)
* 68 3-026-565-01 SPACER (B)
* 69 3-026-566-01 SPACER (C)
! T901 1-423-904-21 TRANSFORMER, POWER
(CD820: US, Canadian)
! T901 1-423-905-21 TRANSFORMER, POWER
(EXCEPT CD820: US, Canadian)
53
53
53
53
55
56
57
58
60
61
62
63
64
68
65
52
69
59
67
66
51
AEP, FR, IT, SP
US, Canadian
UK
AUS
#1
#3
T901
#1
#3
#1
#3
#1
Except
CD820: US, Canadian
61
54
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
