Sony ICF-CD820 - Page 17

– 24 –

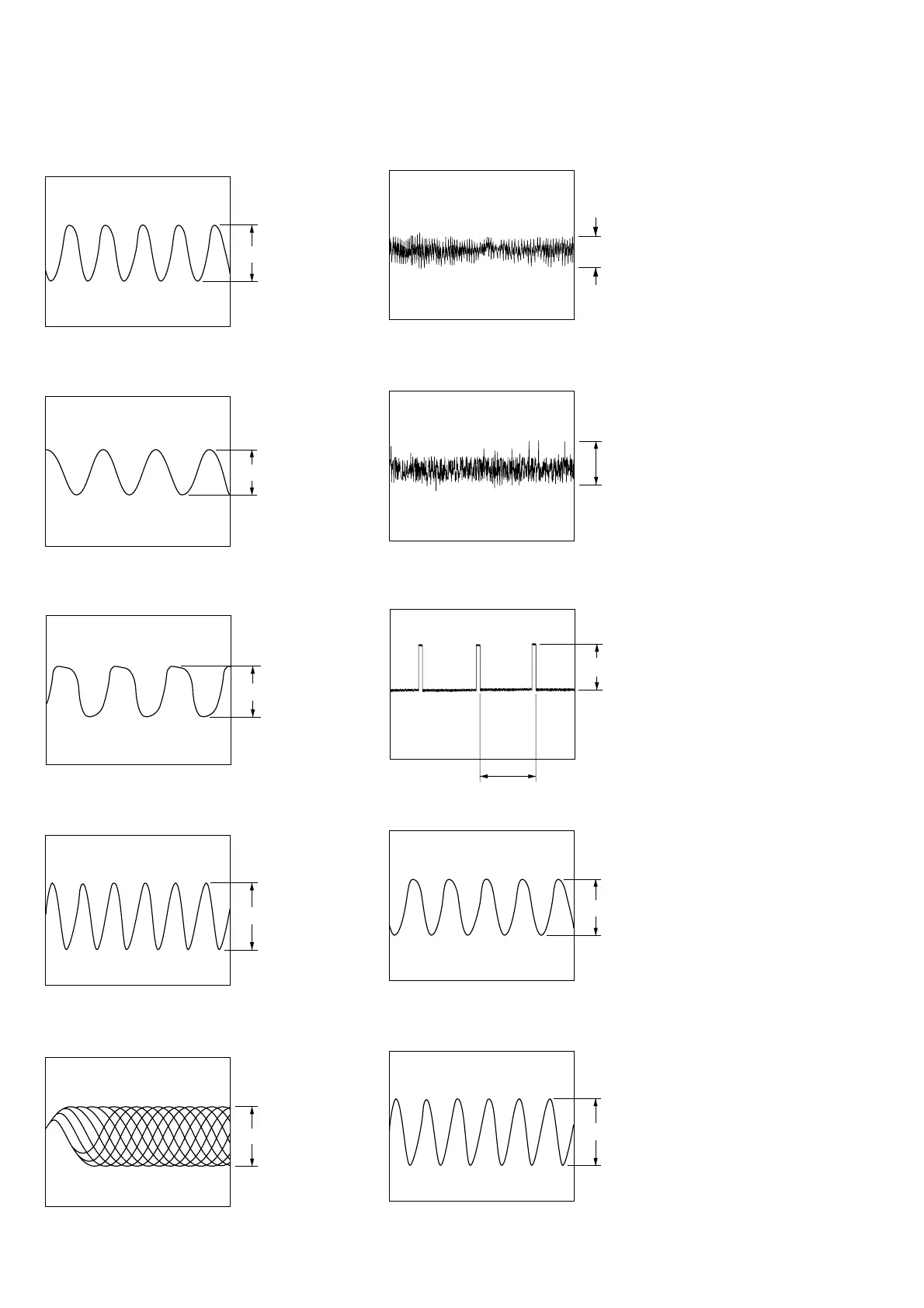

• Waveforms
1 IC401 %ª (X2)
500 mV/DIV, 100 ns/DIV
2 IC401 %• (X1)
2 V/DIV, 100 ns/DIV
3 IC401 %§ (XT2)
2 V/DIV, 20 µs/DIV
4 IC401 %∞ (XT1)
1 V/DIV, 20 µs/DIV
5 IC501 #¡ (RFO) (PLAY MODE)
200 mV/DIV, 500 ns/DIV
6 IC501 $¢ (TET) (PLAY MODE)
500 mV/DIV, 1 ms/DIV
7 IC502 @£ (FOK) (PLAY MODE)
50 mV/DIV, 2 ms/DIV
8 IC502 1 (SCOR) (PLAY MODE)
5 V/DIV, 5 ms/DIV
9 IC502 &¢ (XTAO) (PLAY MODE)
2 V/DIV, 50 ns/DIV
0 IC502 &£ (XTAI) (PLAY MODE)
500 mV/DIV, 50 ns/DIV
1.7 Vp-p
4.19 MHz
6.3 Vp-p
4.19 MHz
4.8 Vp-p
32 kHz
2.4 Vp-p
32 kHz
1.3 ± 0.5 Vp-p
Approx.
138 mVp-p
Approx.
120 mVp-p
4 Vp-p
5.9 ms
6.7 Vp-p
16.93 MHz
1.4 Vp-p
16.93 MHz
