SECTION 1
GENERAL

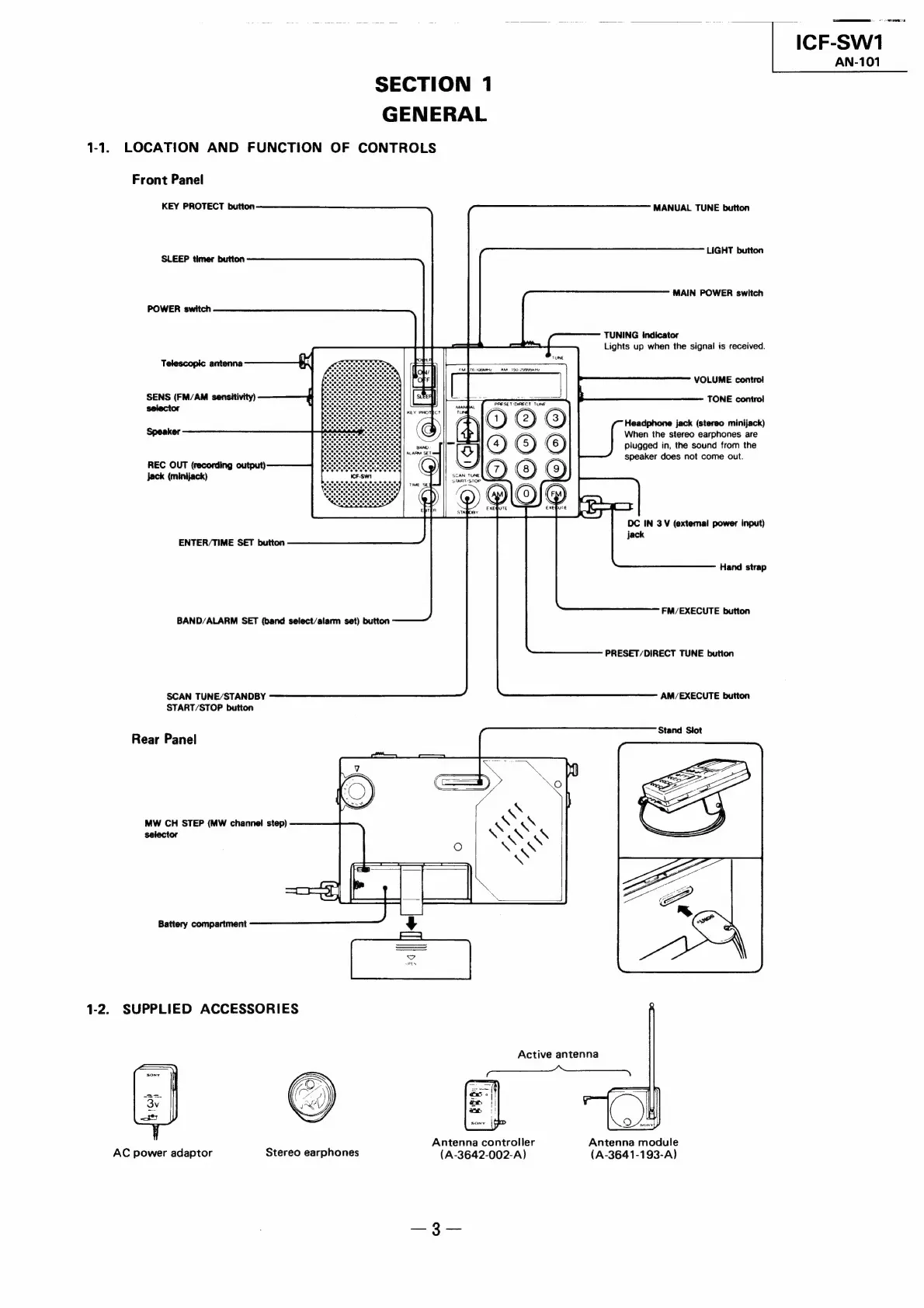

1-1. LOCATION AND FUNCTION OF CONTROLS
Front Panel
KEY PROTECT button MANUAL TUNE button
LIGHT button
SLEEP timer button
MAIN POWER switch
POWER switch
TUNING indicator
Lights up when the signal is received.
Telescopic antenna
VOLUME control
SENS (FM/AM sensitivity) ' TONE control
selector
Hea jack (stereo minijack)
Speaker phone jack ( jack)
When the stereo earphones are
plugged in, the sound from the
speaker does not come out.
REC OUT (recording output)
jack (minijack)
Ca.)
— CT
DC IN 3 V (extemal power input)
jack
ENTER/TIME SET button
Hand strap
FM/EXECUTE button
BAND/ALARM SET (band select/alarm set) button
PRESET/DIRECT TUNE button
SCAN TUNE/STANDBY
START/STOP button
AM/EXECUTE button
Rear Panel
MW CH STEP (MW channel step)
selector
Battery compartment
1-2. SUPPLIED ACCESSORIES
Active antenna
Antenna module
(A-3641-193-A)
Antenna controller
Stereo earphones (A-3642-002-A)
AC power adaptor
