Sony ILCE-7SM2 - Grip Cover Section Parts Diagram; Grip Cover Section Component List; Grip Cover Section Screw Types; #308 Screw Type

ILCE-7SM2_L2
2-10

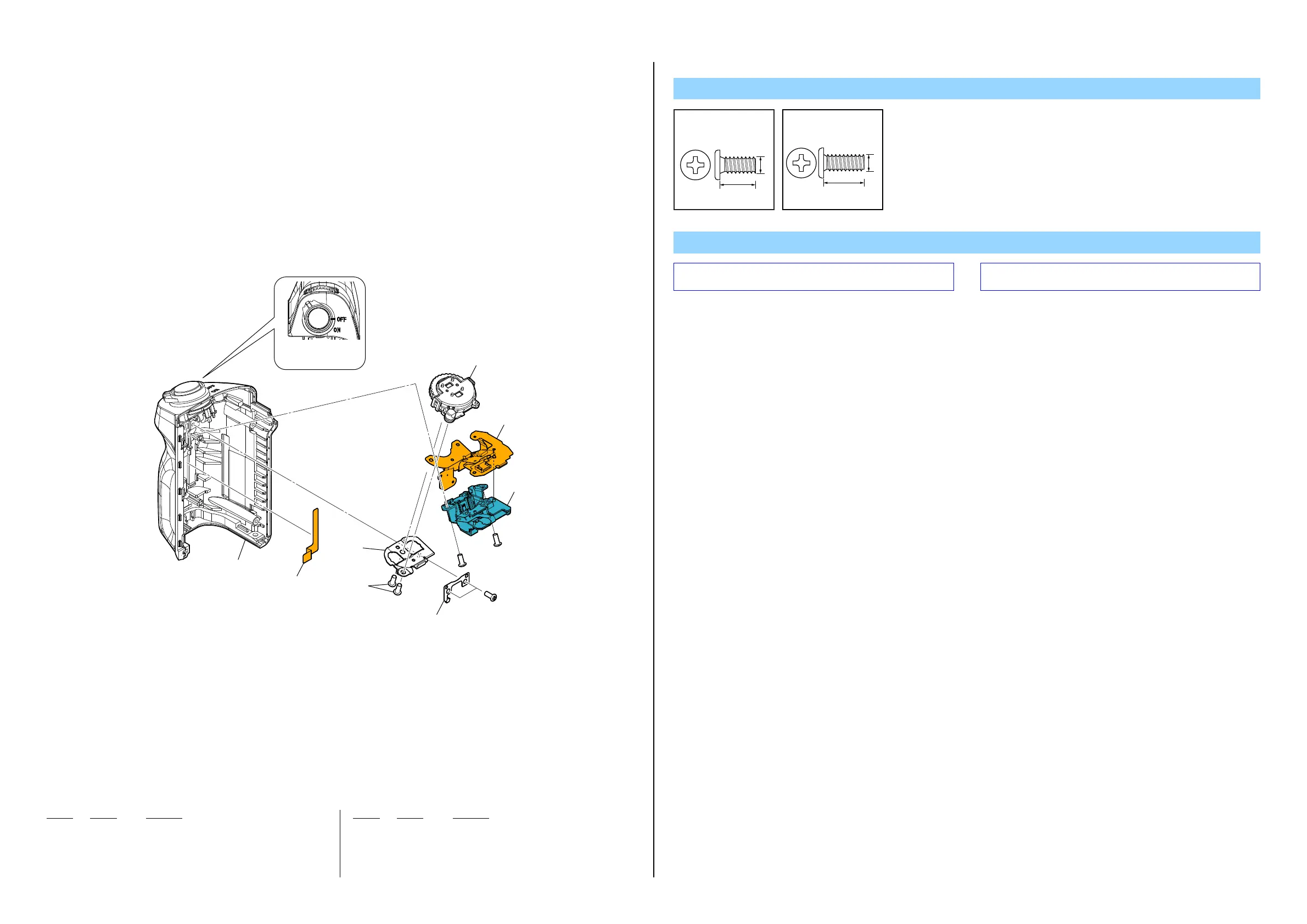

2-1-8. GRIP COVER SECTION
Ref. No. Part No. Description
351 A-2064-124-A DL-1003 FLEXIBLE BOARD, COMPLETE
352 1-492-698-21 SWITCH BLOCK, CONTROL (RL78600)
353 4-559-248-01 PLATE, F GND
354 1-889-592-11 AN-1006 FLEXIBLE BOARD (Note)
355 4-559-249-01 PLATE (F), CONT RETAINER
356 X-2590-703-3 DIAL ASSY (786), CONT
357 X-2592-031-1 COVER ASSY (795), GRIP
#308 4-300-115-01 TAPPING (1.7) (CH)
#327 4-300-113-11 TAPPING (1.7) (CH)
Ref. No. Part No. Description
Screw
#308: M1.7 X 3.5 (Tapping)
(Black)
4-300-115-01
3.5
1.7
#327: M1.7 X 4.0 (Tapping)
(Silver)
4-300-113-11
4.0
1.7
When installing,
adjust this position.
351
352
353
354
357
355
356
#327
#327
#327
#308
(Note)
Note
Note: Refer to “Assembly-5: Notes on Assembling the AN-1006
Flexible Board” on page 3-1.
Note:
 3-1ページの“Assembly-5: NotesonAssemblingtheAN-
1006FlexibleBoard”を参照してください。
