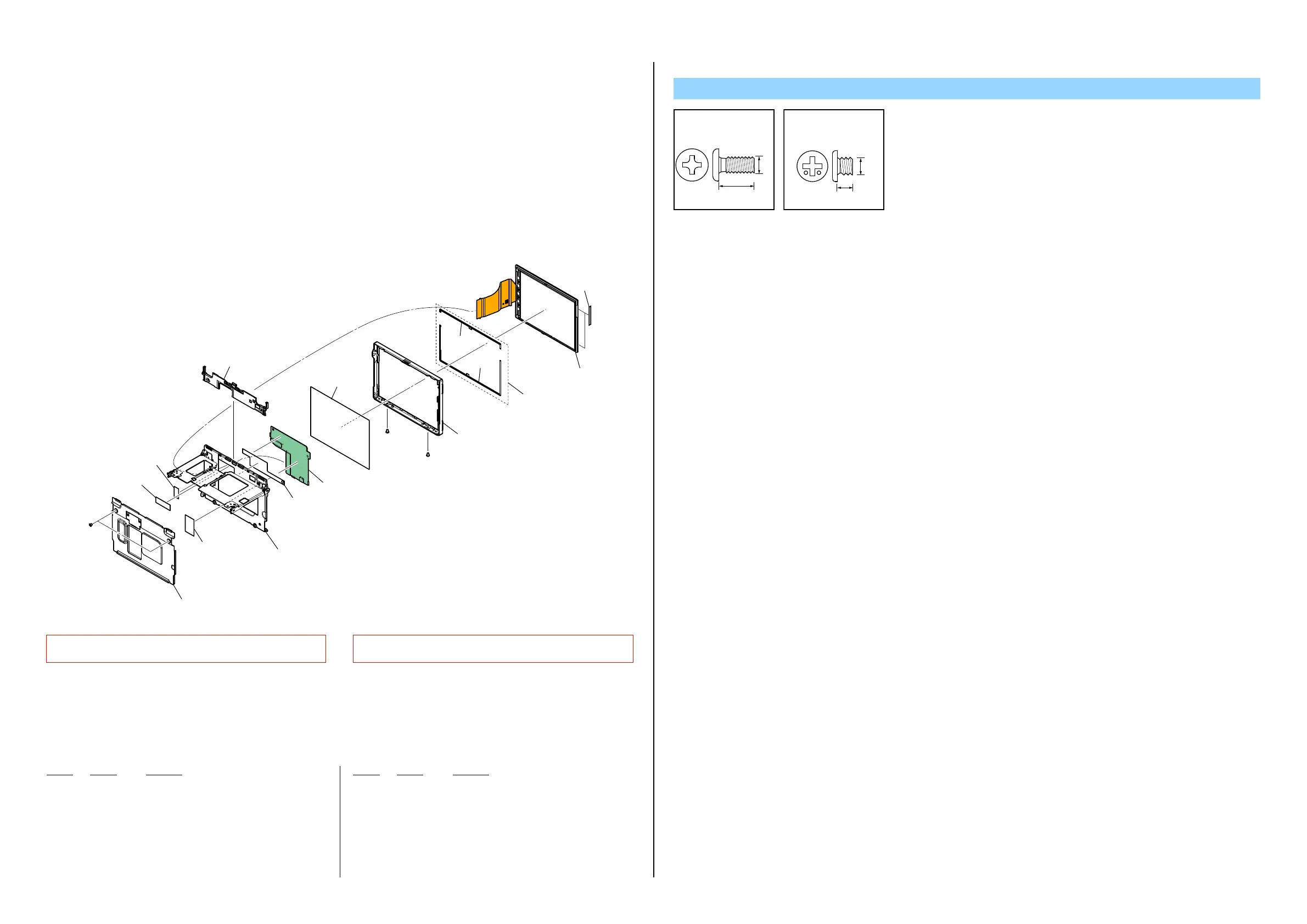

2-1-9. LCD SECTION
ns: not supplied
Ref. No. Part No. Description
401 X-2591-271-1 LC CAB REAR PLATE ASSY (786)
402 4-559-444-01 SHEET, LC PC BOARD ADHESIVE
403 4-564-830-01 SHEET, PANEL FLEXIBLE ADHESIVE
404 X-2590-708-2 HINGE ASSY (786)
405 4-559-445-01 SHEET, LC BLIND
406 4-559-272-01 CABINET (REAR (786)), LC
407 A-2064-120-A LC-1023 BOARD, COMPLETE
408 4-564-829-01 SHEET, LC LIGHT INTERCEPTION
409 4-559-271-02 CABINET (FRONT (786)), LC
410 4-575-264-01 SHEET (61000), LCD ADHESIVE
411 4-567-051-01 SHEET (S), LIGHT INTERCEPTION
LCD901 1-811-695-21 PANEL MODULE (PE5-BJD)
#196 4-178-124-01 SPECIAL (M1.4 (D2.75)) (Note)
#239 4-287-435-11 SCREW (M1.4 EUROPE) TYPE (Note)
Ref. No. Part No. Description
Screw
#196: M1.4 X 2.0
(Black)
4-178-124-01:
2.0
1.4
#239: M1.4 X 1.4
1.4
1.4
(Red)
4-287-435-11
401
405
403
404
402
406
408
409
407
410
411
#239
#196
ns
ns
#196
LCD901
ns
(Note)
(Note)
(Note)
Note: This screw cannot be reused. Discard the screw removed
once in servicing. Instead, use a new screw.
Note:
 このねじは再利用することができません。サービス対応時
に一度でも外した場合は新品のねじと交換してください。
