9

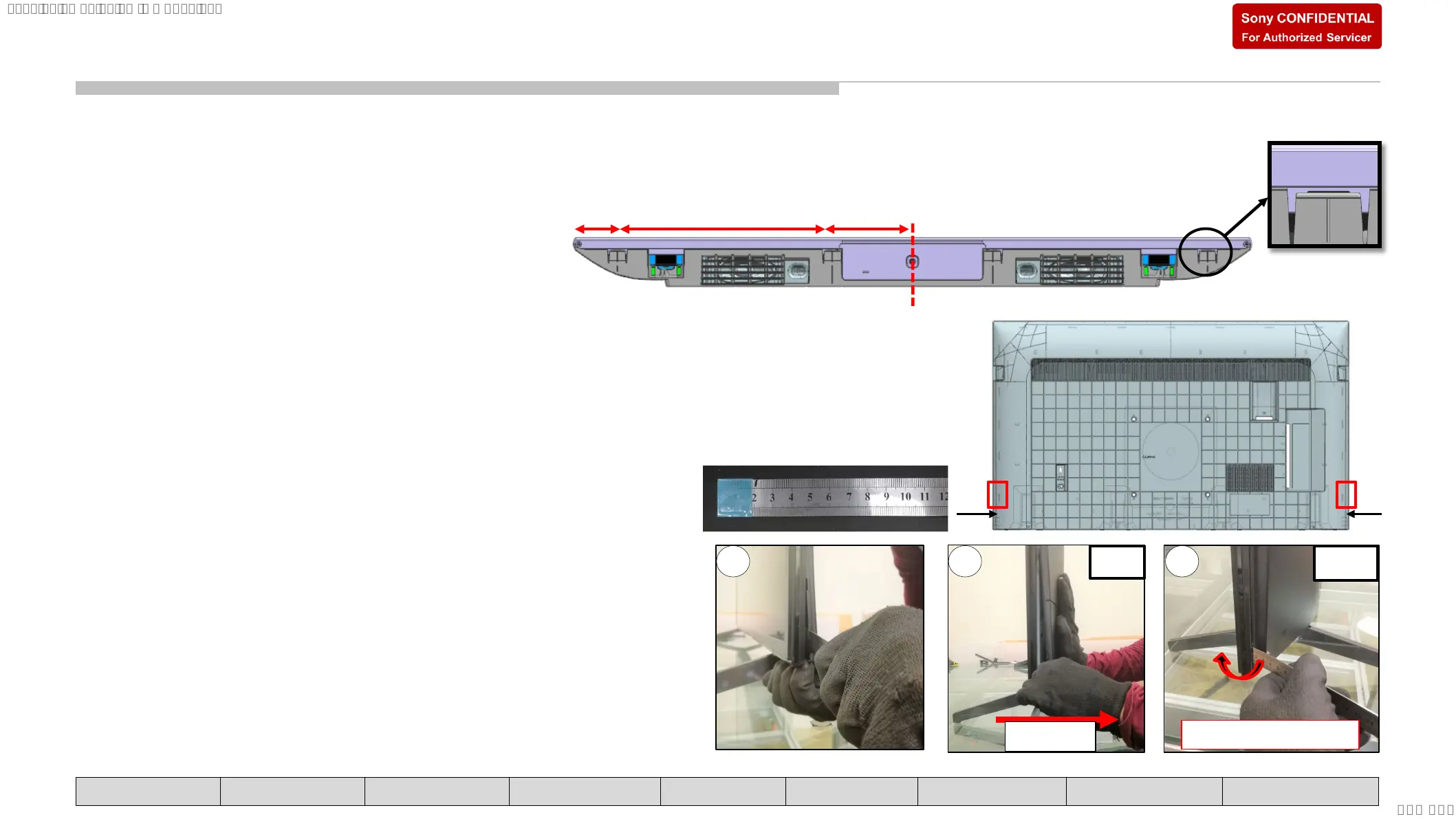

3. Unhook corner hook.
① Releasing the corner hook by pulling the Rear Cover corner and
insert a jig or ruler.
② Ensure the jig or ruler is pulled backward.
③ DO NOT pivot on bezel when inserting the jig or ruler.
REAR COVER
Backward
OK
Do NOT pivot on bezel
NG
Bottom Hook Position
32
1
Ruler or jig to release corner hook
*Wrap ruler with tape to prevent scratch
62mm
306mm
113mm
SECTION 1: KD-43X8*K
TOOLS & EQUIPMENTS FFC PRECAUTIONS SECTION 1 SECTION 2 SECTION 3 SECTION 4 SECTION 5 SMART CORE APPENDIX
1-1. DISASSEMBLY AND REMOVAL CAUTION
