KV-EF29M31/EF29M61/EF29M80/RM-881
EF29M90/EF29M91/EF29M80/RM-881
• Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
• Items with no part number and no
description are not stocked because they
are seldom required for routine service.
• The construction parts of an assembled
part are indicated with a collation number
in the remark column.

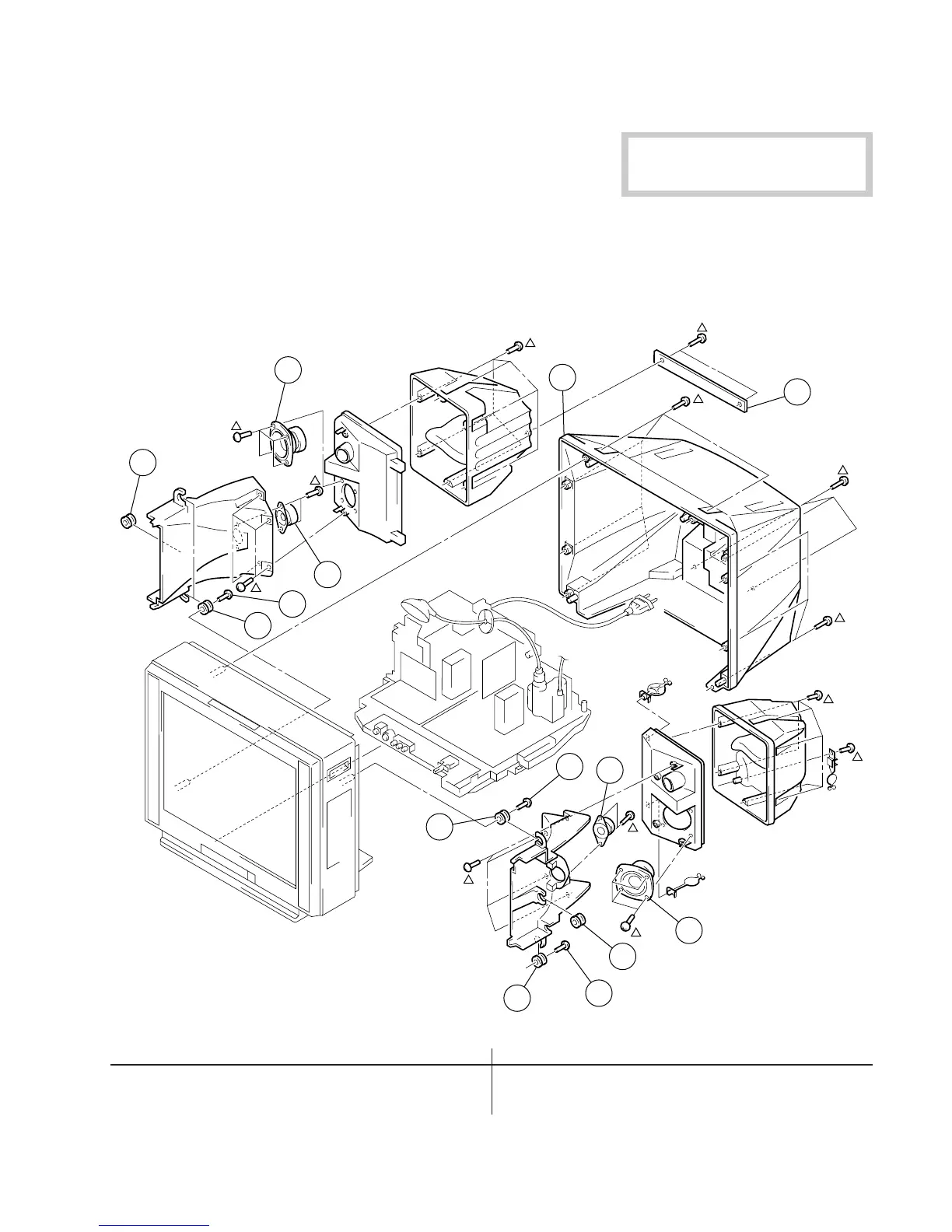

7-1. SPEAKER BOX
¢ : 7-685-663-71 SCREW +BVTP 4X16
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
SECTION 7
EXPLODED VIEWS
The components identified by shading
and mark ¡ are critical for safety.
Replace only with part number specified.
1
4
3
5
2
1
2
3
4
1
2
1
1
6
1 4-374-745-11 CUSHION (A)
2 4-384-076-01 SCREW (4X16), TAPPING, +P
3 1-505-474-11 SPEAKER (5CM)
4 1-505-473-11 SPEAKER (12CM)
5 4-062-945-01 COVER, REAR
6 * 4-057-639-01 STAY, SPEAKER
