Sony LMD-2765MD - Technical Specifications; General and Picture Performance; Medical and Safety Standards

Specifications
28
Specifications
Picture performance
LCD panel a-Si TFT Active Matrix
Pixel efficiency 99.99%
Viewing angle (panel specification)
89°/89°/89°/89° (typical) (up/down/
left/right, contrast > 10:1)
Efficient picture size
597.9 × 336.3, 686.0 mm (w/h, dia)
(23
5
/8 × 13
1
/4, 27
1
/8 inches)
Resolution H 1,920 dots, V 1,080 lines
Aspect ratio 16:9
Input
VIDEO input (NTSC/PAL) connector
(LMD-2765MD only) BNC type (1)
1 Vp-p ± 3 dB sync negative
S-VIDEO input connector
(LMD-2765MD only) 4-pin mini-DIN (1)
Y: 1 Vp-p ± 3 dB sync negative
C: 0.286 Vp-p ± 3 dB (NTSC
burst signal level)
0.3 Vp-p ± 3 dB (PAL burst
signal level)
HD15 input connector
(LMD-2765MD only) D-sub 15-pin (1)
R/G/B: 0.7 Vp-p, sync positive
(Sync On Green, 0.3 Vp-p
sync negative)
Sync: 0.3 Vp-p - 4.0 Vp-p
(polarity free, H/V separate
sync)
Plug & Play function:
corresponds to DDC2B
DVI-D input connector
DVI-D (2)
TMDS single link
SDI input BNC type (2)
Remote input connector
Serial remote
D-sub 9-pin (RS-232C) (1)
RJ-45 modular connector
(ETHERNET) (1)
DC IN connector
DC 24V
Output
SDI output connector
BNC type (1)
Active through
DVI output connector
DVI-D connector (1)
Active through
DC 5V OUT Round type pin (female) (1)
General
Power LCD monitor
DC IN: 24 V 4.1 A (Supplied from AC
adaptor)
AC Adaptor (Sony, AC-120MD)
AC IN: 100-240 V, 50/60 Hz, 2.5-1.0 A
DC OUT: 24 V, 6.25 A
Power consumption
Maximum: approx. 102 W
Operating conditions
Temperature
0 °C to 35 °C (32 °F to 95 °F)
Recommended temperature
20 °C to 30 °C (68 °F to 86 °F)
Humidity 30% to 85% (no condensation)
Pressure 700 hPa to 1060 hPa
Storage and transport temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Storage and transport humidity
0% to 90% (no condensation allowed)
Storage and transport pressure
700 hPa to 1060 hPa
Accessories supplied
AC adaptor (AC-120MD) (1)
Before Using This Unit (1)
CD-ROM (including the Instructions
for Use) (1)
Service Contact List (1)
Optional accessories
Monitor stand
SU-560
Signal cable
SMF-405
Medical Specifications
Protection against electric shock:
Class I
Protection against harmful ingress of water:
IPX5 (only the front side)
IPX2 (other sides)

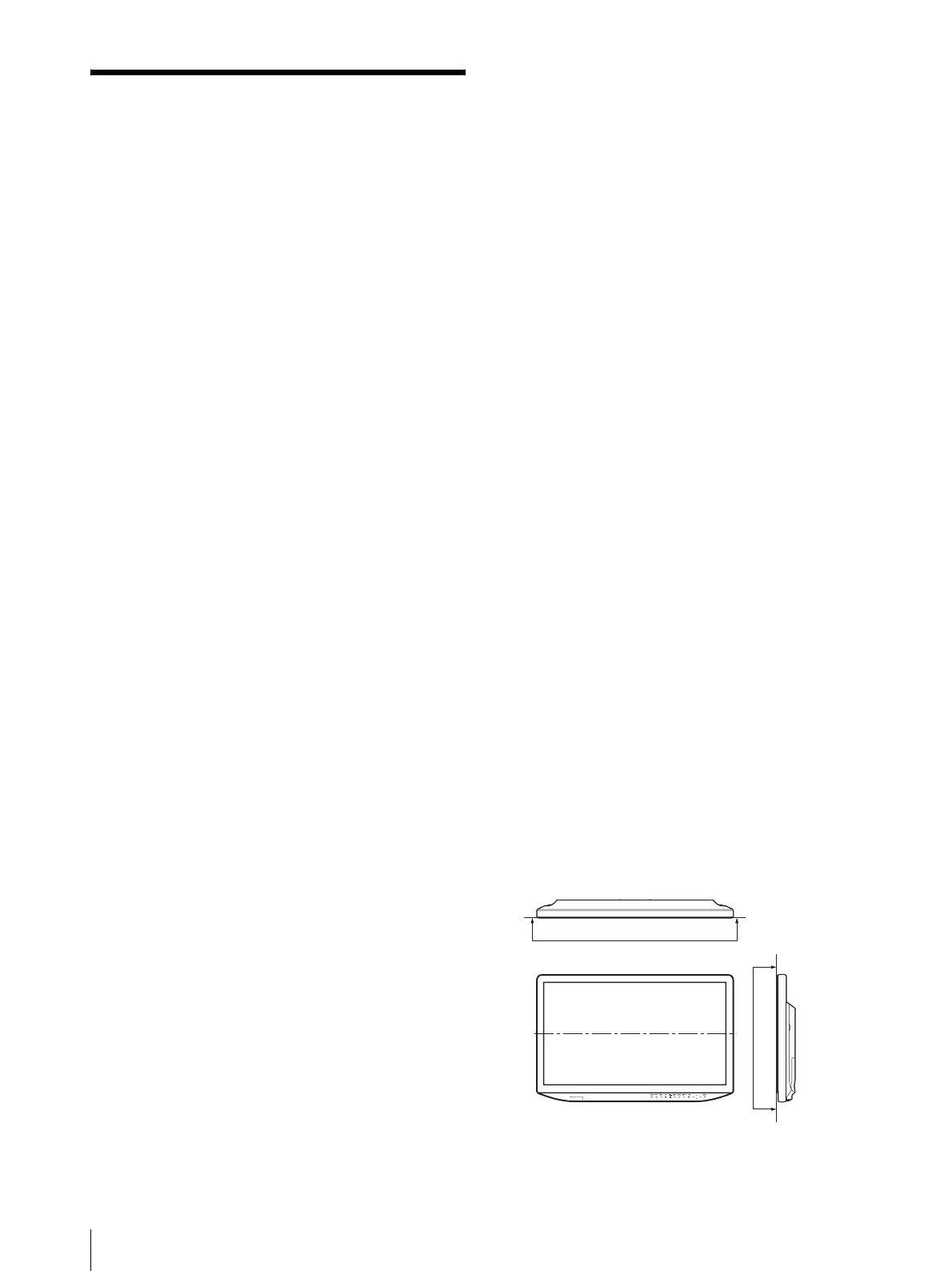

The protection level against water entry is IPX5 for the
front side and IPX2 for the other sides illustrated above.
IPX5
IPX5
