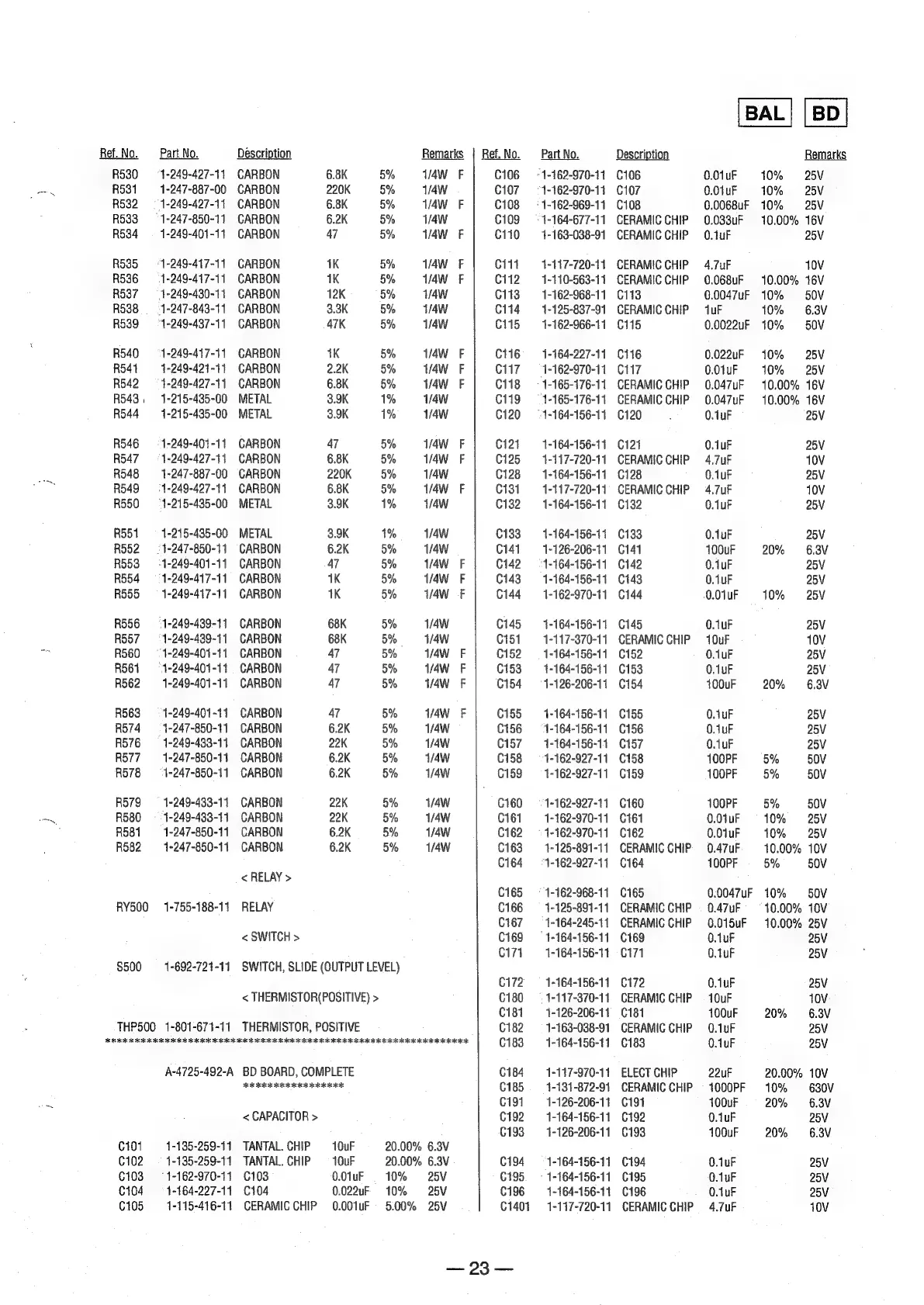

Sony MDS-E12 - SECTION 7 ELECTRICAL PARTS LIST; < CAPACITOR >; < CONNECTOR >; < DIODE >

Ref. No. Part No. Description Remarks | RefNo. PartNo. Description Remarks
R530 =: 1-249-427-11 CARBON 6.8K 5% V/4w F C106 ~—s- 1-162-970-11 C106 0.01uF 10% 25V
R531 {-247-887-00 CARBON 220K 5% 1/4W C107 ~—s- 1-162-970-1141 C107 0.01uF 10% 25V
R532 ~=—- 1-249-427-11 CARBON 6.8K 5% V4w F C108 = 1-162-969-11 C108 0.0068uF 10% 25V
R583 ~—s-: 1-247-850-11 CARBON 6.2K 5% 1/4W C109 ~=—s- 1-164-677-11 CERAMIC CHIP 0.033uF 10.00% 16V
R534 = 1-249-401-11 CARBON 47 5% V4w F C110 ~—-1-163-038-91 CERAMIC CHIP 0.iuF 25V
R535 ~=—«- 1-249-417-11 CARBON 1K 5% W4w F C111 1-117-720-11. CERAMIC CHIP 4.7uF 10V
R536 ~—s- 1-249-417-11 CARBON 1K 5% 1/4wW OF C112. ~—s-1-110-563-11 CERAMIC CHIP 0.068uF 10.00% 16V
R537 ~—s: 1-249-430-11 CARBON 12K 5% 1/4W C113) 1-162-968-11 C113 0.0047uF 10% 50V
R538 ~—s- 1-247-843-11 CARBON 3.3K 5% 1/4W C114 =~ 1-125-837-91 CERAMIC CHIP uF 10% 6.3V
R539 ~—s: 1-249-437-11 CARBON 47K 5% V/4Ww C115 = 1-162-966-11 C115 0.0022uF 10% 50V
R540 ~=—- 1-249-417-11 CARBON 1K 5% /4wW OF C116 = 1-164-227-11 C116 0.022uF 10% 25V
R541 1-249-421-11 CARBON 2.2K 5% V/4w F C117 —s- 1-162-970-11 C117 0.01uF 10% 25V
R542 = 1-249-427-11 CARBON 6.8K 5% V/4w F C118 = 1-165-176-11 CERAMIC CHIP 0.047uF 10.00% 16V
R543. 1-215-435-00 METAL 3.9K 1% V/4W C119 ==. 1-165-176-11 CERAMIC CHIP 0.047uF 10.00% 16V
R544 = 1-215-435-00 METAL 3.9K 1% 1/4W C120 =. 1-164-156-11 C120 . 0.1uF 25V
R546 =: 1-249-401-11 CARBON 47 5% 1/4W OF C121 1-164-156-11 C121 0.1uF 25V
R547 ~—- 1-249-427-11 CARBON 6.8K 5% 1/4W F C125 1-117-720-11 CERAMIC CHIP 4.7uF 10V
R548 ~—«-1-247-887-00 CARBON 220K 5% 1/4W C128 = 1-164-156-11 C128 0.1uF 25V
R549 ~—s- 1-249-427-11 CARBON 6.8K 5% 1/4W F C131 1-117-720-11. CERAMIC CHIP 4.7uF 10V
R550 ~—s-: 1-215-435-00 METAL 3.9K 1% 1/4W C132 = 1-164-156-11 0132 0.1uF 25V
R551 = 1-215-435-00 METAL 3.9K 1% 1/4W C1338) 1-164-156-11 C133 0.1uF 25V
R552. ~—s- 1-247-850-11 CARBON 6.2K 5% 1/4W C141 1-126-206-11 0141 100uF 20% 6.3V
R553 —s- 1-249-401-11 CARBON 47 5% 1/4W F C142 =. 1-164-156-11 C142 0.1uF 25V
R554 ~—- 1-249-417-11 CARBON 1K 5% 1/4W F C143): 1-164-156-11 C143 0.1uF 25V
R555 ~—- 1-249-417-11 CARBON 1K 5% V4w F C144: 1-162-970-11 0144 0.01 uF 10% 25V
R556 ~—- 1-249-439-11 CARBON 68K 5% 1/4W C145 1-164-156-11 0145 0.1uF 25V
R557 ~—s- 1-249-439-11 CARBON 68K 5% 1/4W C151 1-117-370-17 CERAMIC CHIP 10uF 10V
R560 =: 1-249-401-11 CARBON 47 5% 1/4W OF C152 = 1-164-156-11 0152 0.1uF 25V
R561 =: 1-249-401-11 CARBON 47 5% 1/4W OF C153: 1-164-156-11 0153 0.1uF 25V
R562 = 1-249-401-11 CARBON 47 5% V/4w F C154 ~—s 1-126-206-11 6154 100uF 20% 6.3V
R563 =: 1-249-401-11 CARBON 47 5% V/4w F C155: 1-164-156-11 0155 0.1uF 25V
R574 ~—- 1-247-850-11 CARBON 6.2K 5% 1/4W C156 ~—s- 1-164-156-11 C156 0.1uF 25V
R576 ~=—- 1-249-433-11 CARBON 22K 5% 1/4W C157: 1-164-156-11 C157 0.1uF 25V
R577 ~—s- 1-247-850-11 CARBON 6.2K 5% 1/4W C158 =. 1-162-927-11 C158 100PF 5% 50V
R578 ~—- 1-247-850-11 CARBON 6.2K 5% 1/4W C159 = 1-162-927-11 C159 100PF 5% 50V
R579 = 1-249-433-11 CARBON 22K 5% 1/4W C160 =: 1-162-927-11 0160 100PF 5% 50V
R580 ~—s: 1-249-433-11 CARBON 22K 5% 1/4W 0161 1-162-970-11 €161 0.01 uF 10% 25V
R581 = 1-247-850-11 CARBON 6.2K 5% 1/4W C162 = 1-162-970-11 0162 0.07uF 10% 25V
R582 1-247-850-11 CARBON 6.2K 5% 1/4W C163) = 1-125-891-11 CERAMIC CHIP 0.47uF 10.00% 10V
C164 =. 1-162-927-11 0164 100PF 5% 50V
< RELAY >
C165 =: 1-162-968-11 C165 0.0047uF 10% 50V
RY500 1-755-188-11 RELAY C166 = 1-125-891-11. CERAMIC CHIP 0.47uF = 10.00% 10V
C167 —s 1-164-245-11 CERAMIC CHIP 0.015uF 10.00% 25V
< SWITCH > Ci69 = 1-164-156-11 C169 0.1uF 25V
C171 1-164-156-11 C171 0.1uF 25V
$500 1-692-721-11 SWITCH, SLIDE (QUTPUT LEVEL)
Ci72 = 1-164-156-11 C172 0.1uF 25V
< THERMISTOR(POSITIVE) > C180 = 1-117-370-11 CERAMIC CHIP | 10uF 10V
C181 1-126-206-11 0181 100uF 20% 6.3V
THP500 1-801-671-11 THERMISTOR, POSITIVE C182 = 1-163-038-91 CERAMIC CHIP 0.1uF 25V
fe ft oe oi it 2 ie a oie aft ake oe ok oe of oR oe io oie oe oo ok ea oe RE OR ARR AE RRR RR KR RK KARE ERK C183 1-164-156-11 C183 0.1uF 25V
A-4725-492-A BD BOARD, COMPLETE C184 = 1-117-970-11 ELECT CHIP 22uF 20.00% 10V
Tek toksicdetok see sok ib C185. 1-131-872-91 CERAMICCHIP 1000PF 10% 630V
C191 1-126-206-11 C191 100uF 20% 6.3V
< CAPACITOR > C192 = 1-164-156-11 (192 0.1uF 25V
C193 = 1-126-206-11 €193 100uF 20% 6.3V
C101 1-135-259-11 TANTAL. CHIP 10uF 20.00% 6.3V
C102. = 1-135-259-11 TANTAL.CHIP = 10uF 20.00% 6.3V C194 =: 1-164-156-17 _0194 0.1uF 25V
C103 = 1-162-970-11 €103 O.01uF 10% 25V C195 = 1-164-156-11 0195 0.1uF 25V
C104 = 1-164-227-11 C104 0.022uF 10% 25V Ci96—s- 1-164-156-11 C196 0.1uF 25V
C105 = s:«1-115-416-11 CERAMIC CHIP 0.00iuF 5.00% 25V C1401 1-117-720-11 CERAMIC CHIP 4.7uF 10V
293
