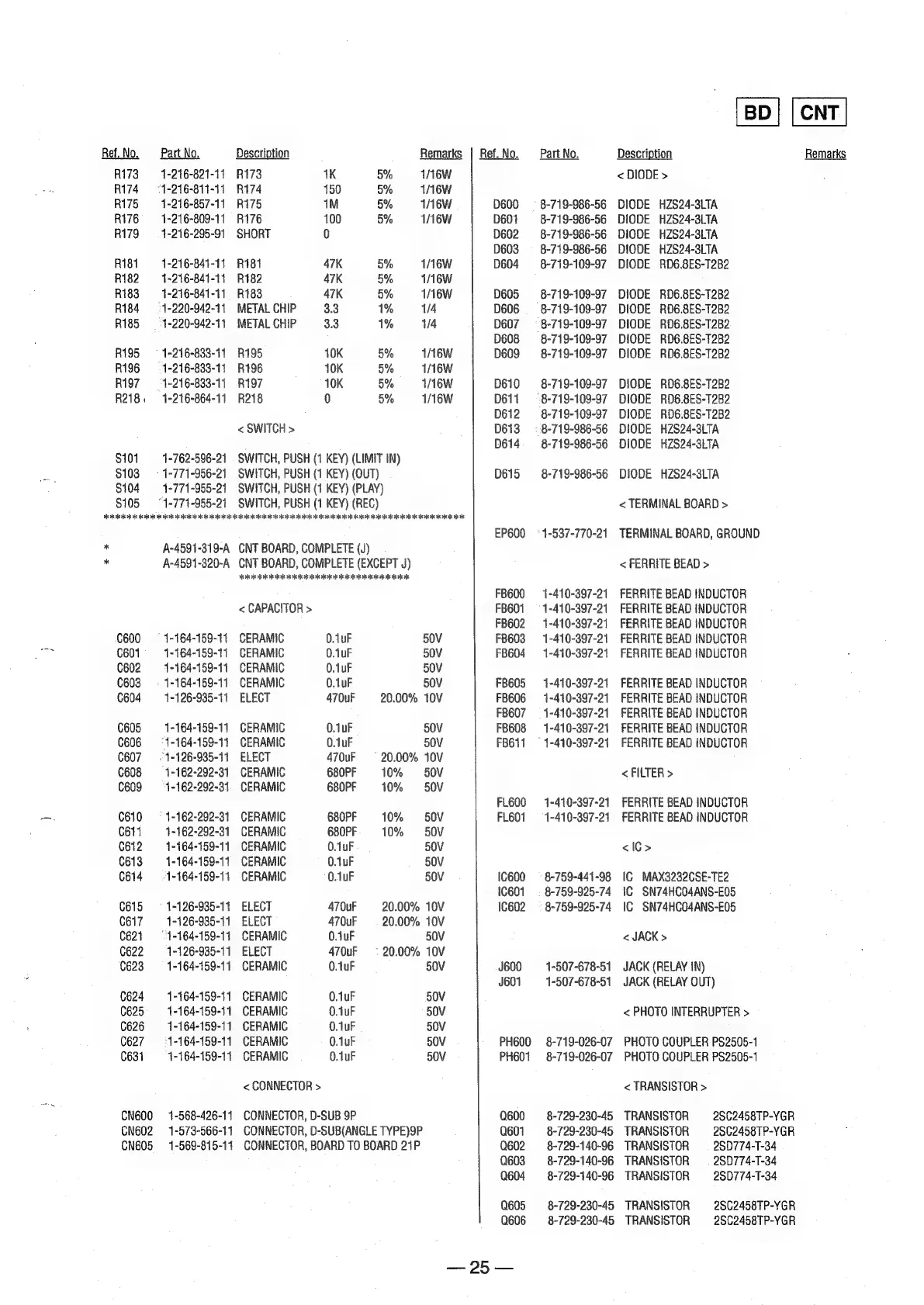

Sony MDS-E12 - SECTION 7 ELECTRICAL PARTS LIST; < CAPACITOR >; < CONNECTOR >; < DIODE >

Ref. No. Part No, Description Remarks | Ref.No. PartNo. Description Remarks
R173: 1-216-821-11 R173 1K 5% TN6wW < DIODE >
R174 —s- 1-216-811-11 R174 150 5% T6W
R175 = 1-216-857-11 R175 1M 5% WN6W D600 = 8-719-986-56 DIODE HZS24-3LTA
R176: 1-216-809-11 R176 100 5% W16W D601 =8-719-986-56 DIODE HZS24-3LTA
R179 = 1-216-295-91 SHORT 0 D602 8-719-986-56 DIODE HZS24-3LTA
D603 8-719-986-56 DIODE HZS24-3LTA
R181 1-216-841-11 R181 47K 5% 116W D604 8-719-109-97 DIODE RD6.8ES-T2B2
R182 = 1-216-841-11 R182 47K 5% TN6W
R183: 1-216-841-11 R183 47K 5% 1N6W D605 8-719-109-97 DIODE RDE6.8ES-T2B2
R184 =. 1-220-942-11 METAL CHIP 3.3 1% 1/4 D606 = 8-719-109-97 DIODE RD6.8ES-T2B2
R185 —- 1-220-942-11 METAL CHIP 3.3 1% 1/4 D607 ~=—- 8-719-109-97 DIODE RD6.8ES-T2B2
D608 8-719-109-97 DIODE RD6.8ES-T2B2
R195 = 1-216-833-11 R195 10K 5% 1/16W D609 =8-719-109-97 DIODE RD6.8ES-T2B2
R196 =: 1-216-833-11 R196 10K 5% TN6W
R197 =: 1-216-833-11 R197 10K 5% WAI6W D610 8-719-109-97 DIODE RD6.8ES-T2B2
R218. 1-216-864-11 R218 0 5% IN6W D611 =: 8-719-109-97 DIODE RD6.8ES-T2B2
D612 ~=8-719-109-97 DIODE RD6.8ES-T2B2
< SWITCH > D613 ~—- 8-719-986-56 DIODE HZS24-3LTA
D614. ~—-8-719-986-56 DIODE HZS24-3LTA
$101 1-762-596-21 . SWITCH, PUSH (1 KEY) (LIMIT IN)
$103 — 1-771-956-21 SWITCH, PUSH (1 KEY) (OUT) D615 8-719-986-56 DIODE HZS24-3LTA
$104 1-771-955-21 SWITCH, PUSH (1 KEY) (PLAY)
$105 =. 1-771-955-21 SWITCH, PUSH (1 KEY) (REC) < TERMINAL BOARD >
Je SSS SOS AG OS OSS SSE SIGS RIOR RAR AORISIORE IR RR ACI HK A ASHORE
EP600 = 1-537-770-21 TERMINAL BOARD, GROUND
* A-4591-319-A CNT BOARD, COMPLETE (J)
a A-4591-320-A CNT BOARD, COMPLETE (EXCEPT J) < FERRITE BEAD >
fH ee a es 9 ke 2 ke at of oe a ae ot fe 2 2k as a8 at af fs
FB600 = 1-410-397-21 FERRITE BEAD INDUCTOR
< CAPACITOR > FB601 = 1-410-397-21 FERRITE BEAD INDUCTOR
FB602 1-410-397-21 FERRITE BEAD INDUCTOR
C600 = 1-164-159-11 CERAMIC 0.1uF 50V FB603 —1-410-397-21 FERRITE BEAD INDUCTOR
C601 1-164-159-11 CERAMIC 0.1uF 50V FB604 = 1-410-397-21 FERRITE BEAD INDUCTOR
C602 1-164-159-11 CERAMIC 0.1uF 50V
C603 = 1-164-159-11 CERAMIC 0.1uF 50V FB605 = 1-410-397-21 FERRITE BEAD INDUCTOR
C604 = 1-126-935-11 ELECT 470uF 20.00% 10V FB606 1-410-397-21 FERRITE BEAD INDUCTOR
FB607 = 1-410-397-21 FERRITE BEAD INDUCTOR
C605 = 1-164-159-11 CERAMIC 0.1uF 50V FB608 1-410-397-21 FERRITE BEAD INDUCTOR
C606 =: 1-164-159-11 CERAMIC 0.1uF 50V FB611 = 1-410-397-21 FERRITE BEAD INDUCTOR
C607 =: 1-126-935-11 ELECT 470uF = 20.00% 10V
C608 = 1-162-292-31 CERAMIC 680PF 10% 50V < FILTER >
C609 =: 1-162-292-31. CERAMIC 680PF 10% 50V
FL600 = 1-410-397-21 FERRITE BEAD INDUCTOR
C610 =: 1-162-292-31 CERAMIC 680PF 10% 50V FL601 = 1-410-397-21 FERRITE BEAD INDUCTOR
C611: 4-162-292-31 CERAMIC 680PF- 10% 50V
C612 1-164-159-11 CERAMIC 0.1uF 50V <IC>
C613 =. 1-164-159-11 CERAMIC 0.1uF 50V
C614. =: 1-164-159-11 CERAMIC 0.1uF 50V IG600 = 8-759-441-98 IG MAX3232CSE-TE2
C601 = 8-759-925-74 IC SN74HCO4ANS-E05
C615 = 1-126-935-11 ELECT 470uF 20.00% 10V IG602 = 8-759-925-74 IC SN74HCO4ANS-E05
C617: 1-126-935-11 ELECT 470uF = 20.00% 10V
C621 =: 1-164-159-11 CERAMIC 0.1uF 50V < JACK >
C622. = 1-126-935-11 ELECT 470uF = 20.00% 10V
C623 = 1-164-159-11 CERAMIC 0.1uF 50V J600 = 1-507-678-51 JACK (RELAY IN)
J601 1-507-678-51 JACK (RELAY OUT)
C624 = 1-164-159-11 CERAMIC 0.1uF 50V
C625 1-164-159-11 CERAMIC 0.1uF 50V < PHOTO INTERRUPTER >
C626 = 1-164-159-11 CERAMIC 0.1uF 50V
C627. ~—s- 1-164-159-11 CERAMIC 0.1uF 50V PH600 8-719-026-07 PHOTO COUPLER PS2505-1
C631 = 1-164-159-11 CERAMIC 0.1uF 50V PH601 8-719-026-07 PHOTO COUPLER PS2505-1
< CONNECTOR > < TRANSISTOR >
CN600 1-568-426-11 CONNECTOR, D-SUB 9P Q600 8-729-230-45 TRANSISTOR 2802458TP-YGR
CN602 1-573-566-11 CONNECTOR, D-SUB(ANGLE TYPE)9P Q601 8-729-230-45 TRANSISTOR 2SC2458TP-YGR
CN605 1-569-815-11 CONNECTOR, BOARD TO BOARD 21P Q602 8-729-140-96 TRANSISTOR § 28D774-T-34
Q603 8-729-140-96 TRANSISTOR — 28D774-T-34
Q604 8-729-140-96 TRANSISTOR § 2SD774-T-34
Q605 8-729-230-45 TRANSISTOR 2SC2458TP-YGR
Q606 8-729-230-45 TRANSISTOR 2802458TP-YGR
