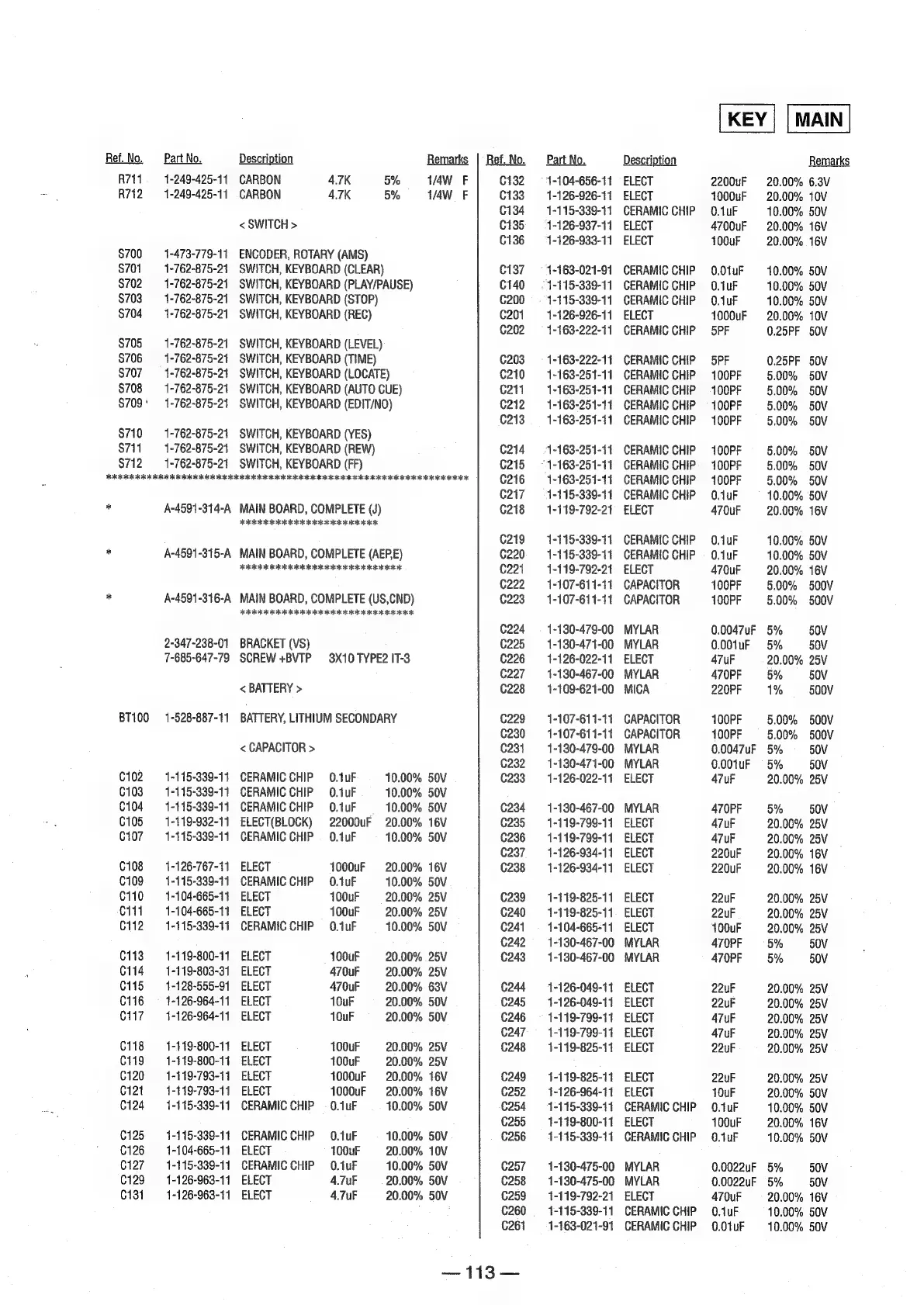

Sony MDS-E12 - SECTION 7 ELECTRICAL PARTS LIST; < CAPACITOR >; < CONNECTOR >; < DIODE >

Ref.No. Part No. Description Remarks | Ref.No. Part No. Description Remarks
R711. 1-249-425-11 CARBON 4.7K 5% V/4W F C132 =: 1-104-656-11 ELECT 2200uF 20.00% 6.3V
R712 1-249-425-11 CARBON 4.7K 5% 1/4W F C133 = 1-126-926-11 ELECT 1000uF 20.00% 10V
C134 = 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
< SWITCH > C135 =: 1-126-937-11 ELECT 4700uF 20.00% 16V
C136) 0s: 1-126-933-11 ELECT 100uF 20.00% .16V
$700 = 1-473-779-11 ENCODER, ROTARY (AMS)
$701 1-762-875-21 SWITCH, KEYBOARD (CLEAR) C137 =: 1-163-021-91 CERAMIC CHIP O0.01uF 10.00% 50V
$702 _1-762-875-21 SWITCH, KEYBOARD (PLAY/PAUSE) C140) =. 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
$703. 1-762-875-21 SWITCH, KEYBOARD (STOP) C200 =. 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
$704 —_1-762-875-21 SWITCH, KEYBOARD (REC) C201 1-126-926-11 ELECT 1000uF 20.00% 10V
C202 = 1-163-222-11 CERAMIC CHIP 5PF 0.25PF 50V
$705 —1-762-875-21 SWITCH, KEYBOARD (LEVEL)
$706 = 1-762-875-21 SWITCH, KEYBOARD (TIME) C203 = 1-163-222-11 CERAMIC CHIP 5PF 0.25PF 50V
$707
—_1-762-875-21
SWITCH,
KEYBOARD
(LOCATE)
C210
=
1-163-251-11
CERAMIC
CHIP
100PF
5.00%
50V
$708 1-762-875-21 SWITCH, KEYBOARD (AUTO CUE) C211 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
$709: 1-762-875-21 SWITCH, KEYBOARD (EDIT/NO) C212 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C213 = 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
$710 1-762-875-21 SWITCH, KEYBOARD (YES)
$711 1-762-875-21 SWITCH, KEYBOARD (REW) C214 =: 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
$712 1-762-875-21 SWITCH, KEYBOARD (FF) C215 =. 1-163-251-11 CERAMIC CHIP) 100PF 5.00% 50V
TR SR ESR OR 2B AR SA OR AARC AB 2 OR KOE KR EO OA A I OR A RR RRR HOR ACR HO RR aR IE OR C216 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V
C217 ==. 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
* A-4591-314-A MAIN BOARD, COMPLETE (J) C218 1-119-792-21 ELECT 470uF 20.00% 16V
Seok Ro oe ok OK a a eK A ok ER KK
C219 1-115-339-11 CERAMIC CHIP O.1uF 10.00% 50V
* A-4591-315-A MAIN BOARD, COMPLETE (AEPE) C220 1-115-339-11 CERAMIC CHIP O.1uF 10.00% 50V
ASHES ESSE EEE: C221 1-119-792-21 ELECT 470uF 20.00% 16V
C222 1-107-611-11 CAPACITOR 100PF ~ 5.00% 500V
* A-4591-316-A MAIN BOARD, COMPLETE (US,CND) C223 1-107-611-11 CAPACITOR 100PF 5.00% 500V
2 2 2 2 2 2 oe oe oo oo a a oo aK
C224 1-130-479-00 MYLAR 0.0047uF 5% 50V
2-347-238-01 BRACKET (VS) (225 1-130-471-00 MYLAR 0.001uF 5% 50V
7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 C226 1-126-022-11 ELECT 47uF 20.00% 25V
C227 1-130-467-00 MYLAR 470PF 5% —50V
< BATTERY > C228 —1-109-621-00 MICA 220PF 1% —500V
BT100 1-528-887-11_ BATTERY, LITHIUM SECONDARY C229. 1-107-611-11 CAPACITOR 100PF 5.00% S00V
C230 1-107-611-11 CAPACITOR 100PF 5.00% 500V
< CAPACITOR > C231 1-180-479-00 MYLAR 0.0047uF 5% 50V
C232 1-130-471-00 MYLAR 0.001uF 5% 50V
C102 1-115-339-11 CERAMIC CHIP O.fuF 10.00% 50V C233 1-126-022-11 ELECT 47uF 20.00% 25V
C103 1-115-339-11 CERAMIC CHIP O.tuF 10.00% 50V
C104 1-115-339-11 CERAMIC CHIP O.tuF — 10.00% 50V C234 1-130-467-00 MYLAR 470PF 5% ~©—50V
C105 -1-119-932-11 ELECT(BLOCK) 22000uF 20.00% 16V C235 1-119-799-11 ELECT 47uF 20.00% 25V
C107 1-115-839-11 CERAMIC CHIP O.tuF 10.00% 50V C236 1-119-799-11 ELECT 47uF 20.00% 25V
C237 1-126-934-11 ELECT 220uF 20.00% 16V
C108 1-126-767-11 ELECT 1000uF 20.00% 16V C238 1-126-934-11 ELECT 220uF 20.00% 16V
C109 1-115-839-11 CERAMICCHIP O.tuF 10.00% 50V
C110 1-104-665-11 ELECT 100uF 20.00% 25V C239 1-119-825-11 ELECT 22uF —-20.00% 25V
C111 1-104-665-11 ELECT 100uF 20.00% 25V C240 1-119-825-11. ELECT 22uF 20.00% 25V
C112 1-115-339-11 CERAMICCHIP O.tuF 10.00% 50V C241 1-104-865-11 ELECT 100uF 20.00% 25V
242 1-130-467-00 MYLAR 470PF 5% ~=—50V
C113 1-119-800-11 ELECT 100uF 20.00% 25V 6243 1-130-467-00 MYLAR A70PF 5% = -5OV
C114 1-119-803-31 ELECT 470uF 20.00% 25V
C115 1-128-555-91 ELECT 470uF 20.00% 63V C244 1-126-049-11 ELECT 22uF 20.00% 25V
C116 © 1-126-964-11_ ELECT 10uF 20.00% 50V C245 1-126-049-11. ELECT 22uF 20.00% 25V
C117 1-126-964-11 ELECT 10uF 20.00% 50V C246 1-119-799-11 ELECT 47uF 20.00% 25V
C247 1-119-799-11 ELECT 47uF 20.00% 25V
C118 1-119-800-11 ELECT 100uF 20.00% 25v C248 1-119-825-11 ELECT 22uF 20.00% 25V
C119 1-119-800-11 ELECT 100uF 20.00% 25V
C120 1-119-793-11 ELECT 1000UF 20.00% 16V C249 1-119-825-11 ELECT 22uF 20.00% 25V
C121 1-119-793-11 ELECT 1000UF 20.00% 16V C252 1-126-964-11_ ELECT 10uF 20.00% SOV
C124 1-115-339-11 CERAMICCHIP O.1uF 10.00% 50V C254 1-115-339-11 CERAMIC CHIP O.1uF —10.00% 50V
C255 1-119-800-11 ELECT 100uF 20.00% 16V
C125 1-115-339-11 CERAMICCHIP O.fuF 10.00% 50V C256 1-115-339-11 CERAMIC CHIP O.tuF 10.00% 50V
C126 1-104-665-11 ELECT 100uF 20.00% 10V
C127 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V C257 1-130-475-00 MYLAR 0.0022uF 5% 50V
C129 1-126-963-11 ELECT 4.7uF 20.00% 50V C258 1-130-475-00 MYLAR 0.0022uF 5% 50V
C131 1-426-963-11 ELECT 4.7uF 20.00% 50V C259 1-119-792-21 ELECT 470uF 20.00% 16V
C260 = 1-115-339-11 CERAMIC CHIP 0.1uF 10.00% 50V
C261 =: 1-163-021-91 CERAMIC CHIP 0.0tuF 10.00% 50V
— 113 —
