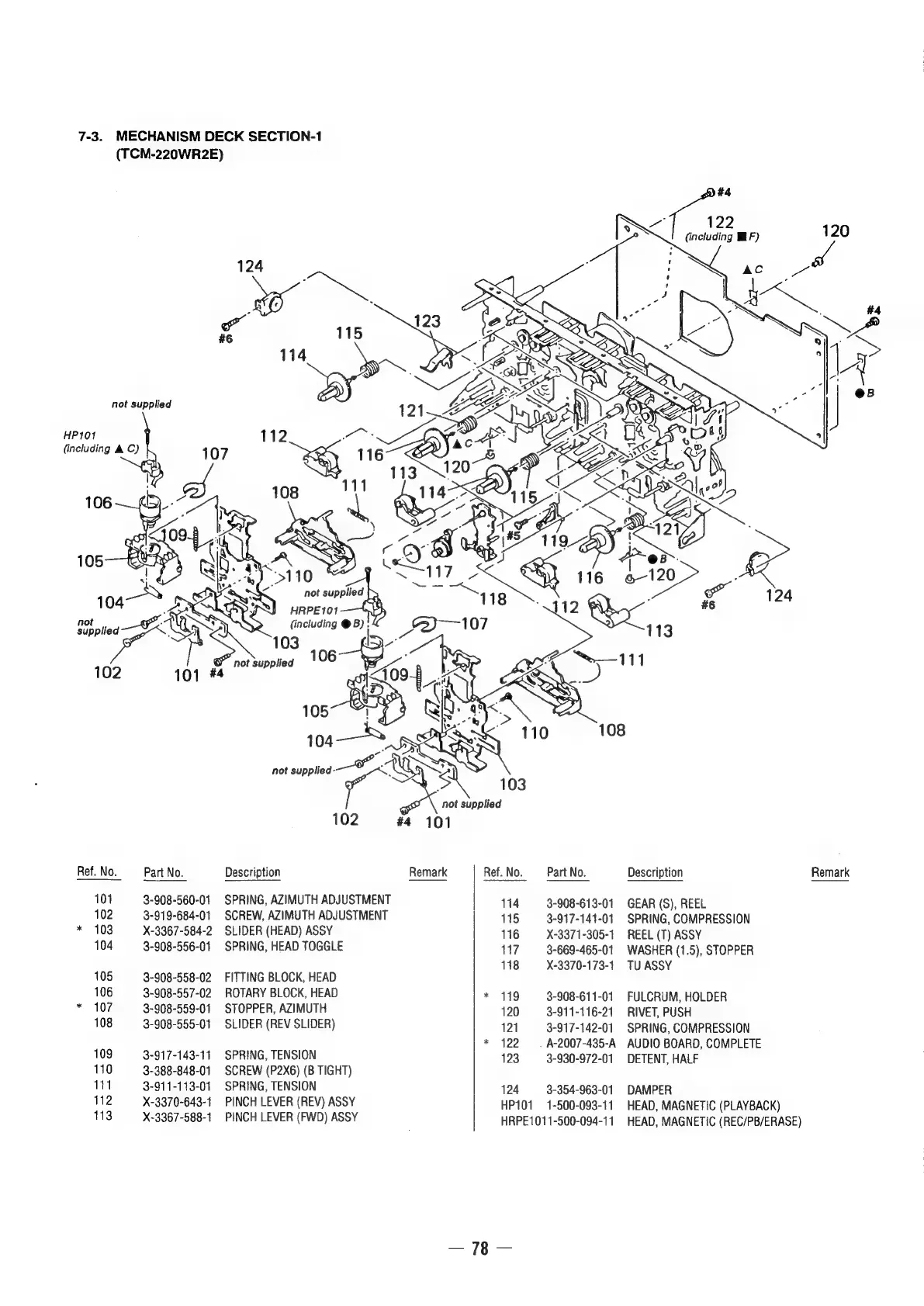

7-3. MECHANISM DECK SECTION-1
(TCM-220WR2E)
not supplied
HP101
(including AC)
not supplied
HRPE101
(including @ B):
103 Boge
not supplied Zt {
105 l
104
not aa ae
102
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-908-560-01 SPRING, AZIMUTH ADJUSTMENT 114 3-908-613-01 GEAR (S), REEL
102 3-919-684-01 SCREW, AZIMUTH ADJUSTMENT 115 3-917-141-01 SPRING, COMPRESSION
* 103 X-3367-584-2 SLIDER (HEAD) ASSY 116 X-3371-305-1 REEL (T) ASSY
104
3-908-556-01
SPRING,
HEAD
TOGGLE
117
3-669-465-01
WASHER
(1.5),
STOPPER
118 X-3370-173-1 TU ASSY
105 3-908-558-02 FITTING BLOCK, HEAD
106
3-908-557-02
ROTARY
BLOCK,
HEAD
*
119
3-908-611-01
FULCRUM,
HOLDER
*
107 3-908-559-01
STOPPER, AZIMUTH
120
3-911-116-21
RIVET, PUSH
108
=
3-908-555-01
SLIDER
(REV
SLIDER)
121
3-917-142-01
SPRING,
COMPRESSION
*
122 —
A-2007-435-A
AUDIO
BOARD,
COMPLETE
109
3-917-143-11
SPRING,
TENSION
123
3-930-972-01
DETENT, HALF
110
3-388-848-01
SCREW (P2X6) (B
TIGHT)
11
3-911-113-01
SPRING, TENSION
124
3-354-963-01
DAMPER
112
X-3370-643-1
PINCH LEVER
(REV)
ASSY
HP101
1-500-093-11
HEAD,
MAGNETIC (PLAYBACK)
113
X-3367-588-1
PINCH
LEVER
(FWD)
ASSY
HRPE1011-500-094-11
HEAD,
MAGNETIC
(REC/PB/ERASE)
