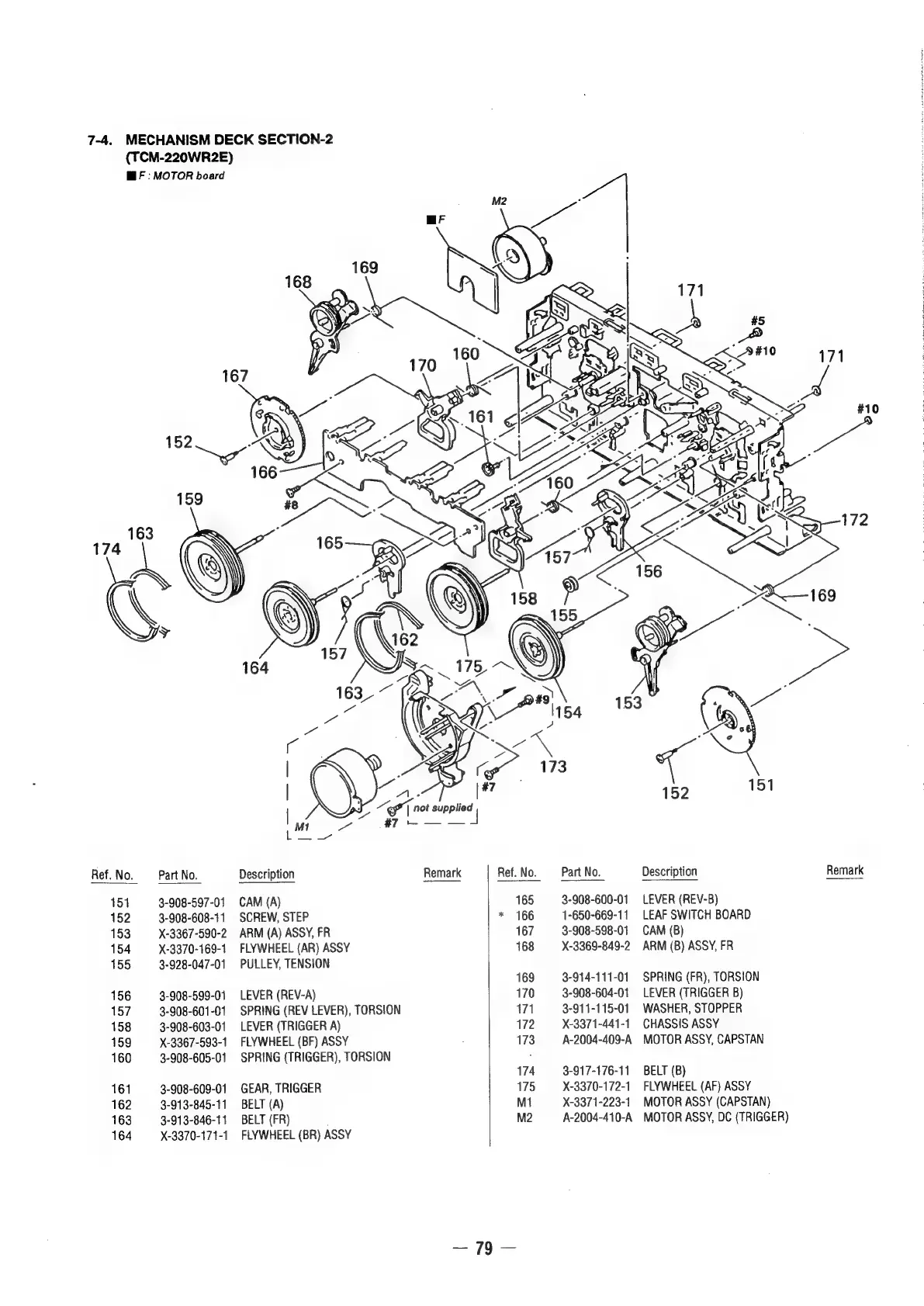

7-4. MECHANISM DECK SECTION-2
(TCM-220WR2E)
MEF : MOTOR board
all - =
Ref. No. Part No. Description
151 3-908-597-01 CAM (A)
152 3-908-608-11 SCREW, STEP
153 X-3367-590-2 ARM (A) ASSY, FR
154 X-3370-169-1 FLYWHEEL (AR) ASSY
155 3-928-047-01 PULLEY, TENSION
156 3-908-599-01 LEVER (REV-A)
157 3-908-601-01 SPRING (REV LEVER), TORSION
158 3-908-603-01 LEVER (TRIGGER A)
159 X-3367-593-1 FLYWHEEL (BF) ASSY
160 3-908-605-01 SPRING (TRIGGER), TORSION
161 3-908-609-01 GEAR, TRIGGER
162 3-913-845-t1 BELT (A)
163 3-913-846-11 BELT (FR)
164 X-3370-171-1 FLYWHEEL (BR) ASSY
“A.
“~< t supplied
| J eat not supp: 7
|
Remark Ref. No. Part No. Description Remark
165 3-908-600-01 LEVER (REV-B)
* 166 1-650-669-11 LEAF SWITCH BOARD
167 3-908-598-01 CAM (B)
168 X-3369-849-2 ARM (B) ASSY, FR
169 3-914-111-01 SPRING (FR), TORSION
170 3-908-604-01 LEVER (TRIGGER B)
171 3-911-115-01 WASHER, STOPPER
172 X-3371-441-1 CHASSIS ASSY
173 A-2004-409-A MOTOR ASSY, CAPSTAN
174 3-917-176-11 BELT (B)
175 X-3370-172-1 FLYWHEEL (AF) ASSY
M1 X-3371-223-1 MOTOR ASSY (CAPSTAN)
M2 A-2004-410-A MOTOR ASSY, DC (TRIGGER)
