Sony MHC-D7 - Page 60

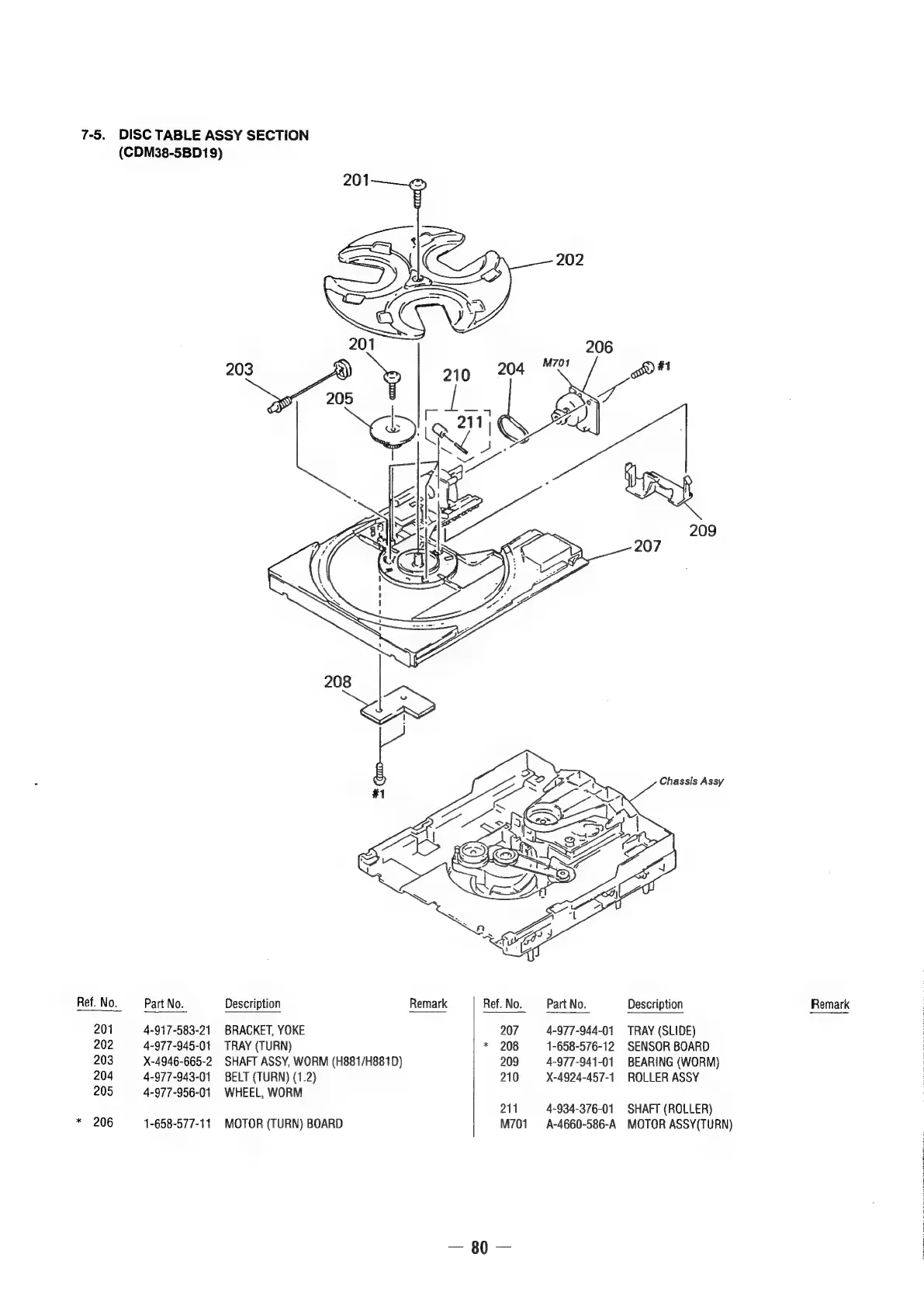

7-5. DISC TABLE ASSY SECTION
(CDM38-5BD19)
202
206
Pe) #1
S
209
Chassis Assy
Ref. No. Part No. Description Remark Ref. No. Part No. Description
201 4-917-583-21 BRACKET, YOKE 207 4-977-944-01 TRAY (SLIDE)
202 4-977-945-01 TRAY (TURN) * 208 1-658-576-12 SENSOR BOARD
203 X-4946-665-2 SHAFT ASSY, WORM (H881/H881D) 209 4-977-941-01 BEARING (WORM)
204 4-977-943-01 BELT (TURN) (1.2) 210 X-4924-457-1 ROLLER ASSY
205 4-977-956-01 WHEEL, WORM
211 4-934-376-01 SHAFT (ROLLER)
* 206 1-658-577-11 MOTOR (TURN) BOARD M701 = A-4660-586-A MOTOR ASSY(TURN)
Remark
