Sony MHC-D7 - Page 61

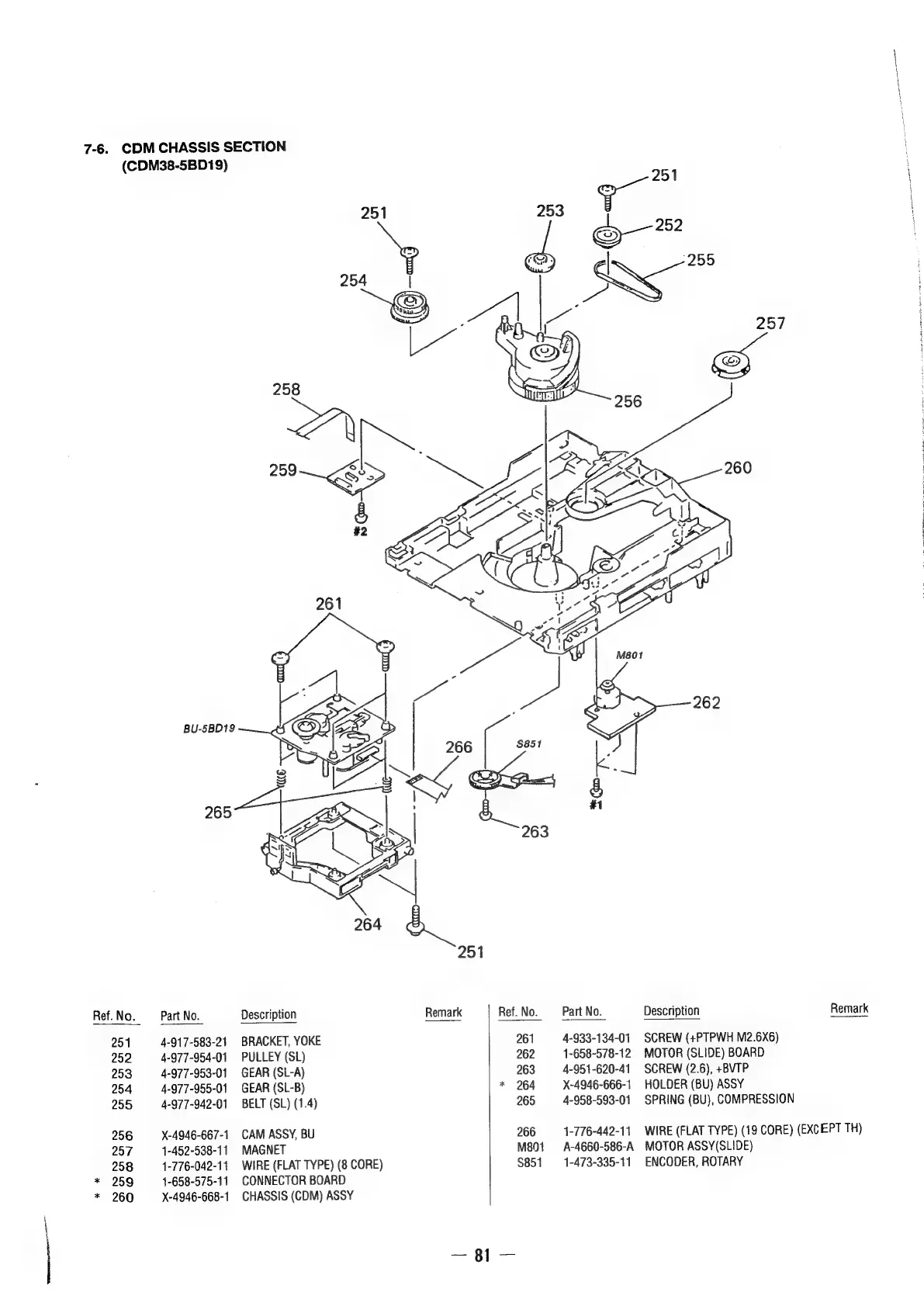

7-6. CDM CHASSIS SECTION
(CDM38-5BD19)
Ref. No. Part No. Description
251 4-917-583-21 BRACKET, YOKE
252 4-977-954-01 PULLEY (SL)
253 4-977-953-01 GEAR (SL-A)
254 4-977-955-01 GEAR (SL-B)
255 4-977-942-01 BELT (SL) (1.4)
256 X-4946-667-1 CAM ASSY, BU
257 1-452-538-11 MAGNET
258 1-776-042-11 WIRE (FLAT TYPE) (8 CORE)
259 4-658-575-11 CONNECTOR BOARD
260 X-4946-668-1 CHASSIS (CDM) ASSY
Remark
Ref.No.
Part
No.
Description
Remark
261 4-933-134-01 SCREW (+PTPWH M2.6X6)
262 1-658-578-12 MOTOR (SLIDE) BOARD
263 4-951-620-41 SCREW (2.6), +BVTP
* 264 X-4946-666-1 HOLDER (BU) ASSY
265 4-958-593-01 SPRING (BU), COMPRESSION
266
4-776-442-11
WIRE
(FLAT
TYPE)
(19
CORE)
(EXC
EPT
TH)
M801 A-4660-586-A MOTOR ASSY(SLIDE)
$851 1-473-335-11 ENCODER, ROTARY
