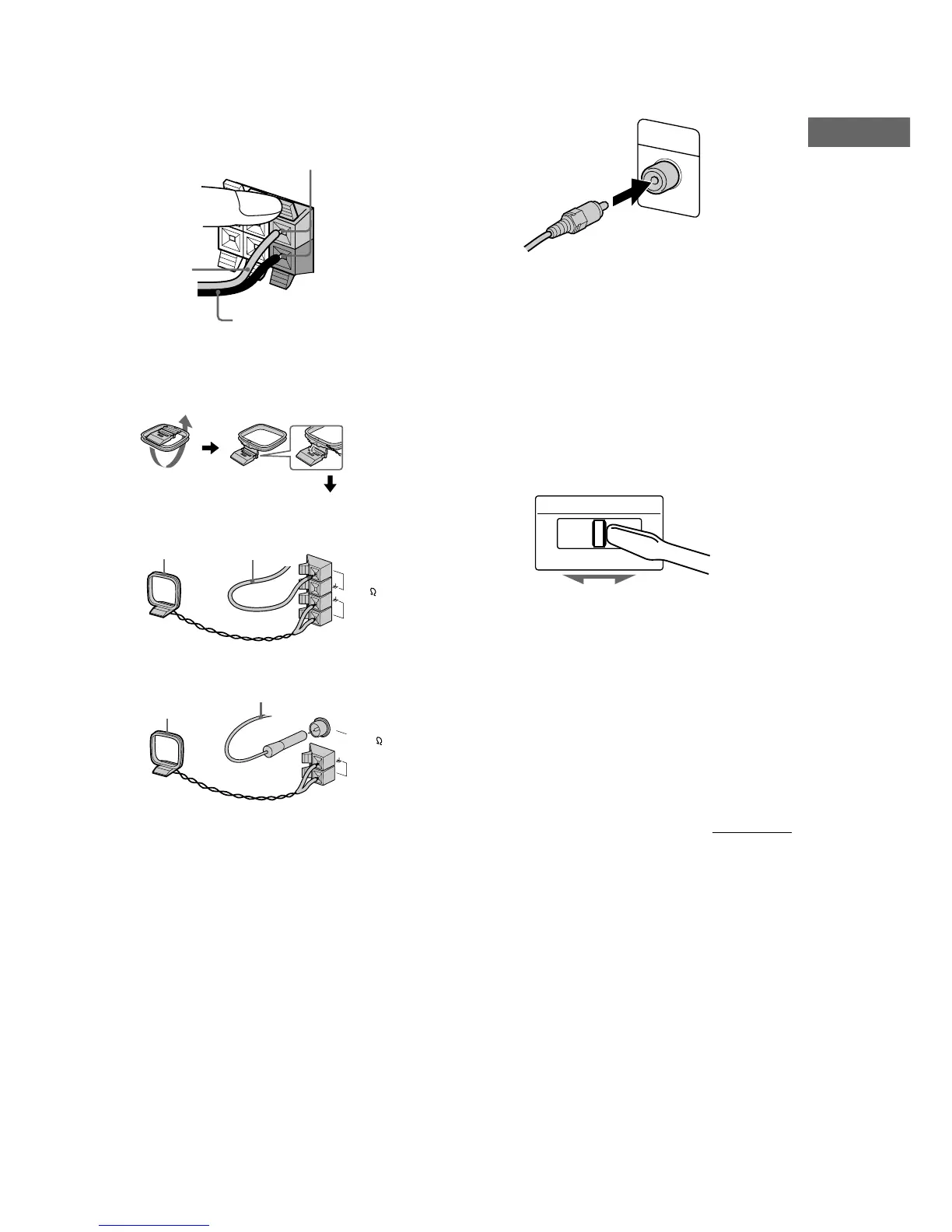

Getting Started
11
VIDEO
OUT
5 Connect the video input jack of your TV
to the VIDEO OUT jack with the video
cable.
When using a TV
Turn on the TV and select the video input so you can
view the pictures from this system.
Tip
For even higher quality video images, you can use an
optional S-video cable to connect the S VIDEO input
jack on your TV to the S VIDEO OUT jack.
6 For models with a voltage selector, set
VOLTAGE SELECTOR to the position of
your local power line voltage.
7 Connect the power cord to a wall outlet.
The demonstration appears in the display.
When you press ?/1, the system turns on
and the demonstration automatically ends.
If the supplied adaptor on the plug does not
fit your wall outlet, detach it from the plug
(only for models equipped with an adaptor).
3 Connect the center speaker.
(MHC-DP1000D only)
Connect the speaker cords to the CENTER
SPEAKER jacks.
4 Connect the FM/AM antennas.
Set up the AM loop antenna, then connect
it.
The plug of the FM antenna may vary according
to the model you purchased.
R
L
+
–
+
Insert only the stripped portion.
Black/Stripe (#)
Gray/Solid (3)
220V 230-240V120V
VOLTAGE SELECTOR
Extend the FM lead
antenna horizontally.
AM loop antenna
Extend the FM lead
antenna horizontally.
AM loop antenna
Jack type B
FM75
AM
F
M
7
5
A
M
C
O
A
X
IA
L
Jack type A
continued
