Chapter 1: Setting Up
EN
5
FM 75
Ω
AM
y

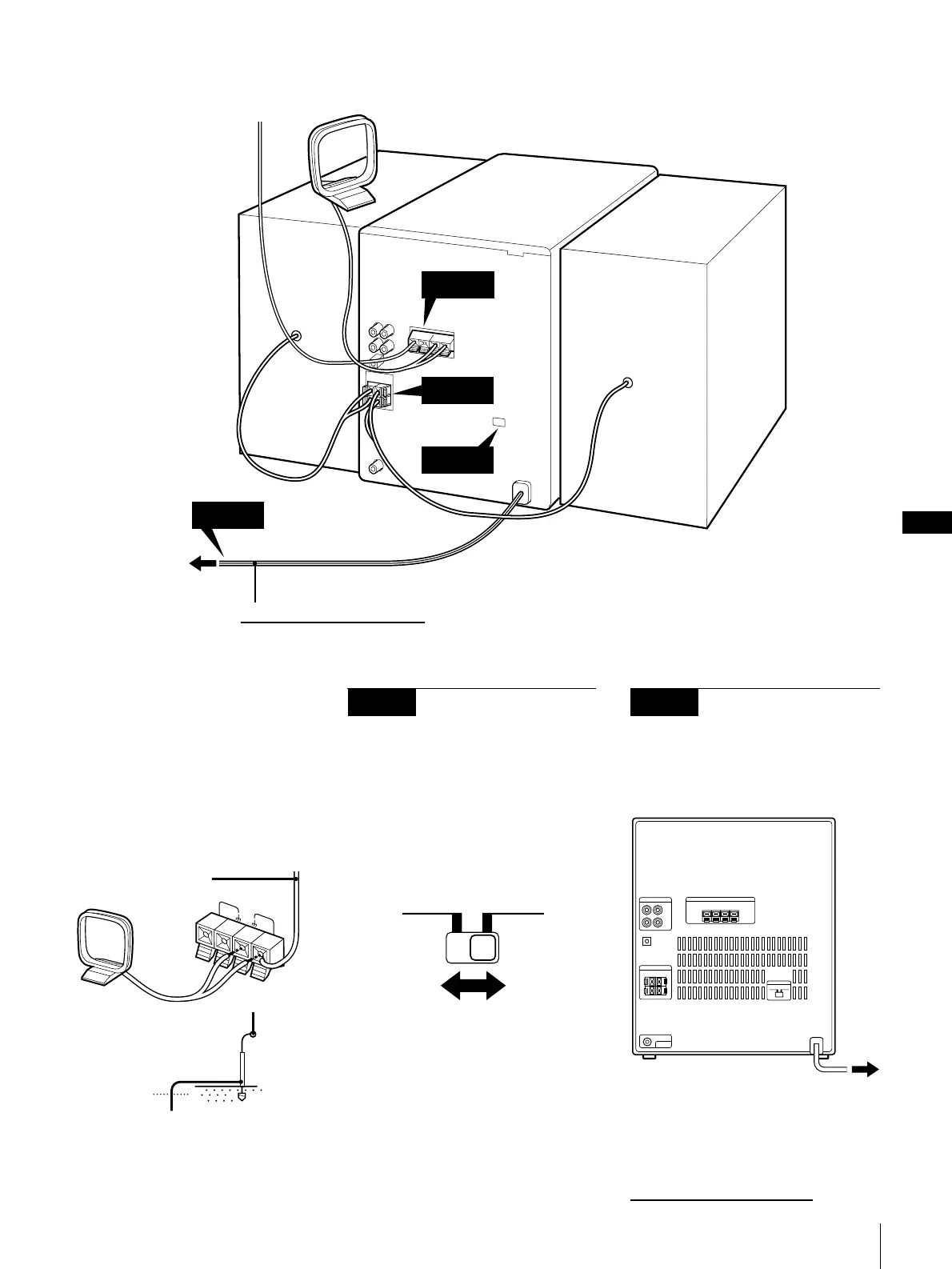

To improve the AM reception
After you connect the AM antenna, connect
a 6- to 15-meter insulated wire to the AM
terminal. Connect the y terminal to earth.
Important
Ground the external antenna against
lightning from the y terminal. To prevent a
gas explosion, do not connect the ground
wire to a gas pipe.
STEP 3
Adjusting the
Operating Voltage (for
customers outside
Malaysia and Singapore)
Before connecting the power, set
VOLTAGE SELECTOR to the position of
the local power line voltage.
AM loop antenna
(supplied)
STEP 1
STEP 2
STEP 4
STEP 3
Right speaker
Left speaker
FM lead antenna
(supplied)
to a wall outlet
!Do this connection last!
Connecting the
Power
Connect the AC Power cord to a wall outlet
after you have made all the above
connections.
STEP 4
110
-
120V
VOLTAGE SELECTOR
220
-
240V
to a wall outlet
continue to next page ➔
Ground wire
(not supplied)
Insulated wire
(not supplied)
Screw clamp
To Next Page
