Sony MHC-V11 - TOP COVER BLOCK

MHC-V11
7

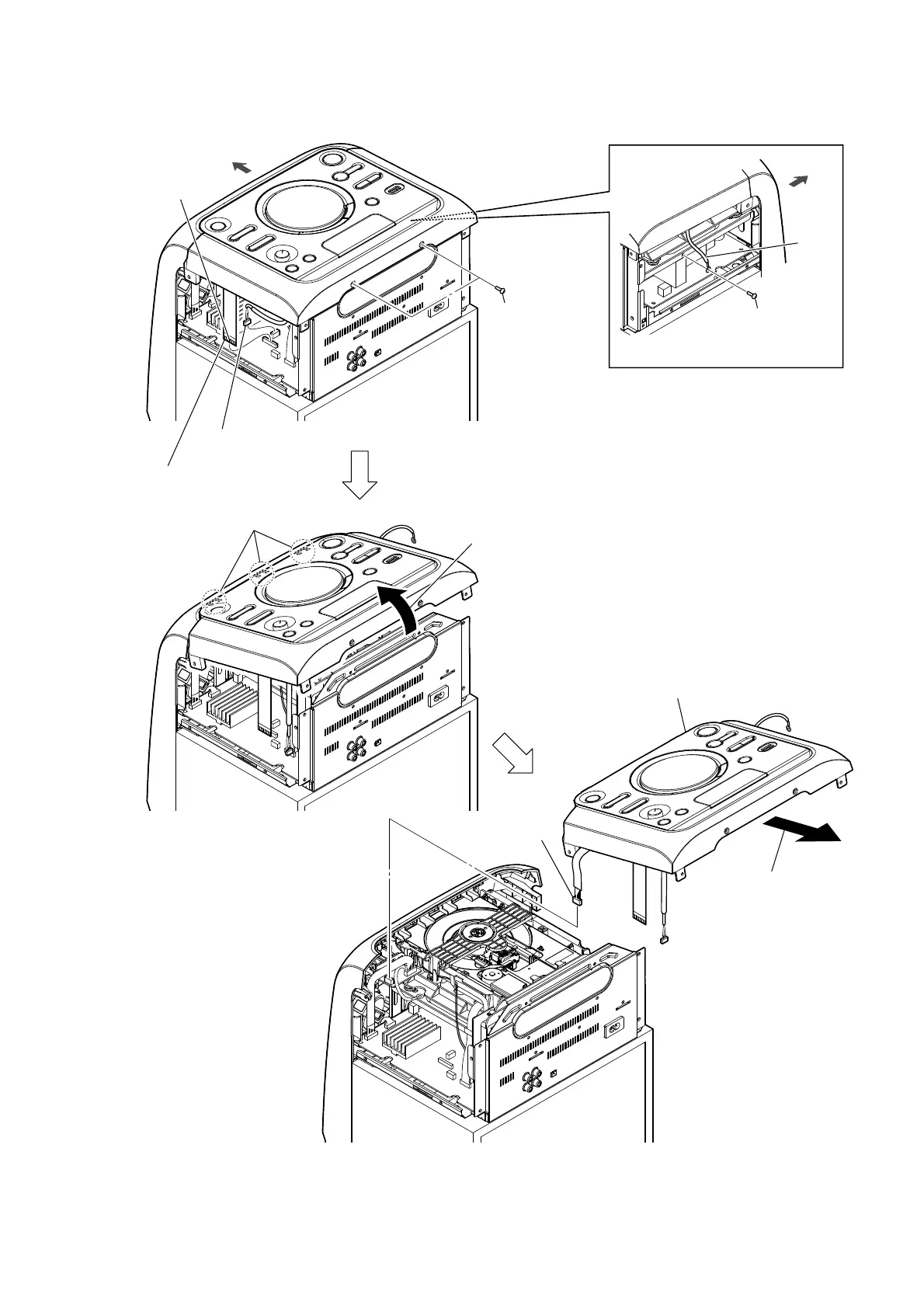

2-3. TOP COVER BLOCK
2 connector (4P)
(XP7)
1 FFC (20P)
(XP10)
front side
3 two screws
4 screw
– Left view –
front side
6 three claws
5
Lift up the top cover block
in the direction of the arrow.
8 connector (5P)
(XP6)
9 top cover block
7 Remove the top cover
block in the direction
of the arrow.
wire
This side is the
terminal side.
